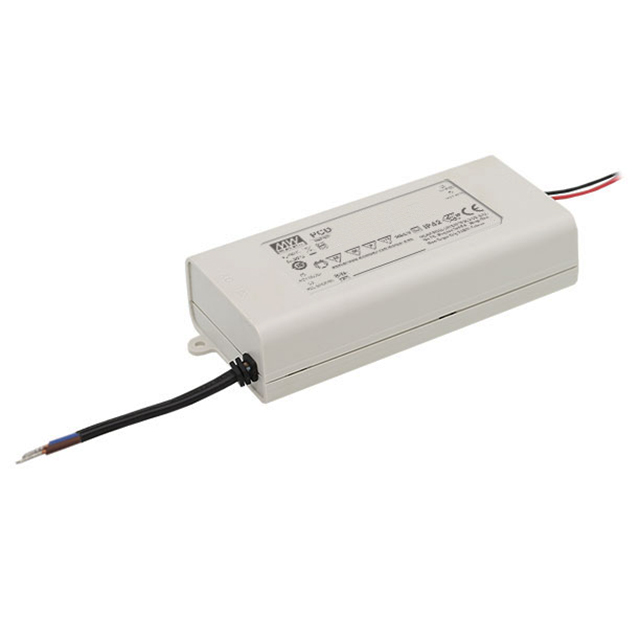

PCD-60 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
LED DRVR CC AC/DC 50-86V 700MA
| Part | Mounting Type | Voltage - Isolation | Features | Voltage - Input (Min) [Min] | Approval Agency | Power (Watts) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Current - Output (Max) [Max] | Topology | Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Ratings | Dimming | Termination Style | Efficiency | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Chassis Mount | 3750 VDC | OTP SCP | 180 VAC | CB CE ENEC | 60 W | 5.04 " | 2.36 " | 1.24 " | 31.5 mm | 60 mm | 128 mm | 700 mA | AC DC Converter | Constant Current | 45 °C | -30 ░C | 1 | IP42 | TRIAC | Wire Leads | 86 % | 295 VAC |
MEAN WELL USA Inc. | Chassis Mount | 3750 VDC | OTP SCP | 180 VAC | CB CE ENEC | 60 W | 5.04 " | 2.36 " | 1.24 " | 31.5 mm | 60 mm | 128 mm | 2 A | AC DC Converter | Constant Current | 45 °C | -30 ░C | 1 | IP42 | TRIAC | Wire Leads | 85 % | 295 VAC |
