78384 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

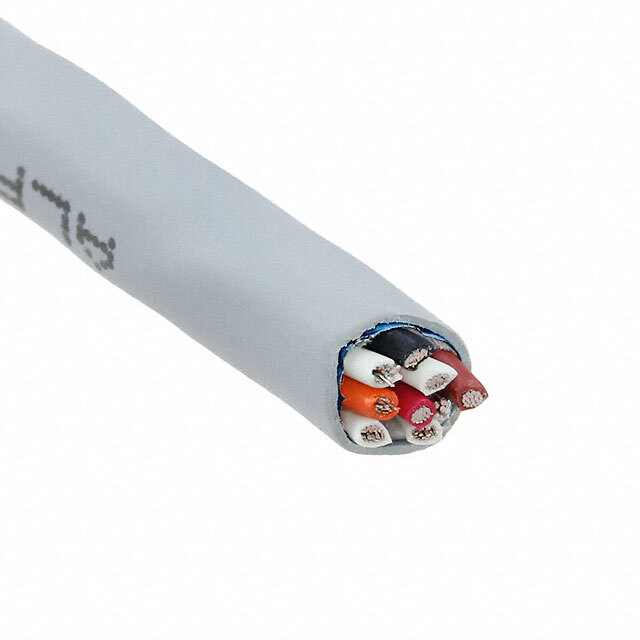

MULTI-PAIR 8COND 22AWG
| Part | Shield Material | Shield Coverage | Voltage | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Features | Length | Length | Shield Type | Jacket (Insulation) Material | Cable Type | Ratings | Conductor Material | Conductor Insulation | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 100 % | 300 VDC | 22 AWG | 80 °C | -40 C | Biological Compatibility Drain Wire Rip Cord | 304.8 m | 1000 ft | Braid Foil | Polyphenylene Ether Modified (mPPE) | Multi-Pair | ISO 10993 UL Style 21460 | Copper Tinned | Polyphenylene Ether Modified (mPPE) | 8 | 34 AWG | 19 | 0.381 mm | 0.015 in | Slate | 0.248 " | 6.3 mm |
