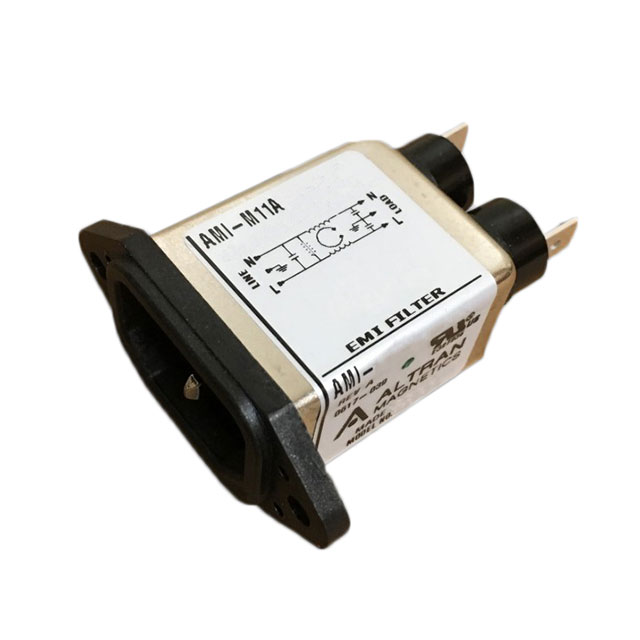

AMI-M11J Series

Catalog

LINE FILTER 250VAC 3A CHASSIS

Part	Inductance	Configuration	Mounting Type	Frequency - Operating [Max]	Frequency - Operating [Min]	Termination Style	Filter Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated AC	Current	Applications
Altran Magnetics, LLC AMI-M11J-3-3-B-2	1.76 mH	Single Stage	Chassis Mount	60 Hz	50 Hz	Wire Leads	Single Phase	40 °C	-10 °C	250 V	3 A	General Purpose
Altran Magnetics, LLC AMI-M11J-3-3-B-1	1.76 mH	Single Stage	Chassis Mount	60 Hz	50 Hz	Wire Leads	Single Phase	40 °C	-10 °C	250 V	3 A	General Purpose
Altran Magnetics, LLC AMI-M11J-3-1-B-1	1.86 mH	Single Stage	Chassis Mount	60 Hz	50 Hz	Wire Leads	Single Phase	40 °C	-10 °C	250 V	1 A	General Purpose
Altran Magnetics, LLC AMI-M11J-3-10-B-1	495 µH	Single Stage	Chassis Mount	60 Hz	50 Hz	Wire Leads	Single Phase	40 °C	-10 °C	250 V	10 A	General Purpose
Altran Magnetics, LLC AMI-M11J-1-20-B-1	440 µH	Single Stage	Chassis Mount	60 Hz	50 Hz	Quick Connect	Single Phase	40 °C	-10 °C	250 V	20 A	General Purpose

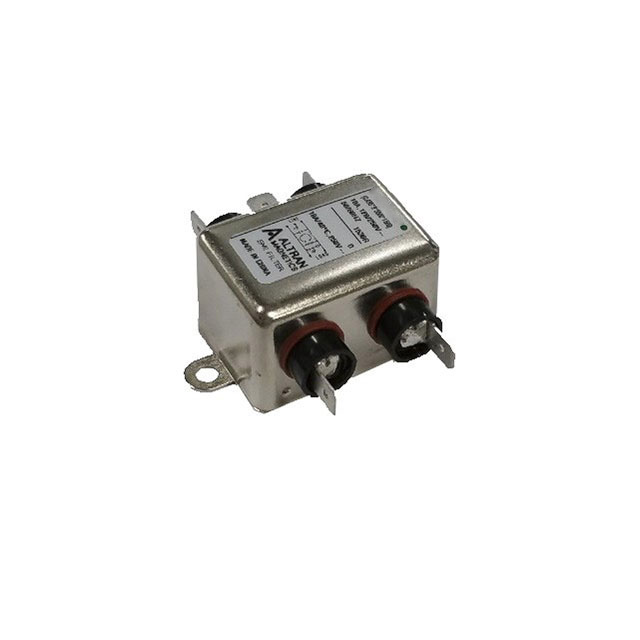

Altran Magnetics, LLC AMI-M11J-1-2-B-1	539 µH	Single Stage	Chassis Mount	60 Hz	50 Hz	Quick Connect	Single Phase	40 °C	-10 °C	250 V	2 A	General Purpose
Altran Magnetics, LLC AMI-M11J-1-2-B-2	539 µH	Single Stage	Chassis Mount	60 Hz	50 Hz	Quick Connect	Single Phase	40 °C	-10 °C	250 V	2 A	General Purpose

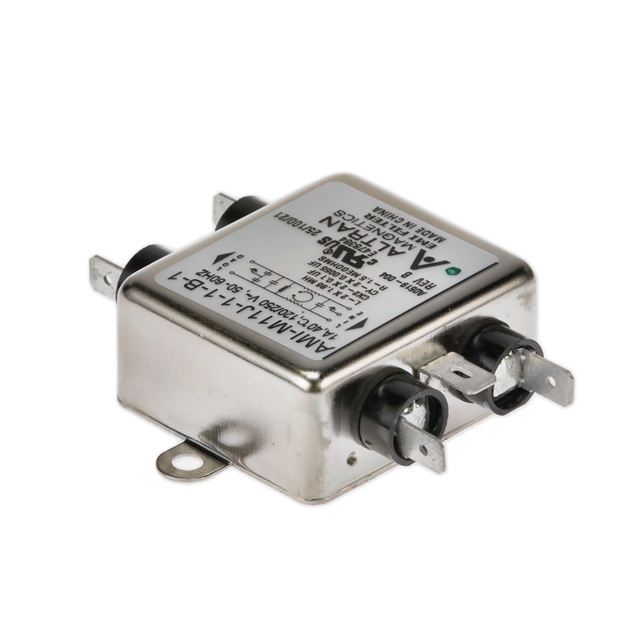

Altran Magnetics, LLC AMI-M11J-1-1-B-1	1.86 mH	Single Stage	Chassis Mount	60 Hz	50 Hz	Quick Connect	Single Phase	40 °C	-10 °C	250 V	1 A	General Purpose
Altran Magnetics, LLC AMI-M11J-1-3-B-2	1.76 mH	Single Stage	Chassis Mount	60 Hz	50 Hz	Quick Connect	Single Phase	40 °C	-10 °C	250 V	3 A	General Purpose
Altran Magnetics, LLC AMI-M11J-1-10-B-2	495 µH	Single Stage	Chassis Mount	60 Hz	50 Hz	Quick Connect	Single Phase	40 °C	-10 °C	250 V	10 A	General Purpose
