R11418 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

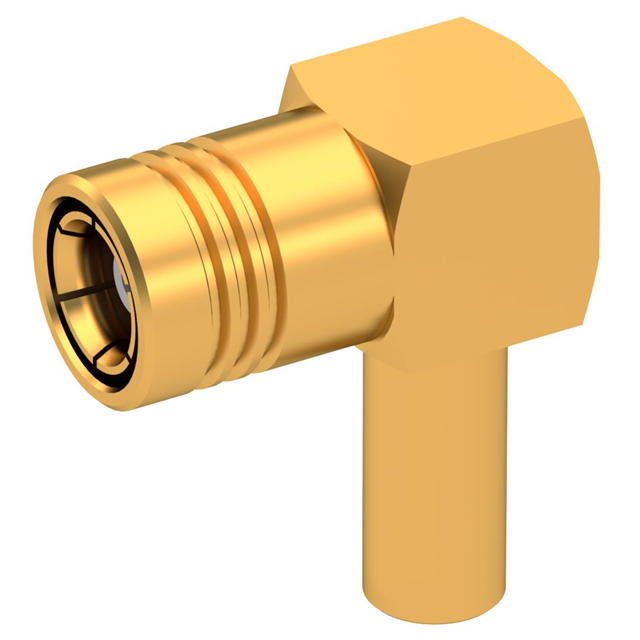

SMB F RA F CR 2/50 C100
| Part | Dielectric Material | Includes | Voltage Rating | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Material | Body Finish | Center Contact Material | Housing Color | Shield Termination | Mounting Type | Connector Style | Contact Termination | Frequency - Max [Max] | Number of Ports | Fastening Type | Impedance | Connector Type | Cable Group | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 1 Connector 1 End Cap | 250 V | 500 | -65 ░C | 165 °C | Gold | Brass | Gold | Beryllium Copper | Gold | Crimp | Free Hanging (In-Line) Right Angle | SMB | Crimp | 4 GHz | 1 | Snap-On | 50 Ohms | Female Socket Plug | 196 | RG-178 |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 1 Connector 1 End Cap | 335 V | 500 | -65 ░C | 165 °C | Gold | Brass | Gold | Beryllium Copper | Gold | Crimp | Free Hanging (In-Line) Right Angle | SMB | Crimp | 4 GHz | 1 | Snap-On | 50 Ohms | Female Socket Plug | RD-316 | |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 1 Connector 1 End Cap | 335 V | 500 | -65 ░C | 165 °C | Gold | Brass | Gold | Beryllium Copper | Gold | Crimp | Free Hanging (In-Line) Right Angle | SMB | Crimp | 4 GHz | 1 | Snap-On | 50 Ohms | Female Socket Plug | RG-174 RG-179 RG-316 |
