9GA1212 Series

Catalog

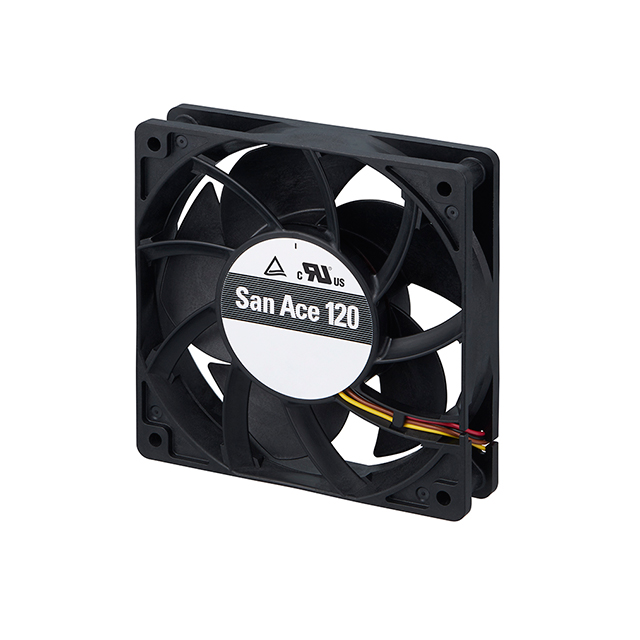

FAN AXIAL 120X25.4MM 12VDC WIRE

Part	Material - Blade	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Material - Frame	Power (Watts)	Bearing Type	Voltage - Rated	Termination	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Noise	Features	Static Pressure	Static Pressure	Air Flow	Air Flow	RPM	Fan Type	Width [y]	Size / Dimension [z]	Size / Dimension [x]
Sanyo Denki America Inc. 9GA1212P4S0011	Plastic	0.61 A	10.2 VDC	13.8 VDC	Varies Based on Temperature	Plastic	7.32 W	Ball	12 VDC	4 Wire Leads	0.617 lb	280 g	-20 ░C	70 °C	cURus TUV	54 dB	PWM Control Speed Sensor (Tach)	1.044 in H2O	260 Pa	3.17 mł/min	113.1 CFM	5400 RPM	Tubeaxial	25.4 mm	120 mm	120 mm
Sanyo Denki America Inc. 9GA1212S4001	Plastic	0.61 A	7 V	13.8 VDC	Varies Based on Temperature	Plastic	7.32 W	Ball	12 VDC	3 Wire Leads	0.617 lb	280 g	-20 ░C	70 °C	cURus TUV	54 dB	Speed Sensor (Tach)	1.044 in H2O	260 Pa	3.17 mł/min	113.1 CFM	5400 RPM	Tubeaxial	25.4 mm	120 mm	120 mm
Sanyo Denki America Inc. 9GA1212P4G0011	Plastic	930 mA	10.2 VDC	13.8 VDC	Varies Based on Temperature	Plastic	11.16 W	Ball	12 VDC	4 Wire Leads	0.617 lb	280 g	-20 ░C	70 °C	cURus TUV	57 dB	PWM Control Speed Sensor (Tach)	1.47 in H2O	366.2 Pa	3.76 m³/min	134.3 CFM	6400 RPM	Tubeaxial	25.4 mm	120 mm	120 mm
Sanyo Denki America Inc. 9GA1212G4001	Plastic	930 mA	7 V	13.8 VDC	Varies Based on Temperature	Plastic	11.16 W	Ball	12 VDC	3 Wire Leads	0.617 lb	280 g	-20 ░C	70 °C	cURus TUV	57 dB	Speed Sensor (Tach)	1.47 in H2O	366.2 Pa	3.76 m³/min	134.3 CFM	6400 RPM	Tubeaxial	25.4 mm	120 mm	120 mm
