PBS.2F Series
Manufacturer: LEMO
Beta
⌘K

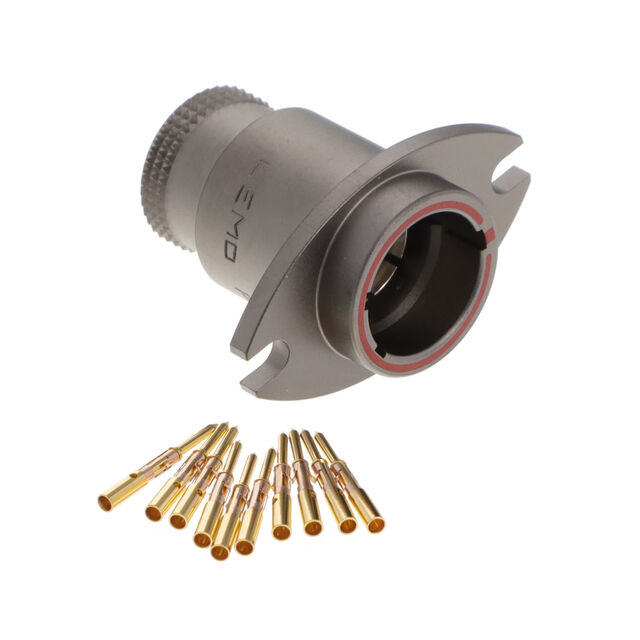

CONN RCPT MALE 10POS GOLD CRIMP
| Part | Orientation | Color | Cable Opening [custom] | Cable Opening [custom] | Number of Positions | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Contact Finish - Mating | Mounting Feature | Primary Material | Connector Type | Termination | Shell Size - Insert | Insert Material | Shell Material | Ingress Protection | Shielding | Applications | Shell Finish | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | S | Gray | 14 mm | 0.551 in | 10 | Push-Pull | 200 °C | -15 °C | UL94 V-0 | Gold | Flange | Metal | Male Pins Receptacle | Crimp | 310 | Polyetheretherketone (PEEK) | Aluminum Alloy | IP67 - Dust Tight Waterproof | Shielded | Aerospace | Nickel | Brass | 1 µm | 39.4 µin | 8 A |
