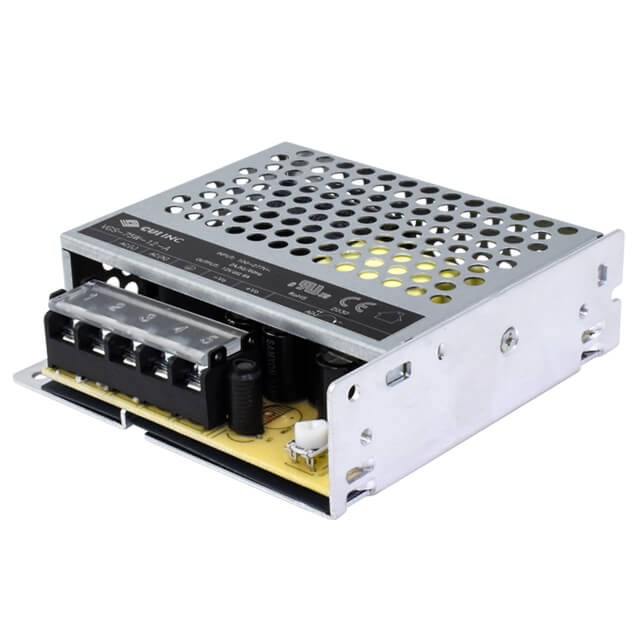

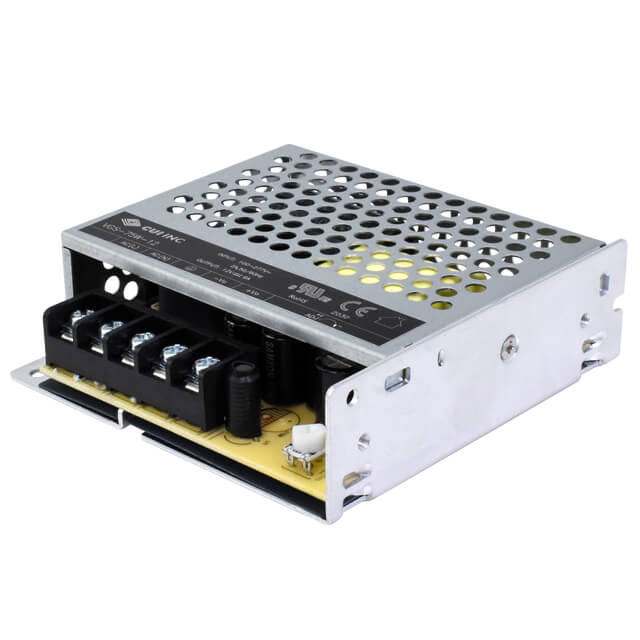

VGS-75W Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 5V 70W
| Part | Standard Number | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Voltage - Isolation | Mounting Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Approval Agency | Power (Watts) | Current - Output 1 [custom] | Type | Voltage - Output 1 | Number of Outputs | Applications | Voltage - Input [Max] | Voltage - Input [Min] | Current - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 60335-1 62368-1 | -30 °C | 70 °C | 85 % | 4000 V | Chassis Mount | 30 mm | 3.82 in | 1.18 in | 97 mm | 99 mm | 3.9 " | CE cURus | 70 W | 14 A | Enclosed | 5 V | 1 | Household Appliances ITE (Commercial) | 305 VAC 430 VDC | 85 VAC 120 VDC | |
CUI Inc. | 60335-1 62368-1 | -30 °C | 70 °C | 87 % | 4000 V | Chassis Mount | 30 mm | 3.82 in | 1.18 in | 97 mm | 99 mm | 3.9 " | CE cURus | 75 W | Enclosed | 15 V | 1 | Household Appliances ITE (Commercial) | 305 VAC 430 VDC | 85 VAC 120 VDC | 5 A | |
 CUI Inc. | 60335-1 62368-1 | -30 °C | 70 °C | 90.5 % | 4000 V | Chassis Mount | 30 mm | 3.82 in | 1.18 in | 97 mm | 99 mm | 3.9 " | CE cURus | 76 W | Conformal Coated Enclosed | 48 V | 1 | Household Appliances ITE (Commercial) | 305 VAC 430 VDC | 85 VAC 120 VDC | 1.6 A | |
CUI Inc. | 60335-1 62368-1 | -30 °C | 70 °C | 87 % | 4000 V | Chassis Mount | 30 mm | 3.82 in | 1.18 in | 97 mm | 99 mm | 3.9 " | CE cURus | 72 W | Enclosed | 12 V | 1 | Household Appliances ITE (Commercial) | 305 VAC 430 VDC | 85 VAC 120 VDC | 6 A | |
CUI Inc. | 60335-1 62368-1 | -30 °C | 70 °C | 89 % | 4000 V | Chassis Mount | 30 mm | 3.82 in | 1.18 in | 97 mm | 99 mm | 3.9 " | CE cURus | 76 W | Enclosed | 24 V | 1 | Household Appliances ITE (Commercial) | 305 VAC 430 VDC | 85 VAC 120 VDC | 3.2 A | |
CUI Inc. | 60335-1 62368-1 | -30 °C | 70 °C | 90.5 % | 4000 V | Chassis Mount | 30 mm | 3.82 in | 1.18 in | 97 mm | 99 mm | 3.9 " | CE cURus | 76 W | Enclosed | 48 V | 1 | Household Appliances ITE (Commercial) | 305 VAC 430 VDC | 85 VAC 120 VDC | 1.6 A | |
CUI Inc. | 60335-1 62368-1 | -30 °C | 70 °C | 89 % | 4000 V | Chassis Mount | 30 mm | 3.82 in | 1.18 in | 97 mm | 99 mm | 3.9 " | CE cURus | 76 W | Conformal Coated Enclosed | 24 V | 1 | Household Appliances ITE (Commercial) | 305 VAC 430 VDC | 85 VAC 120 VDC | 3.2 A |
