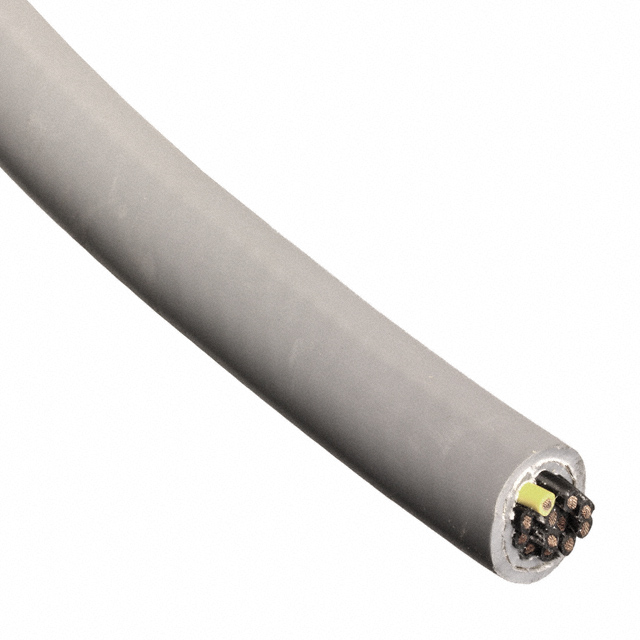

65612CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 12COND 16AWG SHLD
| Part | Cable Type | Conductor Insulation | Length [x] | Length [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Conductor Material | Ratings | Shield Material | Shield Coverage | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Shield Type | Jacket Color | Number of Conductors | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 30.5 m | 100 ft | 1.321 mm | 0.052 in | 30 AWG | 26 | 600 V | Copper Bare | ISO 10993 UL Style 2587 | Copper Tinned | 85 % | Poly-Vinyl Chloride (PVC) | 0.64 " | 16.26 mm | 16 AWG | Braid | Slate | 12 | Biological Compatibility |
ALPHA WIRE | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ' | 1.321 mm | 0.052 in | 30 AWG | 26 | 600 V | Copper Bare | ISO 10993 UL Style 2587 | Copper Tinned | 85 % | Poly-Vinyl Chloride (PVC) | 0.64 " | 16.26 mm | 16 AWG | Braid | Slate | 12 | Biological Compatibility |
