1986469 Series

Catalog

TSB2000K05DSHT=EUROPA BL,14.5M

Part	Terminal Screw Material	Bottom Termination	Material - Insulation	Operating Temperature	Pitch [x]	Pitch [x]	Number of Circuits	Number of Wire Entries	Barrier Type	Top Termination	Voltage Rating	Mounting Type	Terminal Block Type	Terminal Screw Finish	Material Flammability Rating	Current Rating (Amps)	Color	Wire Gauge [Min]	Wire Gauge [Max]	Number of Rows	Number of Circuits [custom]

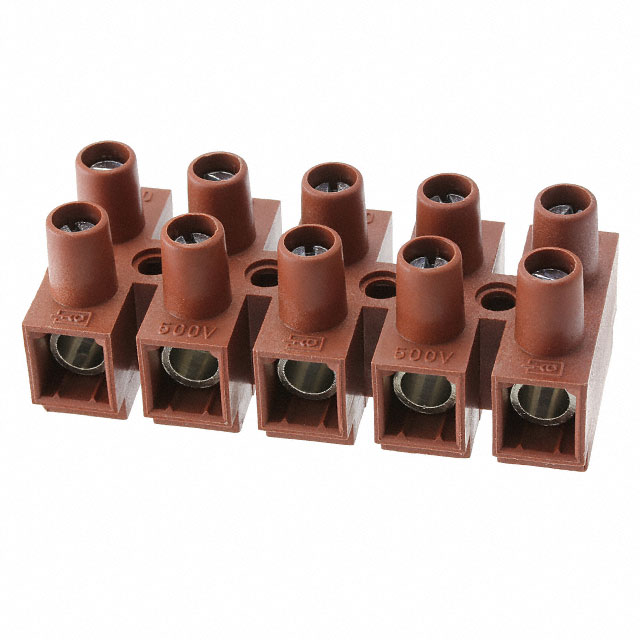

TE Connectivity Raychem Cable Protection 1986469-5	Steel	Closed	Polyamide (PA6) Nylon 6	150 °C	14.5 mm	0.571 in	5	10	Enclosed	Screws	600 V	Chassis Panel	Eurostyle Terminal Strip	Zinc Hexavalent Chromate	UL94 V-0	65 A	Brown	6 AWG	14 AWG	2

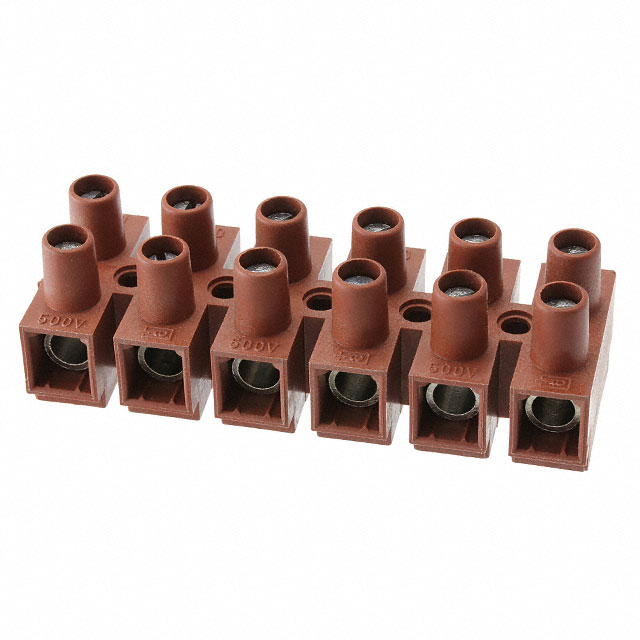

TE Connectivity Raychem Cable Protection 1986469-6	Steel	Closed	Polyamide (PA6) Nylon 6	150 °C	14.5 mm	0.571 in	6	12	Enclosed	Screws	600 V	Chassis Panel	Eurostyle Terminal Strip	Zinc Hexavalent Chromate	UL94 V-0	65 A	Brown	6 AWG	14 AWG	2
TE Connectivity Raychem Cable Protection 1986469-8	Steel	Closed	Polyamide (PA6) Nylon 6	150 °C	14.5 mm	0.571 in		16	Enclosed	Screws	600 V	Chassis Panel	Eurostyle Terminal Strip	Zinc Hexavalent Chromate	UL94 V-0	65 A	Brown	6 AWG	14 AWG	2	8
