NCP5104 Series
Manufacturer: ON Semiconductor
Beta
⌘K
SINGLE INPUT HIGH AND LOW SIDE POWER MOSFET DRIVER
| Part | Supplier Device Package | Logic Voltage - VIL, VIH [custom] | Logic Voltage - VIL, VIH [custom] | Gate Type | Channel Type | Input Type | Package / Case | Package / Case | Package / Case | Number of Drivers | Rise / Fall Time (Typ) [custom] | Rise / Fall Time (Typ) [custom] | Operating Temperature [Min] | Operating Temperature [Max] | High Side Voltage - Max (Bootstrap) [Max] | Mounting Type | Current - Peak Output (Source, Sink) [custom] | Current - Peak Output (Source, Sink) [custom] | Voltage - Supply [Max] | Voltage - Supply [Min] | Driven Configuration | Embedded | Type | Contents | Function | Secondary Attributes [Max] | Secondary Attributes [Min] | Primary Attributes | Primary Attributes | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ON Semiconductor | 8-PDIP | 2.3 V | 0.8 V | IGBT N-Channel MOSFET | Synchronous | Non-Inverting | 0.3 in | 8-DIP | 7.62 mm | 2 | 85 ns | 35 ns | -40 °C | 125 ¯C | 600 V | Through Hole | 500 mA | 250 mA | 20 V | 10 VDC | Half-Bridge | |||||||||

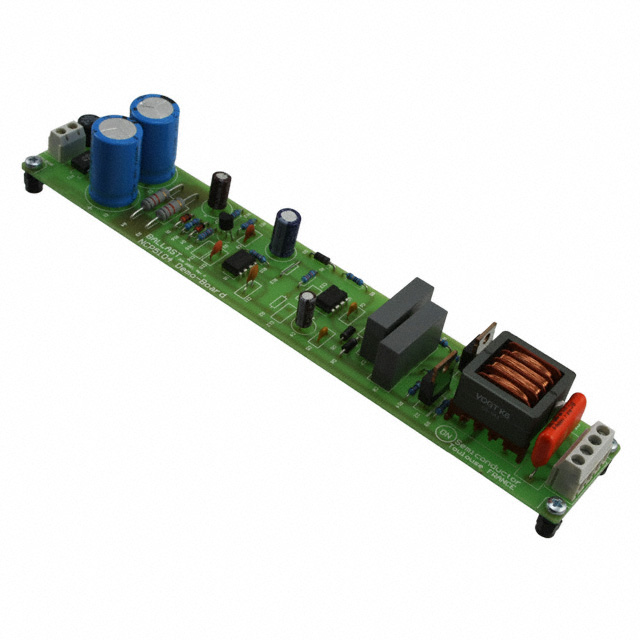

 ON Semiconductor | Opto/Lighting | Board(s) | Ballast Control | 145 VAC 265 VAC | 85 VAC 184 VAC | 36 W | PL-L | Board(s) |
