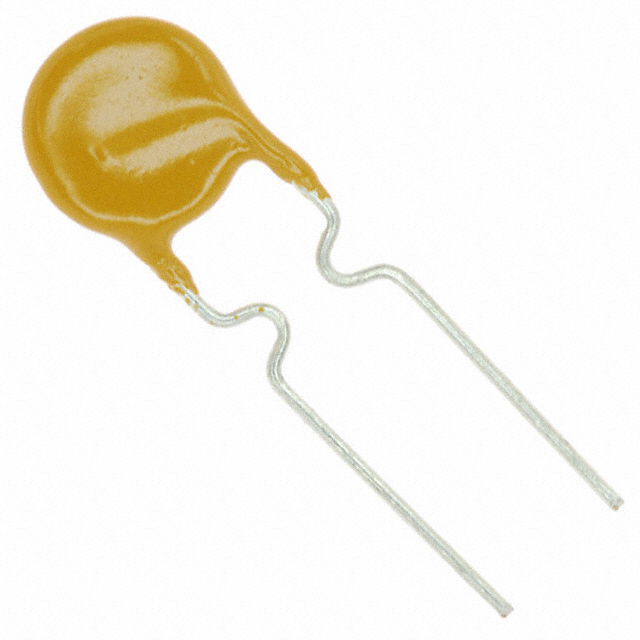

MF-R040 Series

Catalog

PTC RESETTABLE FUSE 0.4A(HOLD) 0.8A(TRIP) 60V 40A 0.55W 3.8S 0.52OHM RADIAL 7.4 X 3.1MM AMMO AUTOMOTIVE AEC-Q200

Part	Approval Agency	Current - Hold (Ih) (Max) [Max]	Mounting Type	Current - Max [Max]	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Trip (It)	Resistance - Initial (Ri) (Min) [Min]	Time to Trip	Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Resistance - Post Trip (R1) (Max) [Max]	Voltage - Max [Max]
Bourns Inc. MF-R040-AP	cURus TUV	400 mA	Through Hole	40 A	0.201 in	5.1 mm	0.539 in	13.7 mm	800 mA	520 mOhms	3.8 s	Polymeric	85 °C	-40 C	Disc Radial	1.29 Ohms	60 V
Bourns Inc. MF-R040-AP-99	cURus TUV	400 mA	Through Hole	40 A	0.201 in	5.1 mm	0.539 in	13.7 mm	800 mA	520 mOhms	3.8 s	Polymeric	85 °C	-40 C	Disc Radial	1.29 Ohms	60 V
Bourns Inc. MF-R040-2-99	cURus TUV	400 mA	Through Hole	40 A	0.201 in	5.1 mm	0.539 in	13.7 mm	800 mA	520 mOhms	3.8 s	Polymeric	85 °C	-40 C	Disc Radial	1.29 Ohms	60 V
Bourns Inc. MF-R040-0-99	cURus TUV	400 mA	Through Hole	40 A	0.201 in	5.1 mm	0.539 in	13.7 mm	800 mA	520 mOhms	3.8 s	Polymeric	85 °C	-40 C	Disc Radial	1.29 Ohms	60 V
