9030-9023 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

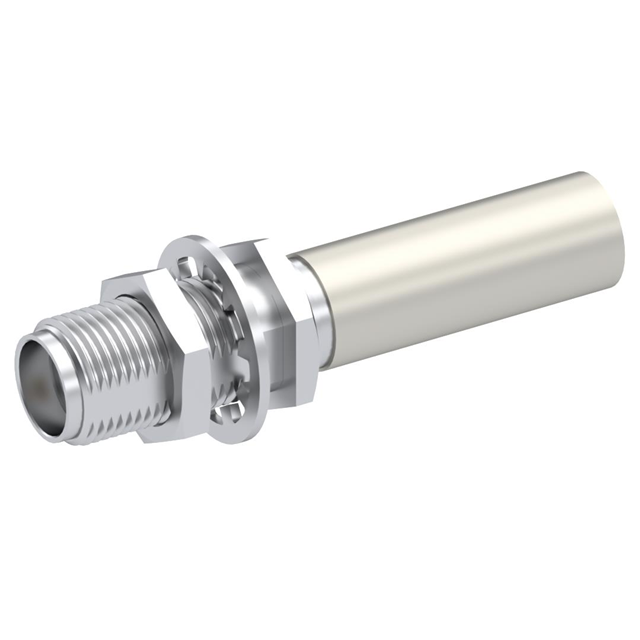

SMA / STRAIGHT JACK FEMALE CRIMP
| Part | Body Material | Center Contact Plating | Dielectric Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Number of Ports | Center Contact Material | Fastening Type | Shield Termination | Impedance | Mounting Feature | Connector Style | Frequency - Max [Max] | Housing Color | Cable Group | Contact Termination | Mounting Type | Includes | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Stainless Steel | Gold | Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | Female Socket Jack | 1 | Beryllium Copper | Threaded | Crimp | 50 Ohms | Bulkhead - Front Side Nut | SMA | 12.4 GHz | Silver | RG-316 Double Braid | Crimp | Panel Mount | ||
 Radiall USA, Inc. | Stainless Steel | Gold | Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | Female Socket Jack | 1 | Beryllium Copper | Threaded | Crimp | 50 Ohms | Bulkhead - Front Side Nut | SMA | 12.4 GHz | Silver | 188 316 RG-174 | Crimp | Panel Mount | ||
Radiall USA, Inc. | Stainless Steel | Gold | Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | Female Socket Jack | 1 | Beryllium Copper | Threaded | Crimp | 50 Ohms | Bulkhead - Front Side Nut | SMA | 18 GHz | RG-178 | Crimp | Panel Mount | 1 Connector 1 Lockwasher 1 Nut | 196 |
