KISSLING Series DS Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SWITCH SELECTOR 2POS DPDT 5A 20V

Part	Voltage Rating - AC	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Type	Circuit	Panel Cutout Dimensions [diameter]	Ingress Protection	Illumination	Switch Function	Voltage Rating - DC	Current Rating (Amps)	Number of Positions	Termination Style	Depth Behind Flange [z]	Contact Material	Contact Finish	Number of Poles per Deck	Number of Decks [custom]	Actuator Type	Circuit per Deck	Index Stops	Contact Timing	Angle of Throw
TE Connectivity AMP Connectors DS-221-RT2	20 V	Panel Mount	90 °C	-40 C	Standard	DPDT	30.5 mm	IP69K - Dust Tight High Temp Water Jets Waterproof	Non-Illuminated	On-Mom	32 V	5 A	2	Connector
TE Connectivity AMP Connectors DS-211-SW1	20 V	Panel Mount	90 °C	-40 C	Standard	SPDT	30.5 mm	IP69K - Dust Tight High Temp Water Jets Waterproof	Non-Illuminated	On-On	32 V	5 A	2	Connector
TE Connectivity AMP Connectors DS-221-RT1	20 V	Panel Mount	90 °C	-40 C	Standard	DPDT	30.5 mm	IP69K - Dust Tight High Temp Water Jets Waterproof	Non-Illuminated	On-On	32 V	5 A	2	Connector	44.6 mm

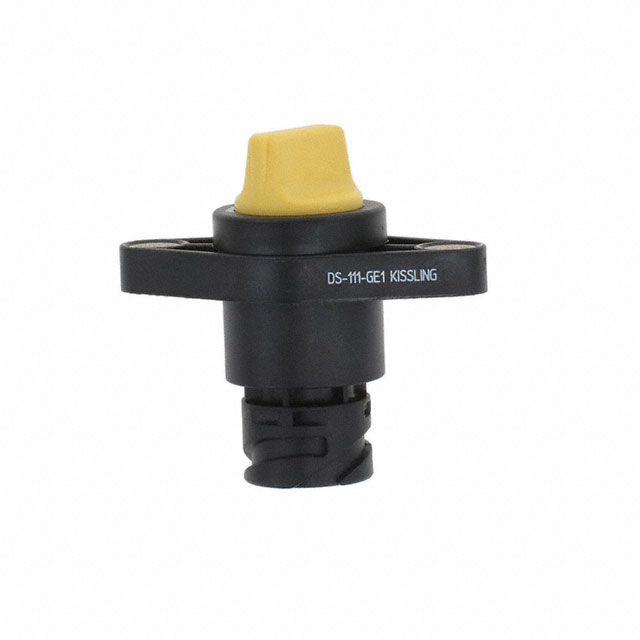

TE Connectivity AMP Connectors DS-111-GE1	20 V	Chassis Mount	90 °C	-40 C	Standard	SPDT	30.5 mm	IP69K - Dust Tight High Temp Water Jets Waterproof	Non-Illuminated	On-On	32 V	5 A	2	Connector	44.6 mm
TE Connectivity AMP Connectors DS-111-RT1 904		Panel Mount									32 V	5 A	2	Connector		Copper	Silver	1	1	Knob	SPDT	Fixed	Not Specified
TE Connectivity AMP Connectors DS-211-RT2
TE Connectivity AMP Connectors DS-133-BL12 900		Panel Mount									32 V	5 A	2	Connector		Copper	Silver	3	1	Knob	3PDT	Fixed	Not Specified	22.5 °
TE Connectivity AMP Connectors DS-133-BL12 902		Panel Mount									32 V		2	Connector		Copper	Silver	3	1	Knob	3PDT	Fixed	Not Specified	22.5 °

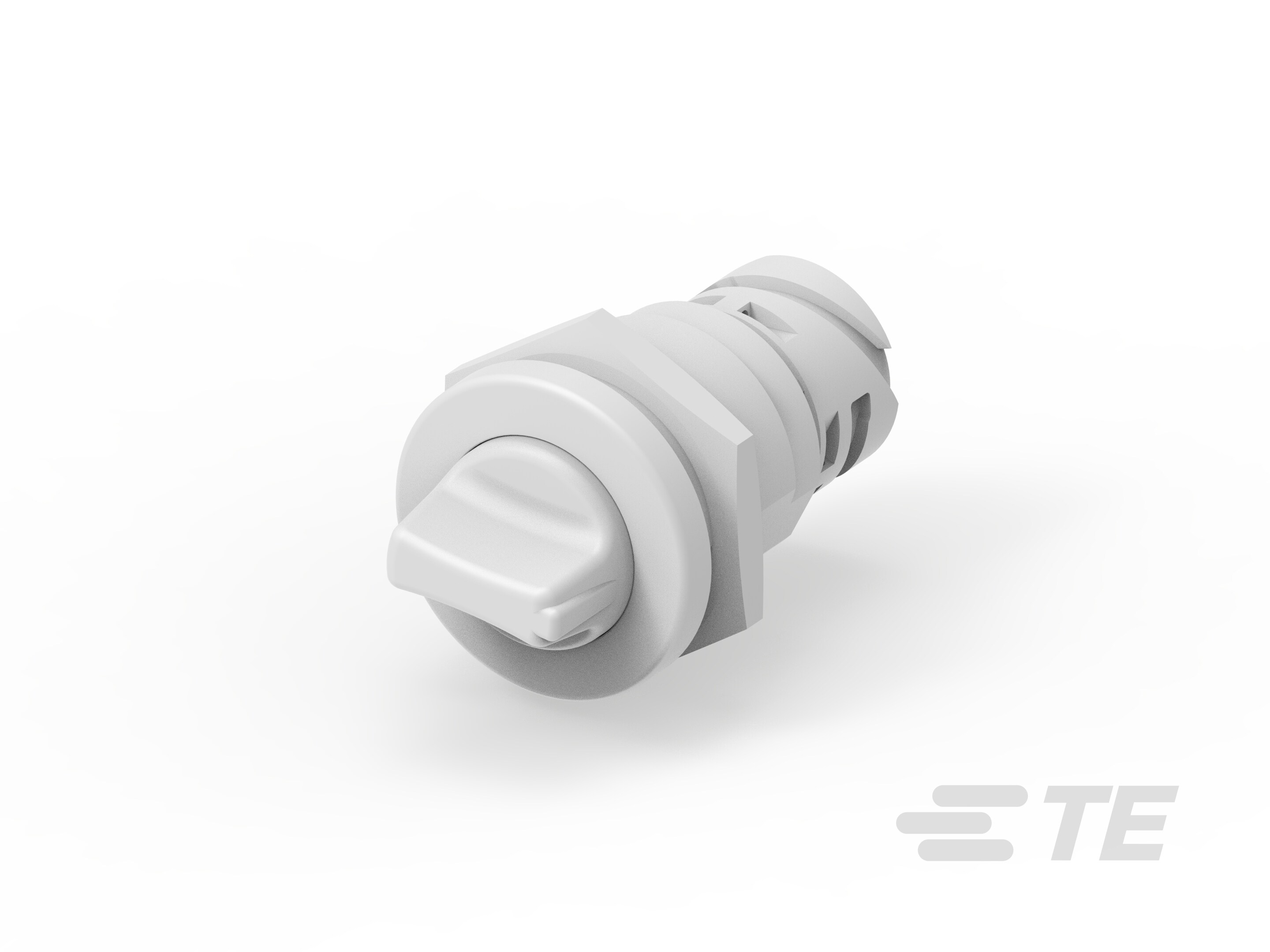

TE Connectivity AMP Connectors DS-211-GN2		Panel Mount Through Hole					30.5 mm				32 V	5 A	2	Connector		Copper	Silver	1	1	Knob	SPDT	Fixed	Not Specified

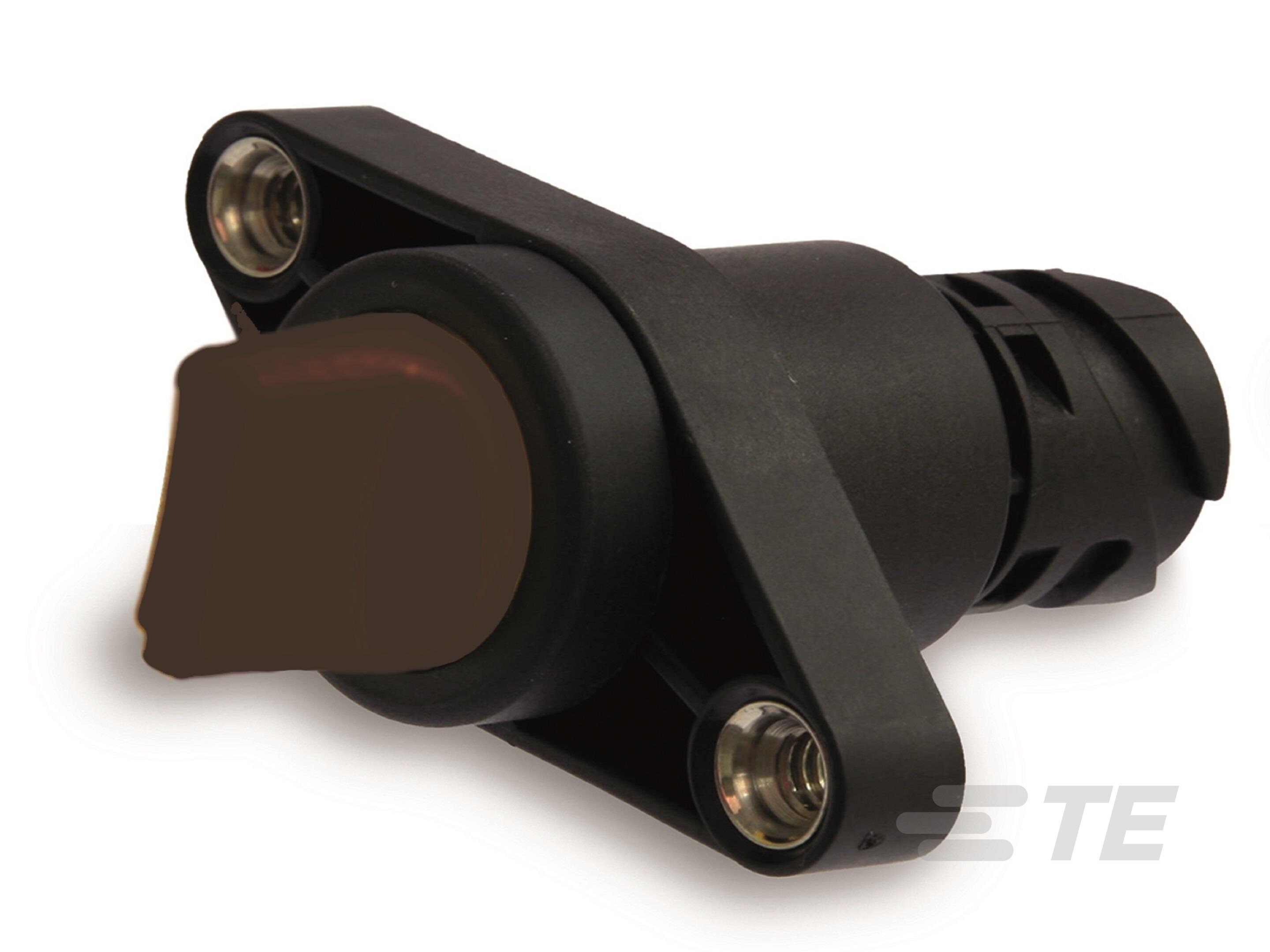

TE Connectivity AMP Connectors DS-121-SW1		Panel Mount									32 V	5 A	2	Connector		Copper	Silver	2	1	Knob	DPDT	Fixed	Not Specified	22.5 °
