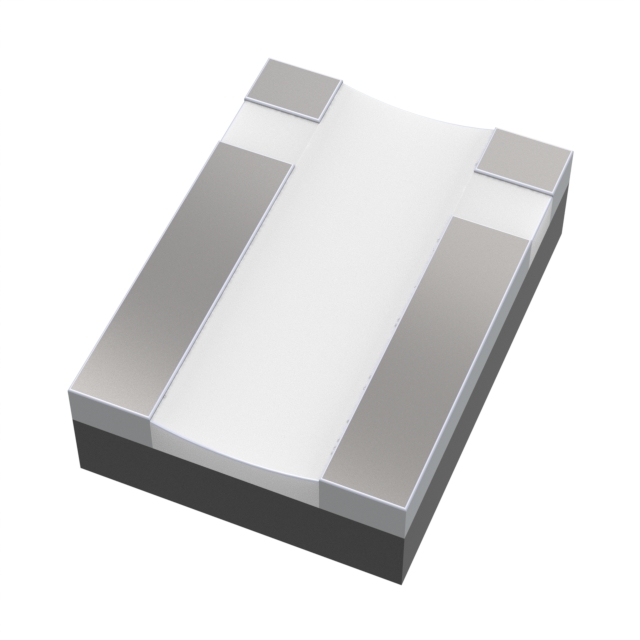

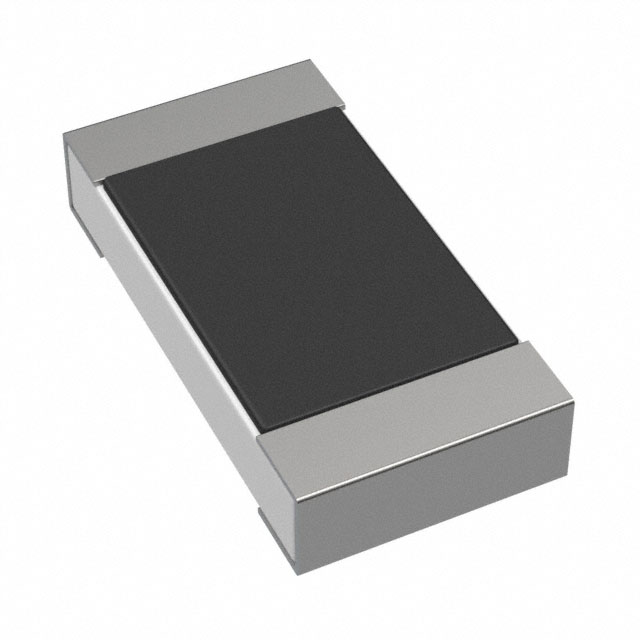

RL0816T4F Series

Catalog

RES 0.05 OHM 1% 1/3W WIDE 0603

Part	Features	Package / Case	Composition	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Resistance	Power (Watts)	Power (Watts)	Number of Terminations	Temperature Coefficient	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Delta Electronics/Cyntec RL0816T4F-F-R050-FNH	Current Sense	0306 Wide 0603 (1608 Metric)	Metal Film	-55 C	125 °C	0816	0.031 in	1.6 mm	0.8 mm	0.063 "	0.05 Ohms	0.3333333333333333 W	0.333 W	4	150 ppm/°C	1 %	0.7 mm	0.028 "
Delta Electronics/Cyntec RL0816T4F-4-R100-FNH	Current Sense	0306 Wide 0603 (1608 Metric)	Metal Film	-55 C	125 °C	0816	0.031 in	1.6 mm	0.8 mm	0.063 "	0.1 Ohms	0.5 W	0.5 W	4	150 ppm/°C	1 %	0.7 mm	0.028 "
Delta Electronics/Cyntec RL0816T4F-F-R005-FNH	Current Sense	0306 Wide 0603 (1608 Metric)	Metal Film	-55 C	125 °C	0816	0.031 in	1.6 mm	0.8 mm	0.063 "	5 mOhms	0.3333333333333333 W	0.333 W	4	150 ppm/°C	1 %	0.7 mm	0.028 "
Delta Electronics/Cyntec RL0816T4F-F-R015-FNH	Current Sense	0306 Wide 0603 (1608 Metric)	Metal Film	-55 C	125 °C	0816	0.031 in	1.6 mm	0.8 mm	0.063 "	15 mOhms	0.3333333333333333 W	0.333 W	4	150 ppm/°C	1 %	0.7 mm	0.028 "
Delta Electronics/Cyntec RL0816T4F-F-R025-FNH	Current Sense	0306 Wide 0603 (1608 Metric)	Metal Film	-55 C	125 °C	0816	0.031 in	1.6 mm	0.8 mm	0.063 "	25 mOhms	0.3333333333333333 W	0.333 W	4	150 ppm/°C	1 %	0.7 mm	0.028 "
Delta Electronics/Cyntec RL0816T4F-F-R010-FNH	Current Sense	0306 Wide 0603 (1608 Metric)	Metal Film	-55 C	125 °C	0816	0.031 in	1.6 mm	0.8 mm	0.063 "	10 mOhms	0.3333333333333333 W	0.333 W	4	150 ppm/°C	1 %	0.7 mm	0.028 "
Delta Electronics/Cyntec RL0816T4F-F-R020-FNH	Current Sense	0306 Wide 0603 (1608 Metric)	Metal Film	-55 C	125 °C	0816	0.031 in	1.6 mm	0.8 mm	0.063 "	0.02 Ohms	0.3333333333333333 W	0.333 W	4	150 ppm/°C	1 %	0.7 mm	0.028 "
Delta Electronics/Cyntec RL0816T4F-7-R050-FNH	Current Sense	0306 Wide 0603 (1608 Metric)	Metal Film	-55 C	125 °C	0816	0.031 in	1.6 mm	0.8 mm	0.063 "	0.05 Ohms	0.16666666666666666 W	0.167 W	4	150 ppm/°C	1 %	0.7 mm	0.028 "
Delta Electronics/Cyntec RL0816T4F-4-R050-FNH	Current Sense	0306 Wide 0603 (1608 Metric)	Metal Film	-55 C	125 °C	0816	0.031 in	1.6 mm	0.8 mm	0.063 "	0.05 Ohms	0.5 W	0.5 W	4	150 ppm/°C	1 %	0.7 mm	0.028 "
Delta Electronics/Cyntec RL0816T4F-7-R100-FNH	Current Sense	0306 Wide 0603 (1608 Metric)	Metal Film	-55 C	125 °C	0816	0.031 in	1.6 mm	0.8 mm	0.063 "	0.1 Ohms	0.16666666666666666 W	0.167 W	4	150 ppm/°C	1 %	0.7 mm	0.028 "
