DILB16P Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

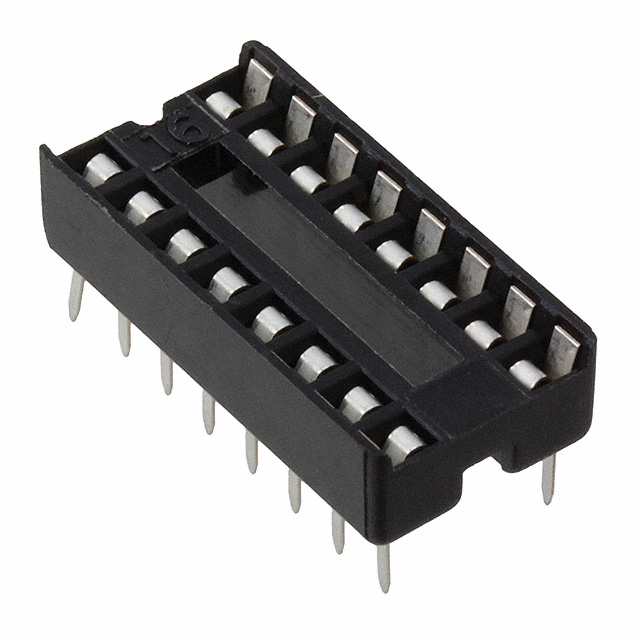

CONN IC DIP SOCKET 16POS TIN
| Part | Contact Finish - Post | Material Flammability Rating | Contact Material - Post [custom] | Housing Material | Number of Positions or Pins (Grid) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Post | Pitch - Post | Contact Resistance | Termination | Contact Material - Mating | Current Rating (Amps) | Termination Post Length | Termination Post Length | Mounting Type | Type | Type | Type | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating | Pitch - Mating | Features | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Tin | UL94 V-0 | Copper Alloy | Polyamide (PA) Nylon | 16 | 2.54 çm | 100 çin | 2.54 mm | 0.1 in | 30 mOhm | Solder | Copper Alloy | 1 A | 3.15 mm | 0.124 in | Through Hole | 0.3 " | 7.62 mm | DIP | 105 ░C | -55 °C | 0.1 in | 2.54 mm | Open Frame | 2.54 µm | 100 µin |
