VOR1142 Series

Catalog

SSR RELAY SPST-NO 140MA 0-400V

Part	Termination Style	Mounting Type	On-State Resistance (Max) [Max]	Supplier Device Package	Voltage - Load [Max]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Package / Case	Load Current	Output Type	Voltage - Input	Package / Case

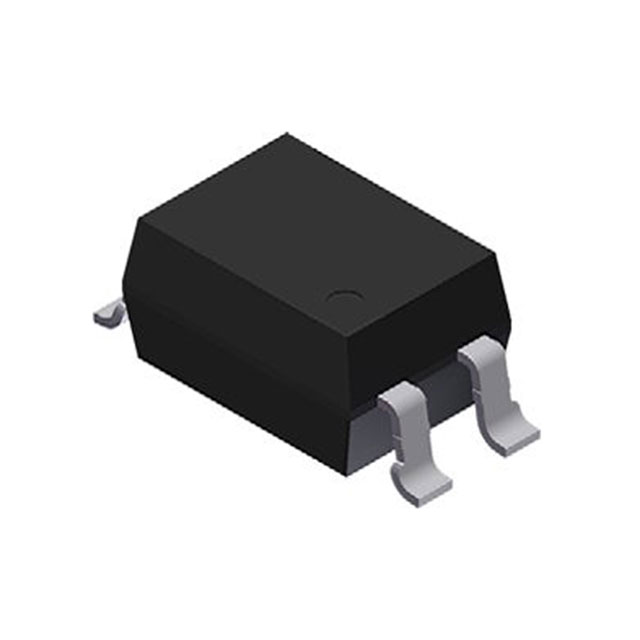

Vishay Semiconductor Opto Division VOR1142B4T	Gull Wing	Surface Mount	27 Ohms	4-SMD	400 V	cUL DIN UL	-40 C	100 °C	0.3 in	4-SMD	7.62 mm	140 mA	AC DC	1.36 VDC
Vishay Semiconductor Opto Division VOR1142M4	Gull Wing	Surface Mount	27 Ohms	4-SOP	400 V	cUL DIN UL	-40 C	100 °C		4-SOP		140 mA	AC DC	1.36 VDC	0.18 in 4.57 mm

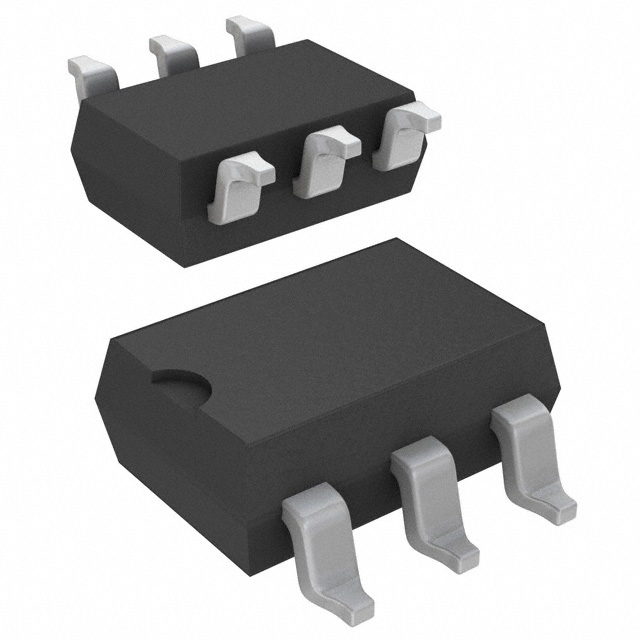

Vishay Semiconductor Opto Division VOR1142B6T	Gull Wing	Surface Mount	27 Ohms	6-SMD	400 V	cUL DIN UL	-40 C	100 °C	0.3 in	6-SMD	7.62 mm	140 mA	AC DC	1.36 VDC
Vishay Semiconductor Opto Division VOR1142B6	Gull Wing	Surface Mount	27 Ohms	6-SMD	400 V	cUL DIN UL	-40 C	100 °C	0.3 in	6-SMD	7.62 mm	140 mA	AC DC	1.36 VDC
Vishay Semiconductor Opto Division VOR1142B4	Gull Wing	Surface Mount	27 Ohms	4-SMD	400 V	cUL DIN UL	-40 C	100 °C	0.3 in	4-SMD	7.62 mm	140 mA	AC DC	1.36 VDC
Vishay Semiconductor Opto Division VOR1142M4T	Gull Wing	Surface Mount	27 Ohms	4-SOP	400 V	cUL DIN UL	-40 C	100 °C		4-SOP		140 mA	AC DC	1.36 VDC	0.18 in 4.57 mm
