MPQ8904 Series

Catalog

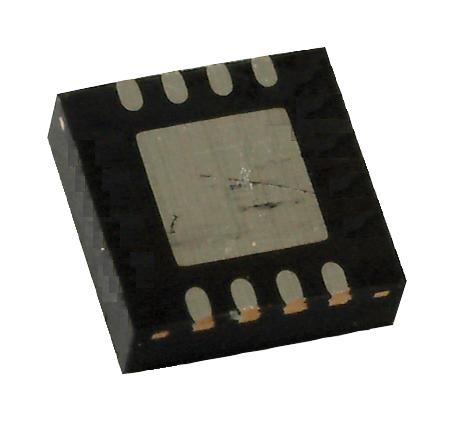

LDO VOLTAGE REGULATOR, ADJUSTABLE, 2.5V TO 6.5V IN, 300MV DROPOUT, 0.5V TO 5V/500MA OUT, QFN-8

Part	Voltage - Output (Max) [Max]	Voltage Dropout (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output	Number of Regulators	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	Protection Features	Output Configuration	Package / Case	Supplier Device Package	Output Type	Qualification	Voltage - Output (Min/Fixed) [Min]	Mounting Type	Control Features	Current - Supply (Max) [Max]	Grade
Monolithic Power Systems Inc. MPQ8904DD-AEC1-LF-P	5 V	0.45 V	125 °C	-40 C	500 mA	1	200 µA	6.5 V	Over Current Over Temperature	Positive	8-TFDFN Exposed Pad	8-QFN (2x3)	Adjustable	AEC-Q100	0.5 V	Surface Mount	Enable Power Good	12 mA	Automotive
Monolithic Power Systems Inc. MPQ8904DD-LF-P	5 V	0.45 V	125 °C	-40 C	500 mA	1	200 µA	6.5 V	Over Current Over Temperature	Positive	8-TFDFN Exposed Pad	8-QFN (2x3)	Adjustable		0.5 V	Surface Mount	Enable Power Good	12 mA

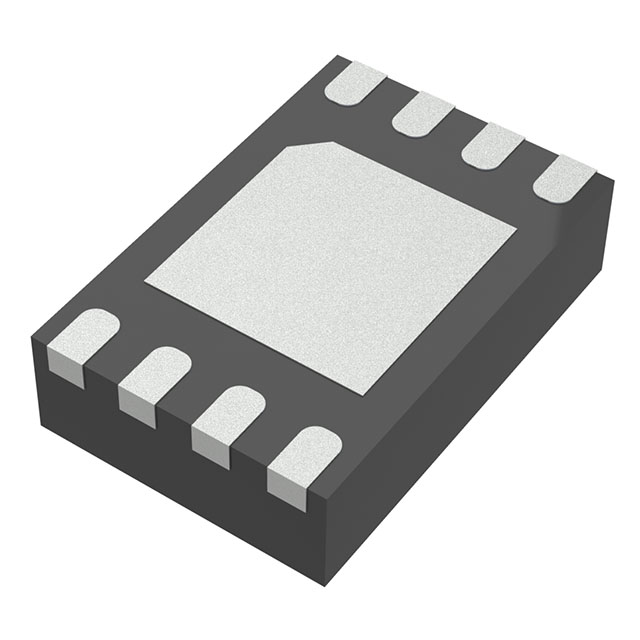

Monolithic Power Systems Inc. MPQ8904DD-LF-Z	5 V	0.45 V	125 °C	-40 C	500 mA	1	200 µA	6.5 V	Over Current Over Temperature	Positive	8-TFDFN Exposed Pad	8-QFN (2x3)	Adjustable		0.5 V	Surface Mount	Enable Power Good	12 mA
