RAMO 22 Series
Manufacturer: RAFI USA
Beta
⌘K

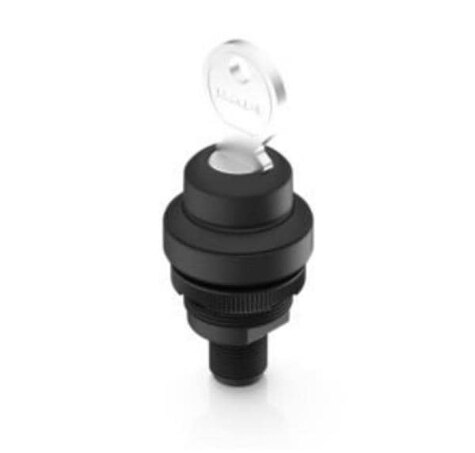

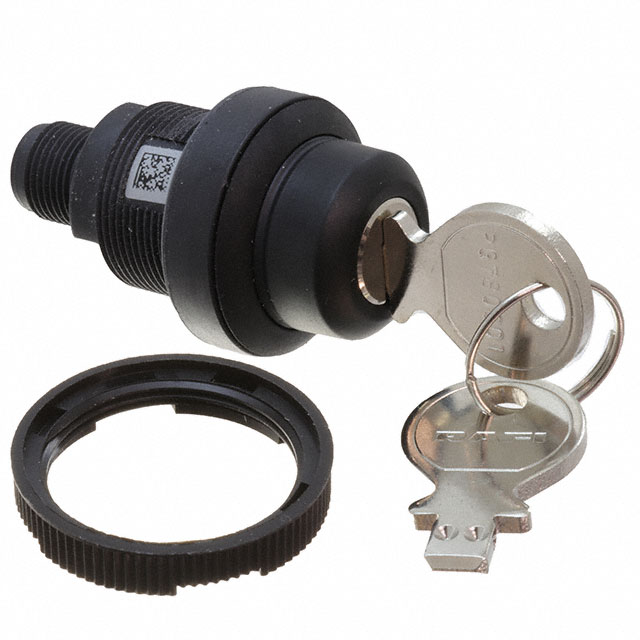

KEYLOCK SWITCHES RAMO 22 K M12 1X40 MOM 1NC+1NO REM 0
| Part | Actuator Type | Features | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Voltage Rating - DC | Key Removable Positions | Contact Material [custom] | Contact Material [custom] | Termination Style | Panel Cutout Dimensions [diameter] | Angle of Throw | Depth Behind Flange | Mounting Type | Mechanical Life | Contact Timing | Number of Positions | Circuit | Ingress Protection | Illumination Voltage (Nominal) | Illumination Type, Color | Illumination | Type | Electrical Life | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RAFI USA | Flat Key | IP65 | On-Mom | 85 °C | -40 C | 100 mA | 32 V | Center | Gold | Au | Connector | 22.3 mm | 40 ° | 30 mm | Panel Mount | 300000 Cycles | Not Specified | 2 | SPDT | |||||||
 RAFI USA | Flat Key | IP65 | On-Off-On | 85 °C | -40 C | 100 mA | 32 V | Center | Gold | Au | Connector | 22.3 mm | 90 ° | Panel Mount | Not Specified | SPDT | ||||||||||

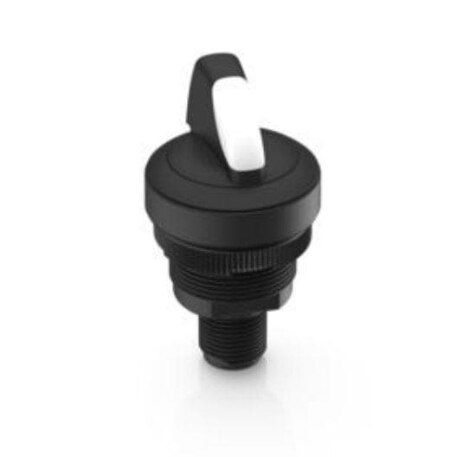

 RAFI USA | On-Off-On | 70 °C | -25 °C | 100 mA | 32 V | Connector | 22.3 mm | Panel Mount | SPDT | IP65 - Dust Tight Water Resistant | 24 V | LED White | Illuminated | Standard | ||||||||||||
 RAFI USA | Off-On | 70 °C | -25 °C | 100 mA | 32 V | Connector | 22.3 mm | Panel Mount | 2 | SPST | IP65 - Dust Tight Water Resistant | 24 V | LED White | Illuminated | Standard | |||||||||||
 RAFI USA | Flat Key | IP65 | On-On | 85 °C | -40 C | 100 mA | 32 V | Center | Gold | Au | Connector | 22.3 mm | 90 ° | 30 mm | Panel Mount | 50000 Cycles | Not Specified | 2 | SPDT | 50000 Cycles | ||||||
RAFI USA | On-Off-On | 70 °C | -25 °C | 100 mA | 32 V | Connector | 22.3 mm | 30 mm | Panel Mount | 200000 Cycles | SPDT | IP65 - Dust Tight Water Resistant | 24 V | LED White | Illuminated | Standard | 200000 Cycles | CE | ||||||||
RAFI USA | Off-Mom | 70 °C | -25 °C | 100 mA | 32 V | Connector | 22.3 mm | Panel Mount | 2 | SPST-NO | IP65 - Dust Tight Water Resistant | 24 V | LED White | Illuminated | Standard | |||||||||||
RAFI USA | Flat Key | IP65 | On-On | 85 °C | -40 C | 100 mA | 32 V | All | Gold | Au | Connector | 22.3 mm | 90 ° | Panel Mount | Not Specified | 2 | SPDT | |||||||||
RAFI USA | Flat Key | IP65 | On-Off-On | 85 °C | -40 C | 100 mA | 32 V | Center | Gold | Au | Connector | 22.3 mm | 90 ° | 30 mm | Panel Mount | 50000 Cycles | Not Specified | SPDT | 50000 Cycles | |||||||
RAFI USA | Flat Key | IP65 | On-On | 85 °C | -40 C | 100 mA | 32 V | Center | Gold | Au | Connector | 22.3 mm | 90 ° | Panel Mount | Not Specified | 2 | SPDT |
