Pushbutton Switches PUSHBTN SWITCH
Pushbutton Switches PUSHBTN SWITCH
| Part | Electrical Life | Mounting Type | Current Rating (Amps) | Type | Actuator Marking | Voltage Rating - AC | Circuit | Color - Actuator/Cap | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Actuator Type | Termination Style | Panel Cutout Dimensions [diameter] | Features | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

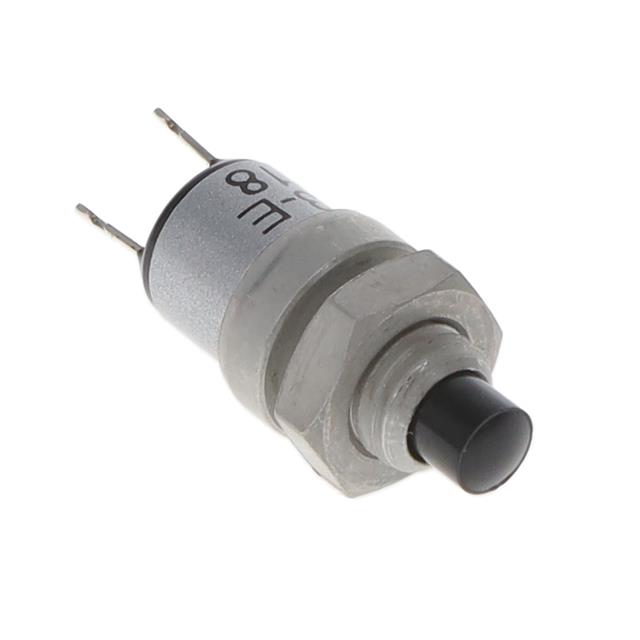

 Grayhill Inc. | 1000000 Cycles | Panel Mount Rear | 1 A | Standard | No Marking | 115 V | SPST-NO | Black | 85 °C | -40 C | Off-Mom | Plunger Round | Wire Leads | 6.75 mm | Epoxy Sealed Terminals | ||
 Grayhill Inc. | 1000000 Cycles | Panel Mount Snap-In | 1 A | Standard | No Marking | 115 V | SPST-NC | Black | 85 °C | -40 C | On-Mom | Button Square | Solder Lug | 19.05 mm | 19.05 mm | ||
Grayhill Inc. | Panel Mount Snap-In | 1 A | Standard | No Marking | 115 V | SPST-NO | Yellow | 85 °C | -40 C | Off-Mom | Button Square | Solder Lug | Overtravel Tactile Feedback | 19.05 mm | 19.05 mm | ||
Grayhill Inc. | Panel Mount Front | 1 A | Standard | No Marking | 115 V | SPST-NO | Blue | 85 °C | -40 C | Off-Mom | Button Round | Solder Lug | 13.1 mm | 11.17 mm |
