TCD Series

Manufacturer: OptiFuse

Catalog

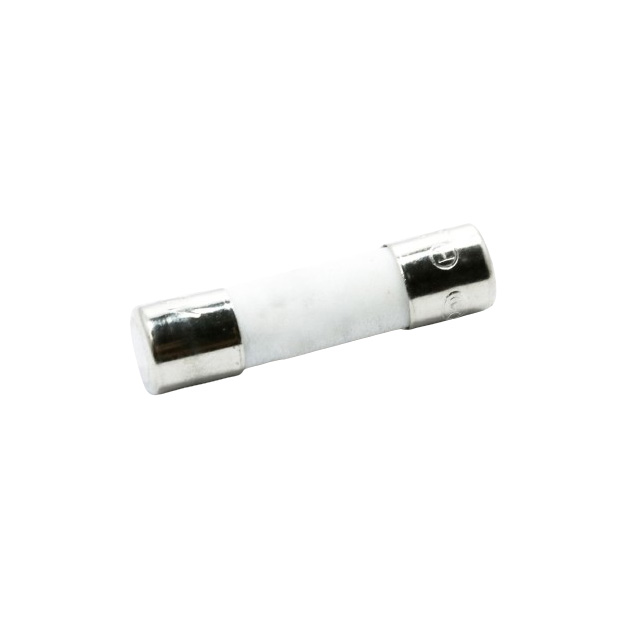

FUSE CERAMIC 2.5A 250VAC 5X20MM

Part	Response Time	Breaking Capacity @ Rated Voltage	Approval Agency	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Package / Case [x]	Package / Case [y]	Fuse Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage Rating - AC	Current Rating (Amps)	Package / Case
OptiFuse TCD-2.5A	Slow Blow	1.5 kA	cURus IEC 60127	20 mm	0.205 in	0.787 "	5.2 mm	5 mm	20 mm	Cartridge Ceramic	-55 C	125 °C	Requires Holder	250 V	2.5 A
OptiFuse TCD-500MA	Slow Blow	1.5 kA	cURus IEC 60127	20 mm	0.205 in	0.787 "	5.2 mm	5 mm	20 mm	Cartridge Ceramic	-55 C	125 °C	Requires Holder	250 V	0.5 A
OptiFuse TCD-250MA	Slow Blow	1.5 kA	IEC 60127	20 mm	0.205 in	0.787 "	5.2 mm	5 mm	20 mm	Cartridge Ceramic	-55 C	125 °C	Requires Holder	250 V	0.25 A
OptiFuse TCD-15A	Slow Blow	1.5 kA	IEC 60127	20 mm	0.205 in	0.787 "	5.2 mm	5 mm	20 mm	Cartridge Ceramic	-55 C	125 °C	Requires Holder	250 V	15 A
OptiFuse TCD-8A	Slow Blow	1.5 kA	cURus IEC 60127	20 mm	0.205 in	0.787 "	5.2 mm	5 mm	20 mm	Cartridge Ceramic	-55 C	125 °C	Requires Holder	250 V	8 A
OptiFuse TCD-4A	Slow Blow	1.5 kA	cURus IEC 60127	20 mm	0.205 in	0.787 "	5.2 mm	5 mm	20 mm	Cartridge Ceramic	-55 C	125 °C	Requires Holder	250 V	4 A

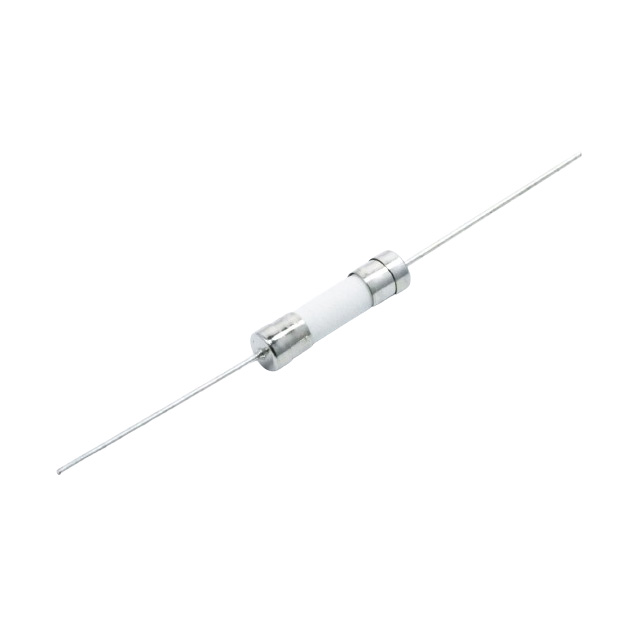

OptiFuse TCD-P-3.15A	Slow Blow	1.5 kA	cURus IEC 60127	21 mm	0.217 in	0.827 "	5.5 mm	5 mm	20 mm	Cartridge Ceramic	-55 C	125 °C	Through Hole	250 V	3.15 A	Axial
OptiFuse TCD-5A	Slow Blow	1.5 kA	cURus IEC 60127	20 mm	0.205 in	0.787 "	5.2 mm	5 mm	20 mm	Cartridge Ceramic	-55 C	125 °C	Requires Holder	250 V	5 A
OptiFuse TCD-2A	Slow Blow	1.5 kA	cURus IEC 60127	20 mm	0.205 in	0.787 "	5.2 mm	5 mm	20 mm	Cartridge Ceramic	-55 C	125 °C	Requires Holder	250 V	2 A
OptiFuse TCD-6.3A	Slow Blow	1.5 kA	cURus IEC 60127	20 mm	0.205 in	0.787 "	5.2 mm	5 mm	20 mm	Cartridge Ceramic	-55 C	125 °C	Requires Holder	250 V	6.3 A
