290529 Series
Manufacturer: Phoenix Contact
Beta
⌘K
SSR RELAY SPST-NO 100MA 3-48V
| Part | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Output Type | Package / Case | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Load [Max] | Voltage - Load [Min] | Load Current | Mounting Type | Voltage - Input |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

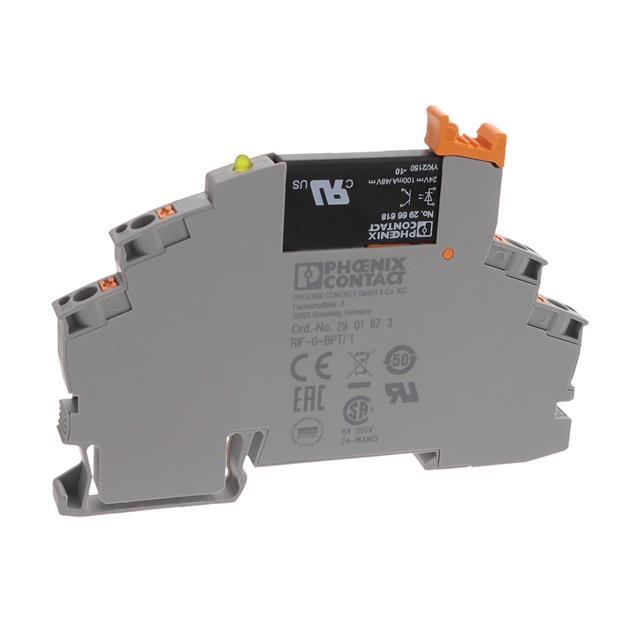

 Phoenix Contact | EN IEC | -20 ░C | 60 °C | Spring Terminal | DC | Module | 28.8 V | 19.2 V | 48 V | 3 V | 100 mA | DIN Rail | |

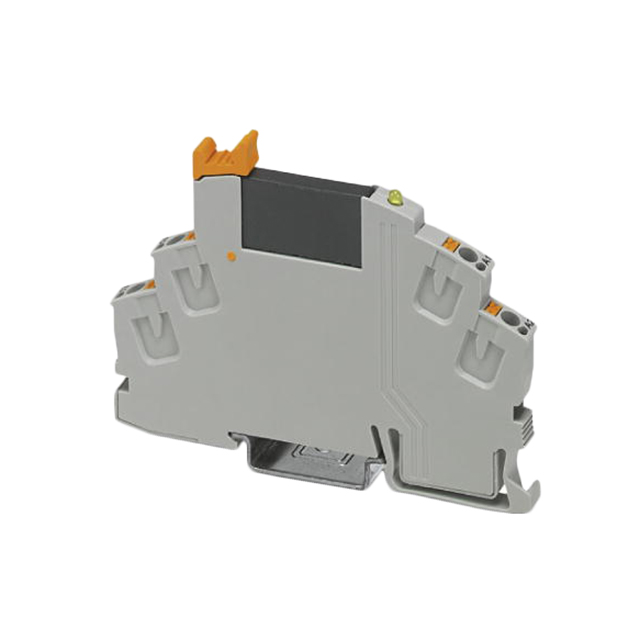

 Phoenix Contact | DNV EAC | -25 °C | 60 °C | Spring Terminal | DC | 33 V | 3 V | 3 A | DIN Rail | 24 VDC | |||

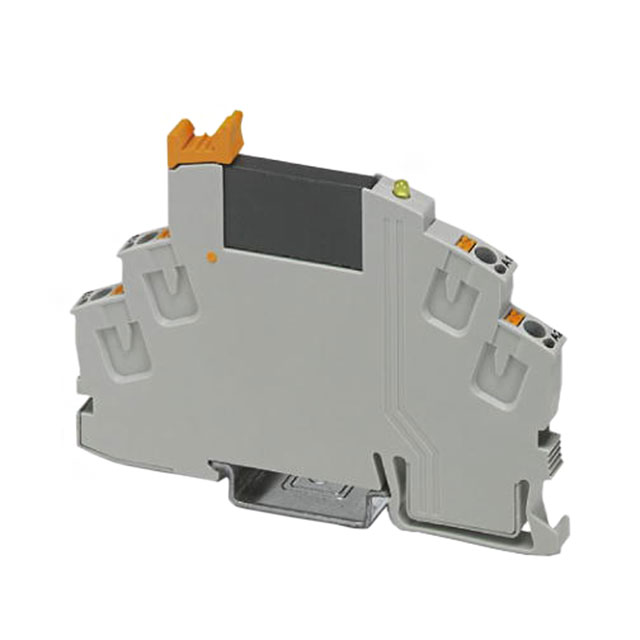

 Phoenix Contact | DNV EAC | -25 °C | 60 °C | Plug In | AC | 253 V | 24 V | 0.75 A | DIN Rail | 24 VDC |
