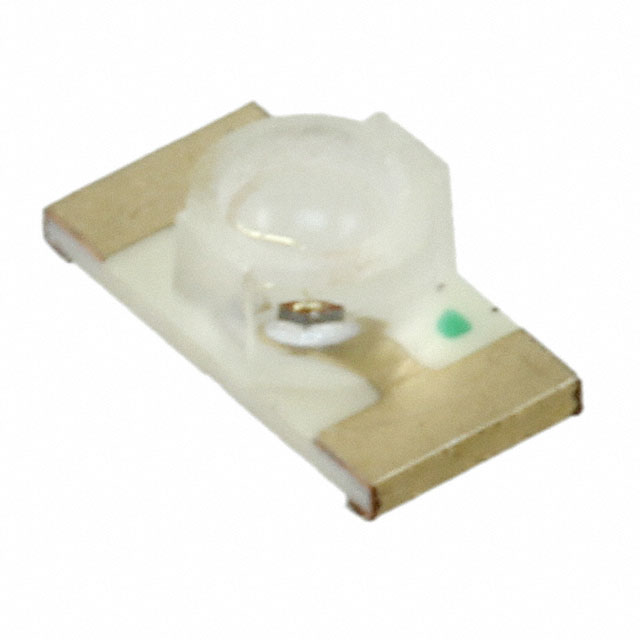

SML-LXLC1206 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K
LED BLUE CLEAR SMD
| Part | Lens Style | Voltage - Forward (Vf) (Typ) | Wavelength - Peak | Current - Test | Lens Transparency | Millicandela Rating | Height (Max) [z] | Configuration | Package / Case | Supplier Device Package | Color | Lens Color | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Lens Size [diameter] | Viewing Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | Round with Flat Top | 3.3 V | 460 nm | 20 mA | Clear | 250 mcd | 1.1 mm | Standard | 1206 (3216 Metric) | SMD | Blue | Colorless | 1.6 mm | 3.2 mm | Surface Mount | 1.6 mm | 70 ° |
Lumex Opto/Components Inc. | Round with Flat Top | 1.95 V | 645 nm | 20 mA | Clear | 550 mcd | 1.1 mm | Standard | 1206 (3216 Metric) | SMD | Red | Colorless | 1.6 mm | 3.2 mm | Surface Mount | 1.6 mm | 70 ° |
Lumex Opto/Components Inc. | Round with Flat Top | 2 V | 590 nm | 20 mA | Clear | 350 mcd | 1.1 mm | Standard | 1206 (3216 Metric) | SMD | Yellow | Colorless | 1.6 mm | 3.2 mm | Surface Mount | 1.6 mm | 70 ° |
Lumex Opto/Components Inc. | Round with Flat Top | 2.1 V | 20 mA | Clear | 100 mcd | 1.1 mm | Standard | 1206 (3216 Metric) | SMD | Green | Colorless | 1.6 mm | 3.2 mm | Surface Mount | 1.6 mm | 70 ° |
