TPS3831 Series

150-nA, ultra-low power, supply voltage monitor

Catalog

150-nA, ultra-low power, supply voltage monitor

Part	Number of Voltages Monitored	Reset Timeout	Operating Temperature [Max]	Operating Temperature [Min]	Reset	Supplier Device Package	Output	Package / Case	Type	Mounting Type	Voltage - Threshold	Utilized IC / Part	Contents	Function	Supplied Contents
Texas Instruments TPS3831A09DQNT	1	120 ms	85 °C	-40 °C	Active Low	4-X2SON (1x1)	Push-Pull Totem Pole	4-XDFN Exposed Pad	Simple Reset/Power-On Reset	Surface Mount
Texas Instruments TPS3831G18DQNR	1	120 ms	85 °C	-40 °C	Active Low	4-X2SON (1x1)	Push-Pull Totem Pole	4-XDFN Exposed Pad	Simple Reset/Power-On Reset	Surface Mount	1.67 V
Texas Instruments TPS3831G12DQNT	1	120 ms	85 °C	-40 °C	Active Low	4-X2SON (1x1)	Push-Pull Totem Pole	4-XDFN Exposed Pad	Simple Reset/Power-On Reset	Surface Mount	1.1 V
Texas Instruments TPS3831G12DQNR	1	120 ms	85 °C	-40 °C	Active Low	4-X2SON (1x1)	Push-Pull Totem Pole	4-XDFN Exposed Pad	Simple Reset/Power-On Reset	Surface Mount	1.1 V

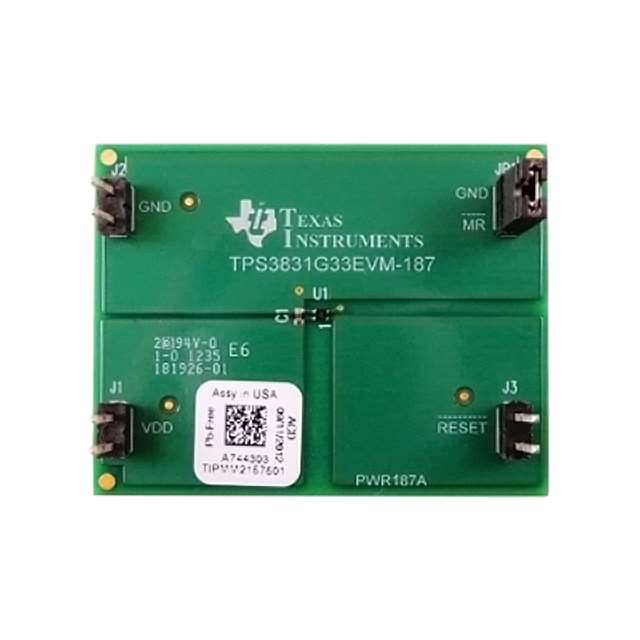

Texas Instruments TPS3831G33EVM-187									Power Management			TPS3831G33	Board(s)	Power Supply Supervisor/Tracker/Sequencer	Board(s)
Texas Instruments TPS3831L30DQNT	1	120 ms	85 °C	-40 °C	Active Low	4-X2SON (1x1)	Push-Pull Totem Pole	4-XDFN Exposed Pad	Simple Reset/Power-On Reset	Surface Mount	2.63 V
Texas Instruments TPS3831G18DQNT	1	120 ms	85 °C	-40 °C	Active Low	4-X2SON (1x1)	Push-Pull Totem Pole	4-XDFN Exposed Pad	Simple Reset/Power-On Reset	Surface Mount	1.67 V
Texas Instruments TPS3831K33DQNR	1	120 ms	85 °C	-40 °C	Active Low	4-X2SON (1x1)	Push-Pull Totem Pole	4-XDFN Exposed Pad	Simple Reset/Power-On Reset	Surface Mount	2.93 V
Texas Instruments TPS3831L30DQNR	1	120 ms	85 °C	-40 °C	Active Low	4-X2SON (1x1)	Push-Pull Totem Pole	4-XDFN Exposed Pad	Simple Reset/Power-On Reset	Surface Mount	2.63 V
Texas Instruments TPS3831K50DQNT	1	120 ms	85 °C	-40 °C	Active Low	4-X2SON (1x1)	Push-Pull Totem Pole	4-XDFN Exposed Pad	Simple Reset/Power-On Reset	Surface Mount

Catalog

150-nA, ultra-low power, supply voltage monitor

Key Features

• Ultralow Supply Current: 150 nA (Typical)Operating Supply Voltage: 0.9 V to 6.5 VValid Reset for VDD> 0.6 VPush-PullRESETOutputFactory-Trimmed Reset Threshold VoltagesTemperature Range: –40°C to 85°CPackages: 1-mm × 1-mm X2SON or 3-Pin SOT23Ultralow Supply Current: 150 nA (Typical)Operating Supply Voltage: 0.9 V to 6.5 VValid Reset for VDD> 0.6 VPush-PullRESETOutputFactory-Trimmed Reset Threshold VoltagesTemperature Range: –40°C to 85°CPackages: 1-mm × 1-mm X2SON or 3-Pin SOT23

Description

The TPS3831 and TPS3839 devices (both referred to asTPS383x) are ultralow current (150 nA, typical), voltage supervisory circuits that monitor a single voltage. Both devices initiate an active-low reset signal whenever the VDDsupply voltage drops below the factory-trimmed reset threshold voltage. The reset output remains low for 200 ms (typical) after the VDDvoltage rises above the threshold voltage and hysteresis. These devices are designed to ignore fast transients on the VDD pin. The TPS3831 device includes a manual reset input that forcesRESETlow whenMRis low. The ultralow current consumption of 150 nA makes these voltage supervisors ideal for use in low-power and portable applications. The TPS383x devices are specified to have the correct output logic state for supply voltages down to 0.6 V. The TPS383x devices feature precision factory-trimmed threshold voltages and extremely low-power operation. The TPS3831 device is available in a 4-pin, 1-mm × 1-mm (DQN) X2SON package. The TPS3839 device is available in a 3-pin SOT23 (DBZ) package or a 4-pin, 1-mm × 1-mm (DQN) X2SON package. The TPS3831 and TPS3839 devices (both referred to asTPS383x) are ultralow current (150 nA, typical), voltage supervisory circuits that monitor a single voltage. Both devices initiate an active-low reset signal whenever the VDDsupply voltage drops below the factory-trimmed reset threshold voltage. The reset output remains low for 200 ms (typical) after the VDDvoltage rises above the threshold voltage and hysteresis. These devices are designed to ignore fast transients on the VDD pin. The TPS3831 device includes a manual reset input that forcesRESETlow whenMRis low. The ultralow current consumption of 150 nA makes these voltage supervisors ideal for use in low-power and portable applications. The TPS383x devices are specified to have the correct output logic state for supply voltages down to 0.6 V. The TPS383x devices feature precision factory-trimmed threshold voltages and extremely low-power operation. The TPS3831 device is available in a 4-pin, 1-mm × 1-mm (DQN) X2SON package. The TPS3839 device is available in a 3-pin SOT23 (DBZ) package or a 4-pin, 1-mm × 1-mm (DQN) X2SON package.
