TPS53820 Series

Integrated step-down converter with SVID for Intel CPU power

Catalog

Integrated step-down converter with SVID for Intel CPU power

Part	Output Type	Current - Output	Frequency - Switching [Min]	Frequency - Switching [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Function	Number of Outputs	Output Configuration	Package / Case	Supplier Device Package	Synchronous Rectifier	Topology	Applications	Voltage - Input [Max]	Voltage - Input [Min]
Texas Instruments TPS53820RWZT	Adjustable	5.5 A	800 kHz	2 MHz	125 °C	-40 °C	Surface Mount	15 V	4.5 V	Step-Down	1	Positive	35-PowerVQFN	35-VQFN-HR (5x5)		Buck

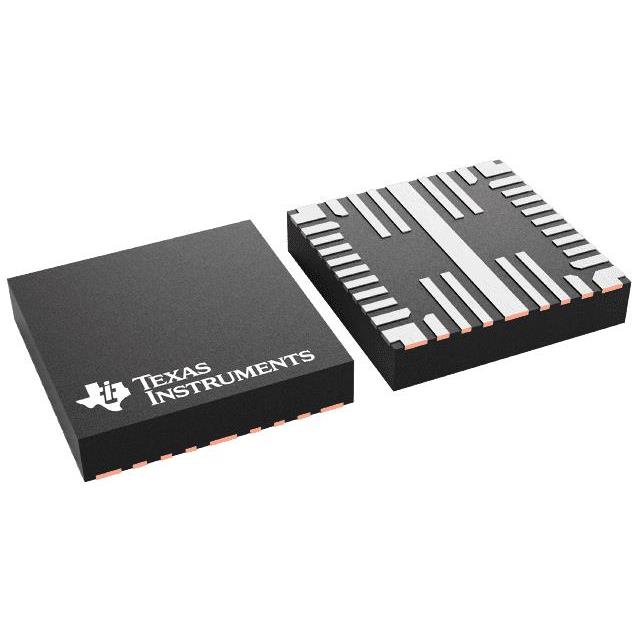

Texas Instruments TPS53820RWZR					125 °C	-40 °C	Surface Mount				2		35-PowerVFQFN	35-VQFN-HR (5x5)			Converter CPU	15 V	4.5 V

Catalog

Integrated step-down converter with SVID for Intel CPU power

Key Features

• Single chip to support Intel VR13.HC SVID POL applicationsTwo outputs to support VCCANA (5.5 A) and P1V8 (4 A)D-CAP+™ Control for Fast Transient ResponseWide Input Voltage (4.5 V to 15 V)Differential Remote SenseProgrammable Internal Loop CompensationPer-Phase Cycle-by-Cycle Current LimitProgrammable Frequency from 800 kHz to 2 MHzI2C System Interface for Telemetry of Voltage, Current, Output Power, Temperature, and Fault ConditionsOver-Current, Over-Voltage, Over-Temperature protectionsLow Quiescent Current5 mm × 5 mm, 35-Pin QFN, PowerPAD PackageSingle chip to support Intel VR13.HC SVID POL applicationsTwo outputs to support VCCANA (5.5 A) and P1V8 (4 A)D-CAP+™ Control for Fast Transient ResponseWide Input Voltage (4.5 V to 15 V)Differential Remote SenseProgrammable Internal Loop CompensationPer-Phase Cycle-by-Cycle Current LimitProgrammable Frequency from 800 kHz to 2 MHzI2C System Interface for Telemetry of Voltage, Current, Output Power, Temperature, and Fault ConditionsOver-Current, Over-Voltage, Over-Temperature protectionsLow Quiescent Current5 mm × 5 mm, 35-Pin QFN, PowerPAD Package

Description

The TPS53820 device is D-CAP+ mode integrated step-down converter for low current SVID rails of Intel CPU power supply. It provides up to two outputs to power the low current SVID rails such as VCCANA (5.5 A) and P1V8 (4 A). The device employs D-CAP+ mode control to provide fast load transient performance. Internal compensation allows ease of use and reduces external components. The device also provides telemetry, including input voltage, output voltage, output current and temperature reporting. Over voltage, over current and over temperature protections are provided as well. The TPS53820 device is packaged in a thermally enhanced 35-pin QFN and operates between –40°C and 125°C. The TPS53820 device is D-CAP+ mode integrated step-down converter for low current SVID rails of Intel CPU power supply. It provides up to two outputs to power the low current SVID rails such as VCCANA (5.5 A) and P1V8 (4 A). The device employs D-CAP+ mode control to provide fast load transient performance. Internal compensation allows ease of use and reduces external components. The device also provides telemetry, including input voltage, output voltage, output current and temperature reporting. Over voltage, over current and over temperature protections are provided as well. The TPS53820 device is packaged in a thermally enhanced 35-pin QFN and operates between –40°C and 125°C.
