BZ-2RL Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

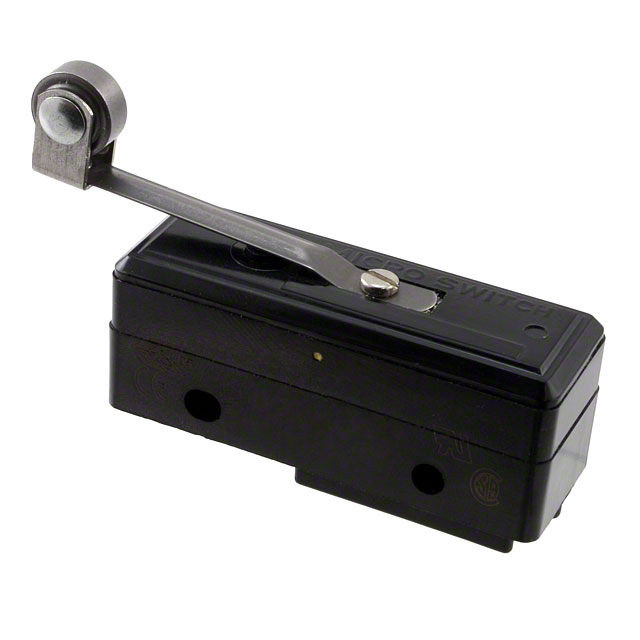

SWITCH SNAP ACTION SPDT 15A 125V
| Part | Mounting Type | Circuit | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Differential Travel | Differential Travel | Operating Position | Operating Position | Current Rating (Amps) | Mechanical Life | Termination Style | Switch Function | Overtravel | Overtravel | Actuator Type | Voltage Rating - AC | Operating Force | Release Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions | Chassis Mount | SPDT | 125 VDC | 85 °C | -55 °C | 0.05 in | 1.3 mm | 0.917 in | 23.3 mm | 15 A 500 mA | 20000000 Cycles | Solder Lug | On-Mom | 1.5 mm | 0.06 " | Leaf Lever | 125 V | ||
 Honeywell Sensing and Productivity Solutions | Chassis Mount | SPDT | 125 VDC | 85 °C | -55 °C | 0.05 in | 1.3 mm | 1.125 in | 28.6 mm | 15 A 500 mA | 20000000 Cycles | Solder Lug | On-Mom | 1.5 mm | 0.06 " | Lever Roller | 125 V | 141 gf | 14 gf |
