TS-701 Series

Catalog

CIR BRKR THRM 30A 250VAC 50VDC

Part	Approval Agency	Breaker Type	Current Rating (Amps)	Number of Poles	Actuator Type	Mounting Type	Voltage Rating - DC	Voltage Rating - AC
SCHURTER Inc. TS-701-HT-30	CSA C22.2 UL1077	Thermal	30 A	1	Push to Reset	Panel Mount	50 VDC	250 V
SCHURTER Inc. TS-701-HT-25	CSA C22.2 UL1077	Thermal	25 A	1	Push to Reset	Panel Mount	50 VDC	250 V
SCHURTER Inc. TS-701-HT-12H		Thermal	12 Amps	1	Push to Reset	Panel Mount	50 VDC	250 V
SCHURTER Inc. TS-701-HT-3	CSA C22.2 UL1077	Thermal	3 A	1	Push to Reset	Panel Mount	50 VDC	250 V

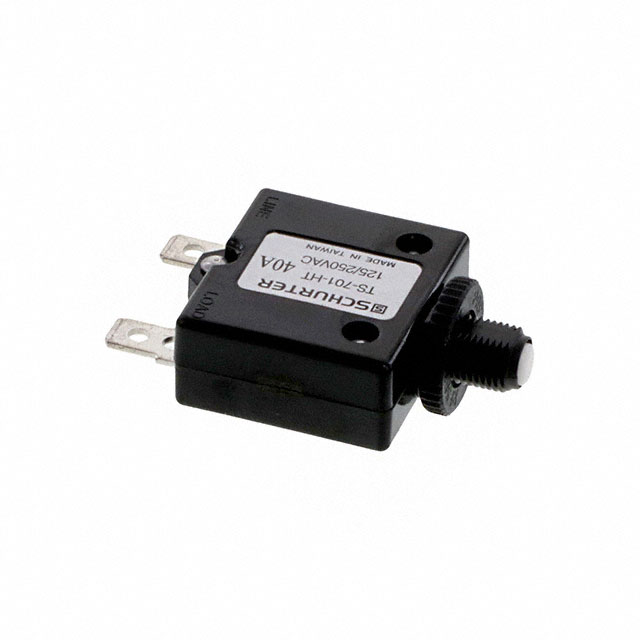

SCHURTER Inc. TS-701-HT-40P	CSA C22.2 UL1077	Thermal	40 A	1	Push to Reset	Panel Mount	50 VDC	250 V
SCHURTER Inc. TS-701-HM-40-KW	CSA C22.2 UL1077	Thermal	40 A	1	Pushbutton	Panel Mount	50 VDC	250 V

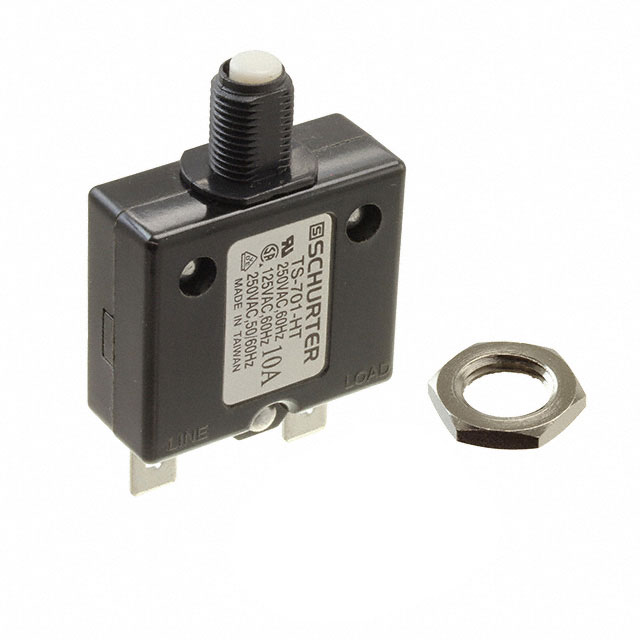

SCHURTER Inc. TS-701-HT-10H	CSA C22.2 UL1077	Thermal	10 A	1	Push to Reset	Panel Mount	50 VDC	250 V

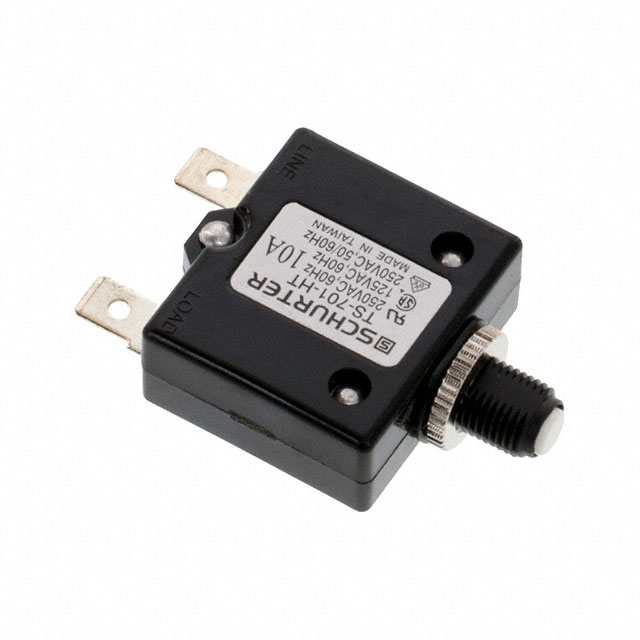

SCHURTER Inc. TS-701-HT-10-K		Thermal	10 A	1	Push to Reset	Panel Mount	50 VDC	250 V

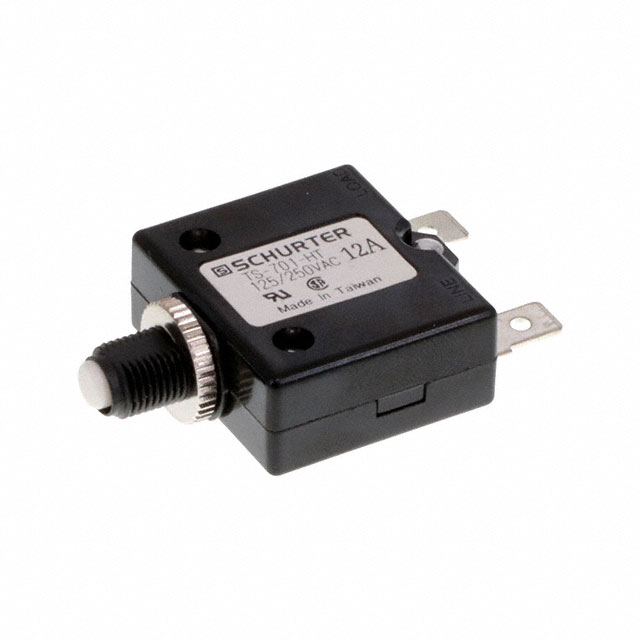

SCHURTER Inc. TS-701-HT-12-K		Thermal	12 Amps	1	Push to Reset	Panel Mount	50 VDC	250 V
SCHURTER Inc. TS-701-HT-8H		Thermal	8 A	1	Push to Reset	Panel Mount	50 VDC	250 V
