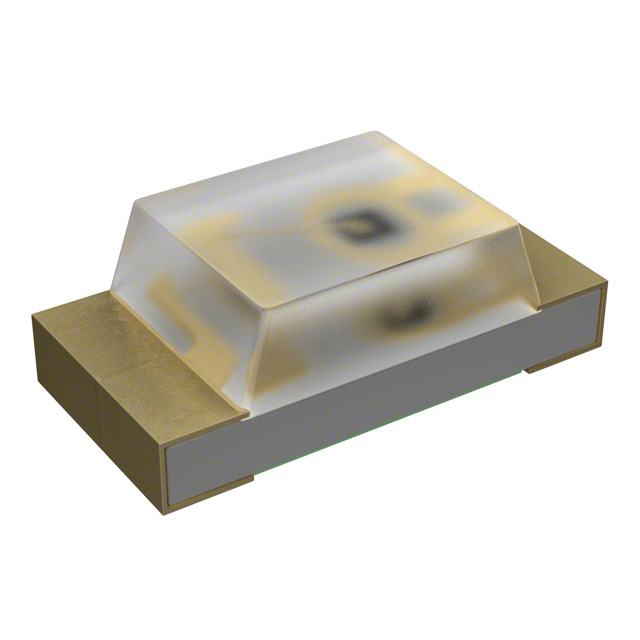

APT2012 Series

Catalog

LED LOW-POWER UNI-COLOR MEGA GREEN

Part	Lens Color	Viewing Angle	Configuration	Lens Size [y]	Lens Size [x]	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Mounting Type	Millicandela Rating	Wavelength - Dominant	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Lens Style	Color	Lens Transparency	Wavelength - Peak	Height (Max) [z]	Current - DC Forward (If) (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Radiant Intensity (Ie) Min @ If	Type	Wavelength	Orientation
Kingbright APT2012MGC	Colorless	120 °	Standard	1.25 mm	1.3 mm	Chip LED	2.1 V	Surface Mount	70 mcd	570 nm	0805	2 mm	1.25 mm	20 mA	Rectangle with Flat Top	Green	Clear
Kingbright APT2012EC	Colorless	120 °	Standard	1.25 mm	1.3 mm	Chip LED	2 V	Surface Mount	8 mcd	617 nm	0805	2 mm	1.25 mm	20 mA	Rectangle with Flat Top	Red	Clear	627 nm
Kingbright APT2012SGC	Colorless	120 °	Standard	1.25 mm	1.3 mm	Chip LED	2.2 V	Surface Mount	12 mcd	568 nm	0805	2 mm	1.25 mm	20 mA	Rectangle with Flat Top	Green	Clear	565 nm
Kingbright APT2012LSECK/J3-PRV	Colorless	140 °	Standard	1.25 mm	1.2 mm	2-SMD	1.8 V	Surface Mount	40 mcd	625 nm	0805	2 mm	1.25 mm	2 mA	Rectangle with Flat Top	Red	Clear	640 nm
Kingbright APT2012LVBC/D	Colorless	120 °	Standard	1.25 mm	1.2 mm	2-SMD	2.65 V	Surface Mount	24 mcd	470 nm	0805	2 mm	1.25 mm	2 mA	Rectangle with Flat Top	Blue	Clear	465 nm
Kingbright APT2012ZGC	Colorless	120 °	Standard	1.25 mm	1.3 mm	Chip LED	3.3 V	Surface Mount	600 mcd	525 nm	0805	2 mm	1.25 mm	20 mA	Rectangle with Flat Top	Green	Clear	515 nm
Kingbright APT2012SECK/J3-PRV	Colorless	120 °	Standard	1.25 mm	1.3 mm	Chip LED	2.2 V	Surface Mount	350 mcd	625 nm	0805	2 mm	1.25 mm	20 mA	Rectangle with Flat Top	Red	Clear	640 nm
Kingbright APT2012LSYCK/J3-PRV	Colorless	120 °	Standard	1.25 mm	1.2 mm	2-SMD	1.85 V	Surface Mount	25 mcd	590 nm	0805	2 mm	1.25 mm	2 mA	Rectangle with Flat Top	Yellow	Clear	590 nm

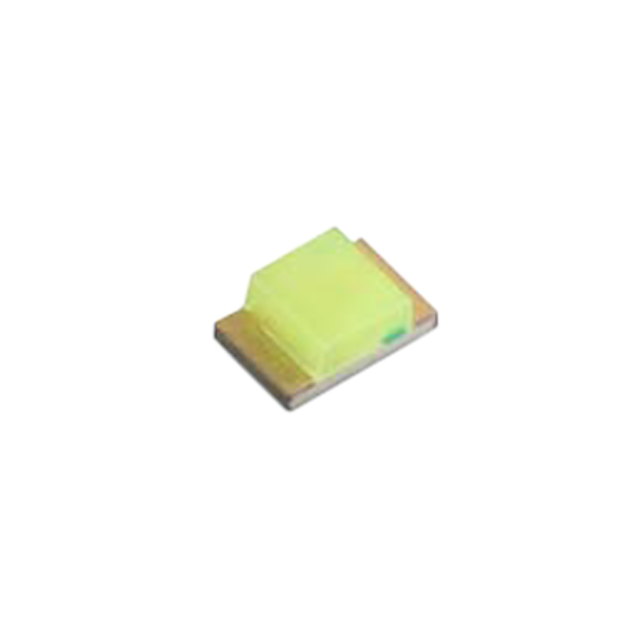

Kingbright APT2012PR54F/A-SC	Fluorescent Green	160 °	Standard	1.25 mm	1.2 mm	Chip LED	3.2 V	Surface Mount	120 mcd		0805	2 mm	1.25 mm	20 mA	Rectangle with Flat Top	Ice Blue	Diffused		0.85 mm
Kingbright APT2012SF4C-PRV		120 °					1.3 V	Surface Mount			0805									50 mA	85 C	-40 ¯C	0.8 mW/sr	Infrared (IR)	880 nm	Top View
