1124-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

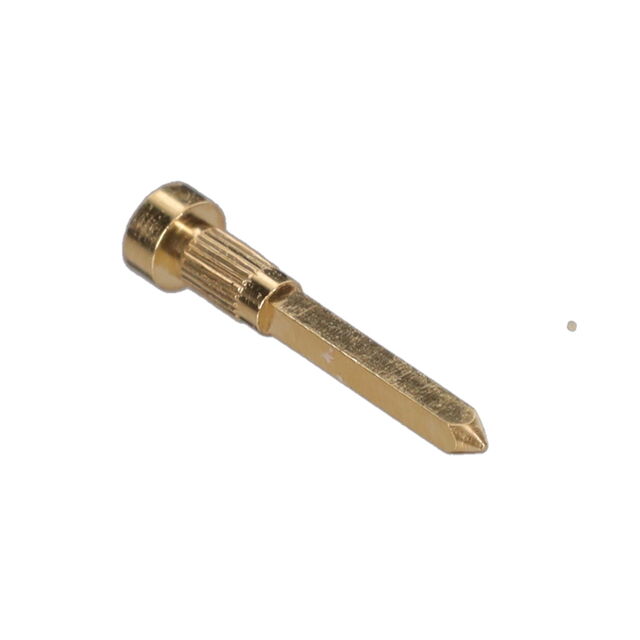

CONN PC PIN SQUARE 0.025 GOLD
| Part | Contact Material | Terminal Type | Length - Above Flange [x] | Length - Above Flange [x] | Contact Finish Thickness | Contact Finish Thickness | Length - Overall [x] | Length - Overall [x] | Mounting Type | Pin Size - Above Flange | Pin Size - Above Flange | Termination | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish | Terminal Style | Flange Diameter [diameter] | Flange Diameter [diameter] | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Brass Alloy | PC Pin | 0.29 in | 7.37 mm | 20 µin | 0.51 µm | 0.32 in | 8.13 mm | Through Hole | 0.025 in | 0.64 mm | Knurled Press-Fit Wire Wrap | 0.043 in | 1.09 mm | Gold | Single End | 0.068 in | 1.73 mm | Non-Insulated |
