400J Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

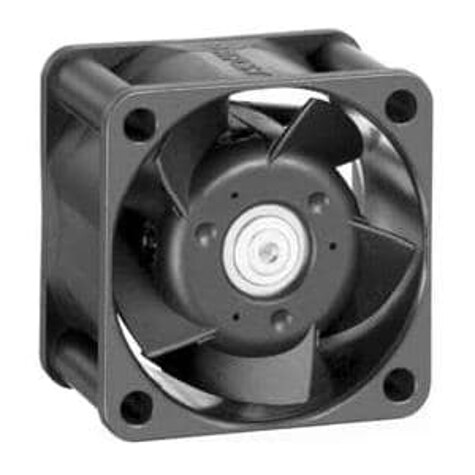

DC FANS TUBEAXIAL FAN, 40X40X25MM, 24VDC, 14.1CFM, 3.6W, 46DBA, 13000RPM, BALL BEARING
| Part | Width [y] | RPM | Voltage - Rated | Bearing Type | Air Flow | Air Flow | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Approval Agency | Power (Watts) | Fan Type | Weight [custom] | Weight [custom] | Termination | Size / Dimension [x] | Size / Dimension [z] | Noise |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 25.4 mm | 13000 RPM | 24 VDC | Ball | 14.1 CFM | 0.395 m³/min | 60 °C | 60 °C | -4 °F | -20 ░C | CSA UL VDE | 3.6 W | Tubeaxial | 0.111 lb | 50.35 g | 2 Wire Leads | 40 mm | 40 mm | 46 dB(A) |
