EZM28 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

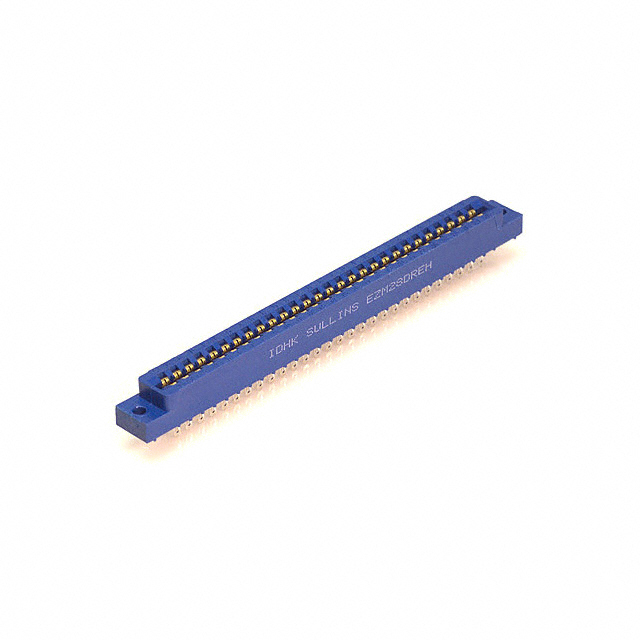

CONN EDGE DUAL FMALE 56POS 0.156
| Part | Contact Material | Card Thickness | Card Thickness | Contact Finish | Number of Positions/Bay/Row [custom] | Gender | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Contact Type | Color | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Termination | Pitch [x] | Pitch [x] | Material - Insulation | Number of Positions | Read Out |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Phosphor Bronze | 0.062 in | 1.57 mm | Gold | 28 | Female | 2 | 125 °C | -65 ░C | Non Specified - Dual Edge | Full Bellows | Blue | 10 Áin | 0.25 Ám | 0.125 in | 3.18 mm | Top Mount Opening Unthreaded | Solder Eyelet(s) | 0.156 in | 3.96 mm | Polybutylene Terephthalate (PBT) | 56 | Dual |
