DEBB33D Series

Catalog

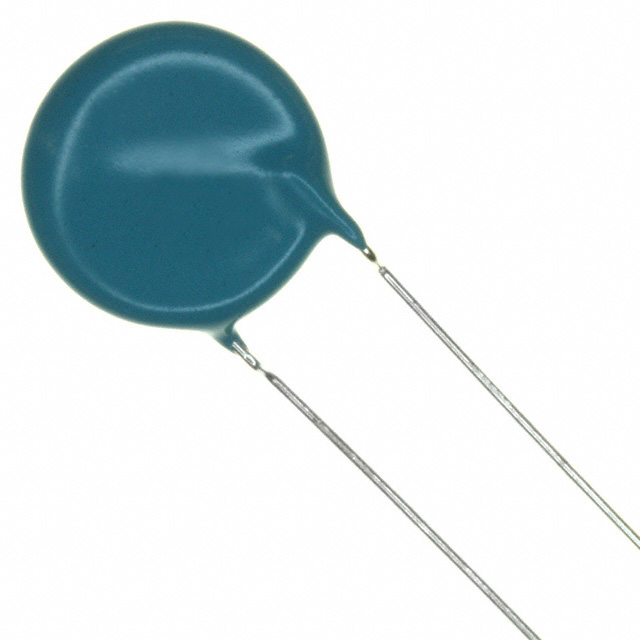

CAP CER 2200PF 2KV RADIAL

Part	Features	Mounting Type	Applications	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Voltage - Rated	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Style	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Temperature Coefficient	Size / Dimension	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
Murata Electronics DEBB33D222KN2A	High Voltage	Through Hole	General Purpose	Disc Radial	85 °C	-25 °C	2000 V	2 kV	0.197 "	5 mm	0.394 in	10 mm	Straight	10 %	0.512 "	13 mm	2200 pF	B
Murata Electronics DEBB33D472KA3B	High Voltage	Through Hole	General Purpose	Disc Radial	85 °C	-25 °C	2000 V	2 kV	0.295 in	7.5 mm	0.591 in		Formed Leads	10 %	0.709 in	18 mm	0.0047 µF	B	15 mm
Murata Electronics DEBB33D681KN2A	High Voltage	Through Hole	General Purpose	Disc Radial	85 °C	-25 °C	2000 V	2 kV	0.197 "	5 mm	0.276 in	7 mm	Straight	10 %			680 pF	B		10 mm	0.394 in
Murata Electronics DEBB33D332KN3A	High Voltage	Through Hole	General Purpose	Disc Radial	85 °C	-25 °C	2000 V	2 kV	0.295 in	7.5 mm	0.472 "	12 mm	Formed Leads	10 %	0.591 "	15 mm	0.0033 µF	B
Murata Electronics DEBB33D472KN7A	High Voltage	Through Hole	General Purpose	Disc Radial	85 °C	-25 °C	2000 V	2 kV	0.295 in	7.5 mm	0.591 in		Formed Leads	10 %	0.709 in	18 mm	0.0047 µF	B	15 mm
Murata Electronics DEBB33D101KP2A	High Voltage	Through Hole	General Purpose	Disc Radial	85 °C	-25 °C	2000 V	2 kV	0.197 "	5 mm	0.177 "	4.5 mm	Straight	10 %	0.295 in		100 pF	B		7.5 mm
Murata Electronics DEBB33D331KP2A	High Voltage	Through Hole	General Purpose	Disc Radial	85 °C	-25 °C	2000 V	2 kV	0.197 "	5 mm	0.197 in	5 mm	Straight	10 %			330 pF	B		8 mm	0.315 in
Murata Electronics DEBB33D102KA2B	High Voltage	Through Hole	General Purpose	Disc Radial	85 °C	-25 °C	2000 V	2 kV	0.197 "	5 mm	0.315 in	8 mm	Formed Leads	10 %	0.433 in	11 mm	0.001 µF	B
Murata Electronics DEBB33D331KC1B	High Voltage	Through Hole	General Purpose	Disc Radial	85 °C	-25 °C	2000 V	2 kV	0.197 "	5 mm	0.197 in	5 mm	Straight	10 %			330 pF	B		8 mm	0.315 in
Murata Electronics DEBB33D152KA2B	High Voltage	Through Hole	General Purpose	Disc Radial	85 °C	-25 °C	2000 V	2 kV	0.197 "	5 mm	0.354 in	9 mm	Formed Leads	10 %			1500 pF	B			0.472 in	12 mm
