QBLP653 Series
Manufacturer: QT Brightek (QTB)
Beta
⌘K

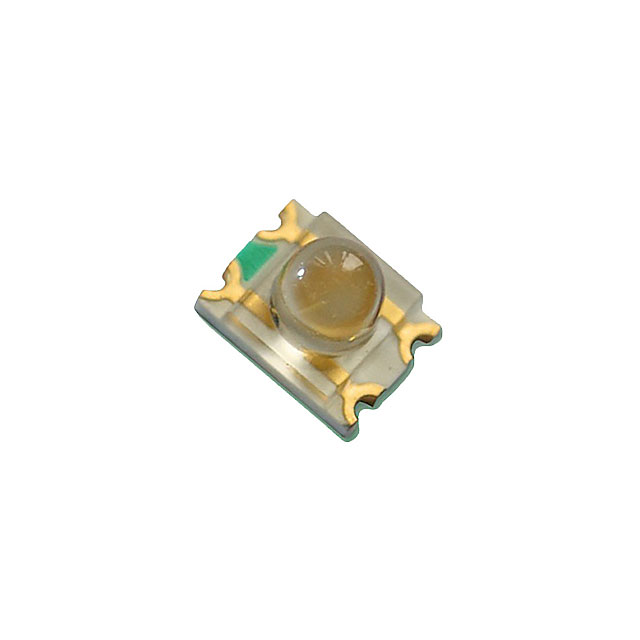

LED GREEN/RED CLEAR 1208 SMD
| Part | Lens Style | Supplier Device Package | Color | Lens Transparency | Size / Dimension [x] | Size / Dimension [y] | Height (Max) [z] | Lens Size [diameter] | Current - Test [custom] | Current - Test [custom] | Wavelength - Dominant | Mounting Type | Viewing Angle | Millicandela Rating | Package / Case | Package / Case | Configuration | Lens Color | Voltage - Forward (Vf) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 QT Brightek (QTB) | Round with Domed Top | 1208 | Green Red | Clear | 3.2 mm | 2.4 mm | 2.6 mm | 1.8 mm Dia | 20 mA | 20 mA | 570 nm 640 nm | Surface Mount | 60 ° | 30 mcd 40 mcd | 3224 Metric | 1209 | Independent | Colorless | 2 V 2 V |
