746-023 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 23POS 0.125

Part	Material - Insulation	Termination Rows	Pitch	Pitch	Read Out	Contact Finish	Number of Positions/Bay/Row	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Color	Gender	Mounting Type	Card Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Number of Positions	Contact Type
EDAC Inc. 746-023-540-501	Polyester Thermoplastic	1	3.18 mm	0.125 in	Single	Gold	23	-40 C	105 ░C	Press-Fit Wire Wrap	Black	Female	Through Hole	Non Specified - Single Edge	1	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	23	Cantilever
EDAC Inc. 746-023-520-506	Polyester Thermoplastic	1	3.18 mm	0.125 in	Single	Gold	23	-40 C	105 ░C	Press-Fit	Black	Female	Through Hole	Non Specified - Single Edge	1	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	23	Cantilever

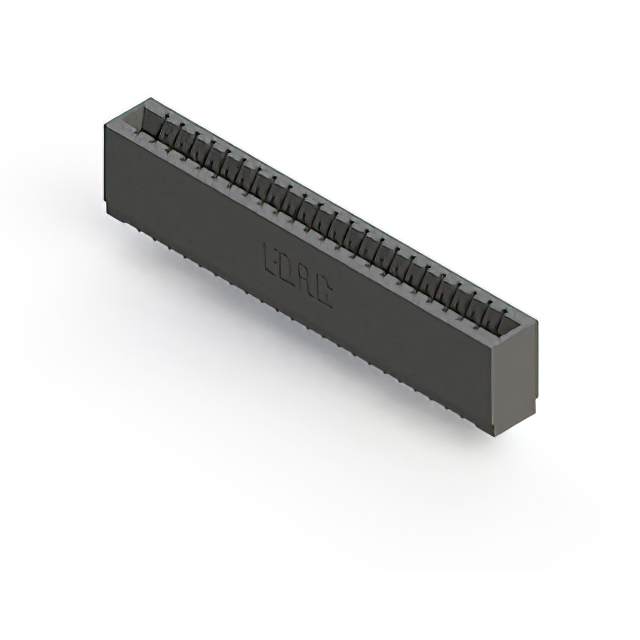

EDAC Inc. 746-023-541-501	Polyester Thermoplastic	1	3.18 mm	0.125 in	Single	Gold	23	-40 C	105 ░C	Press-Fit Wire Wrap	Black	Female	Through Hole	Non Specified - Single Edge	1	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	23	Cantilever
EDAC Inc. 746-023-525-106	Polyester Thermoplastic	1	3.18 mm	0.125 in	Single	Gold	23	-40 C	105 ░C	Press-Fit	Black	Female	Through Hole	Non Specified - Single Edge	1	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	23	Cantilever
EDAC Inc. 746-023-525-501	Polyester Thermoplastic	1	3.18 mm	0.125 in	Single	Gold	23	-40 C	105 ░C	Press-Fit	Black	Female	Through Hole	Non Specified - Single Edge	1	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	23	Cantilever
EDAC Inc. 746-023-525-101	Polyester Thermoplastic	1	3.18 mm	0.125 in	Single	Gold	23	-40 C	105 ░C	Press-Fit	Black	Female	Through Hole	Non Specified - Single Edge	1	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	23	Cantilever
EDAC Inc. 746-023-520-106	Polyester Thermoplastic	1	3.18 mm	0.125 in	Single	Gold	23	-40 C	105 ░C	Press-Fit	Black	Female	Through Hole	Non Specified - Single Edge	1	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	23	Cantilever

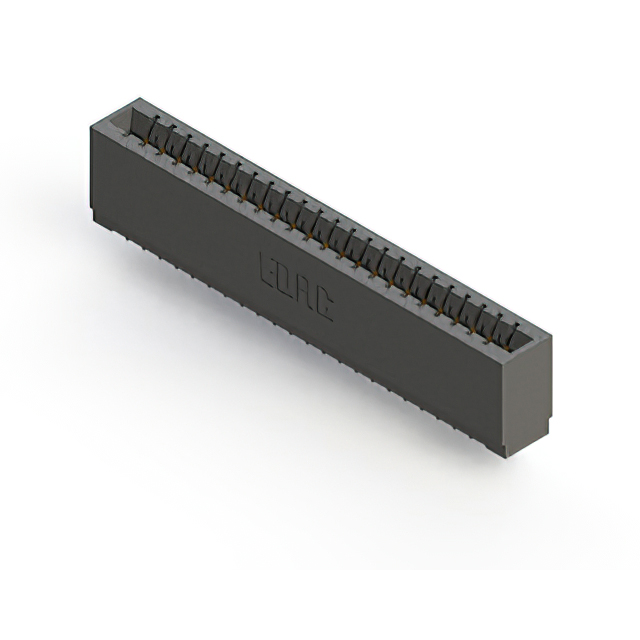

EDAC Inc. 746-023-545-101	Polyester Thermoplastic	1	3.18 mm	0.125 in	Single	Gold	23	-40 C	105 ░C	Press-Fit Wire Wrap	Black	Female	Through Hole	Non Specified - Single Edge	1	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	23	Cantilever

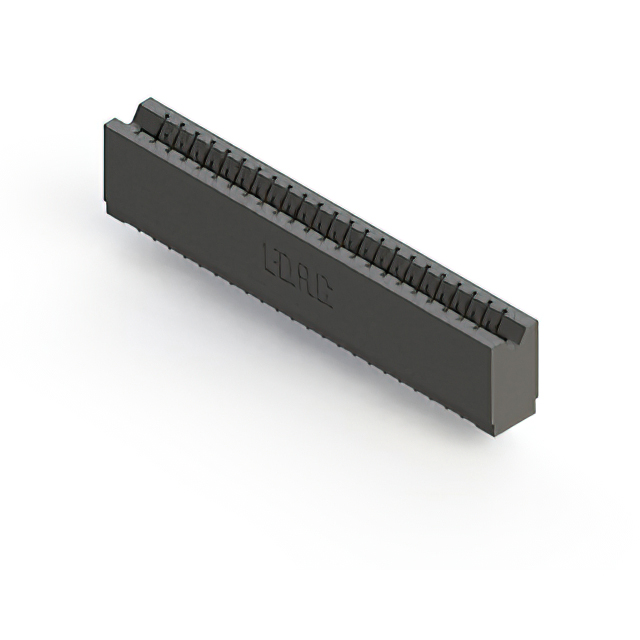

EDAC Inc. 746-023-541-106	Polyester Thermoplastic	1	3.18 mm	0.125 in	Single	Gold	23	-40 C	105 ░C	Press-Fit Wire Wrap	Black	Female	Through Hole	Non Specified - Single Edge	1	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	23	Cantilever
EDAC Inc. 746-023-520-501	Polyester Thermoplastic	1	3.18 mm	0.125 in	Single	Gold	23	-40 C	105 ░C	Press-Fit	Black	Female	Through Hole	Non Specified - Single Edge	1	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	23	Cantilever
