000948 Series

Manufacturer: Molex

Catalog

Catalog

HEADERS & WIRE HOUSINGS KK 156 PCB ASSY TOP 06 CKTS TIN

...

Part	Contact Shape	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Insulation Material	Number of Positions Loaded	Features	Style	Termination	Contact Type	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Insulation Height	Insulation Height	Insulation Color	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Number of Positions	Mounting Type	Material Flammability Rating	Number of Rows	Contact Finish - Mating	Insulation Height [custom]	Insulation Height [custom]

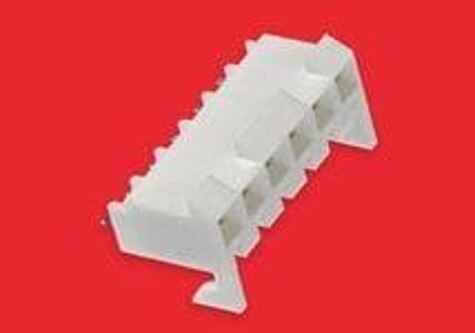

Molex 0009482063	Square	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	Brass	Polyester	All	Board Hooks	Board to Board Cable	Solder	Female Socket	4.5 A	3.05 mm	0.12 in	3.96 mm	0.156 in	Tin	0.449 in	11.4 mm	Natural	Receptacle	100 çin	2.54 çm	Locking Ramp	80 °C	-40 C	600 V	6	Through Hole	UL94 V-0	1
Molex 0009483154	Square	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	Brass	Polyester	All	Board Hooks	Board to Board Cable	Solder	Female Socket	4 A	3.18 mm	0.125 in	3.96 mm	0.156 in	Tin	0.449 in	11.4 mm	Natural	Receptacle Bottom Entry	15 µin	0.38 µm	Locking Ramp	80 °C	-40 C	600 V	15	Through Hole	UL94 V-0	1	Gold
Molex 0009482143	Square	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	Brass	Polyester	All	Board Hooks	Board to Board Cable	Solder	Female Socket	4.5 A	3.05 mm	0.12 in	3.96 mm	0.156 in	Tin	0.449 in	11.4 mm	Natural	Receptacle	100 çin	2.54 çm	Locking Ramp	80 °C	-40 C	600 V	14	Through Hole	UL94 V-0	1
Molex 0009482091	Square	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	Brass	Polyester	All	Board Hooks	Board to Board Cable	Solder	Female Socket	4.5 A	3.68 mm	0.145 in	3.96 mm	0.156 in	Tin			Natural	Receptacle	100 çin	2.54 çm	Locking Ramp	80 °C	-40 C	600 V	9	Board Edge Right Angle Through Hole	UL94 V-0	1		0.308 "	7.82 mm
Molex 0009485045	Square	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	Phosphor Bronze	Polyester	All	Board Hooks	Board to Board Cable	Solder	Female Socket	5 A	3.05 mm	0.12 in	3.96 mm	0.156 in	Tin	0.449 in	11.4 mm	Natural	Receptacle	15 µin	0.38 µm	Locking Ramp	105 ░C	-40 C	600 V	4	Through Hole	UL94 V-0	1	Gold
Molex 0009482122	Square	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	Brass	Polyester	All	Board Hooks	Board to Board Cable	Solder	Female Socket	4 A	3.18 mm	0.125 in	3.96 mm	0.156 in	Tin	0.449 in	11.4 mm	Natural	Receptacle Bottom Entry	100 çin	2.54 çm	Locking Ramp	80 °C	-40 C	600 V	12	Through Hole	UL94 V-0	1
Molex 0009481095	Square	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	Phosphor Bronze	Polyester	All	Board Hooks	Board to Board Cable	Solder	Female Socket	5 A	3.05 mm	0.12 in	3.96 mm	0.156 in	Tin	0.449 in	11.4 mm	Natural	Receptacle	15 µin	0.38 µm	Locking Ramp	105 ░C	-40 C	600 V	9	Through Hole	UL94 V-0	1	Gold
Molex 0009482141	Square	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	Brass	Polyester	All	Board Hooks	Board to Board Cable	Solder	Female Socket	4.5 A	3.68 mm	0.145 in	3.96 mm	0.156 in	Tin			Natural	Receptacle	100 çin	2.54 çm	Locking Ramp	80 °C	-40 C	600 V	14	Board Edge Right Angle Through Hole	UL94 V-0	1		0.308 "	7.82 mm

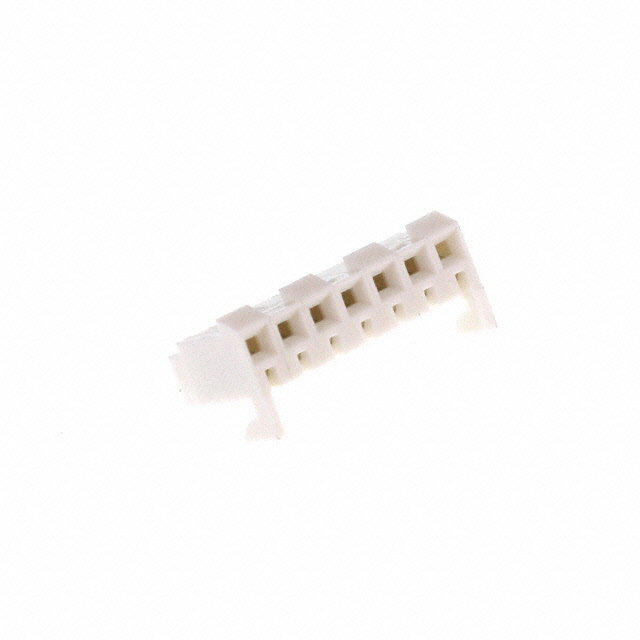

Molex 0009484078	Square	Automotive General Purpose Medical Telecommunications	1.52 µm	60 µin	Phosphor Bronze	Polyester	All	Board Hooks	Board to Board Cable	Solder	Female Socket	5 A	3.05 mm	0.12 in	3.96 mm	0.156 in	Tin	0.449 in	11.4 mm	Natural	Receptacle	60 µin	1.52 Ám	Locking Ramp	105 ░C	-40 C	600 V	7	Through Hole	UL94 V-0	1

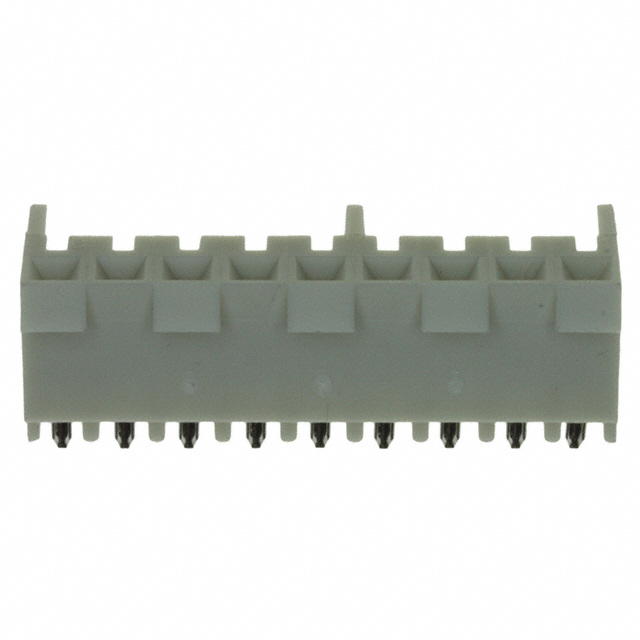

Molex 0009484098	Square	Automotive General Purpose Medical Telecommunications	1.52 µm	60 µin	Phosphor Bronze	Polyester	All	Board Hooks	Board to Board Cable	Solder	Female Socket	5 A	3.05 mm	0.12 in	3.96 mm	0.156 in	Tin	0.449 in	11.4 mm	Natural	Receptacle	60 µin	1.52 Ám	Locking Ramp	105 ░C	-40 C	600 V	9	Through Hole	UL94 V-0	1
