746-030 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 30POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Mounting Type	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Termination	Read Out	Contact Type	Color	Number of Rows [custom]	Contact Finish	Number of Positions/Bay/Row	Contact Material	Gender	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Termination Rows	Number of Rows

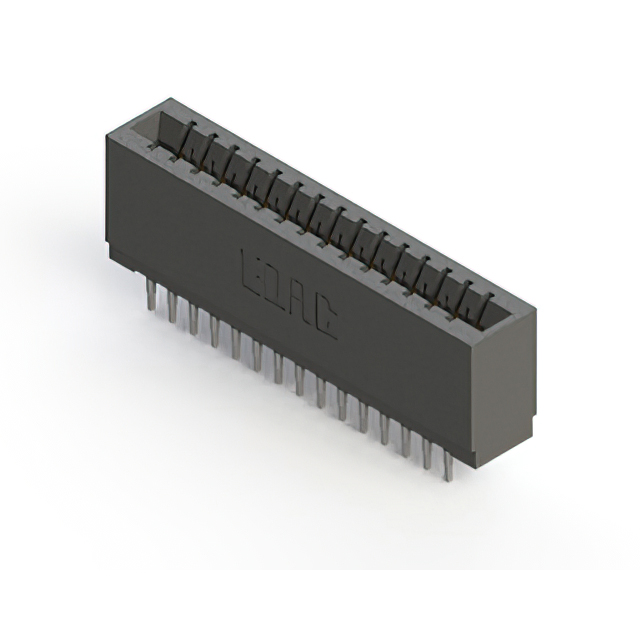

EDAC Inc. 746-030-527-601	Polyester Thermoplastic	2	Through Hole	Non Specified - Dual Edge	-40 C	105 ░C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Dual	Cantilever	Black	2	Gold	15	Copper Alloy	Female	30 Áin	0.76 Ám	30
EDAC Inc. 746-030-527-206	Polyester Thermoplastic	2	Through Hole	Non Specified - Dual Edge	-40 C	105 ░C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Dual	Cantilever	Black	2	Gold	15	Copper Alloy	Female	30 Áin	0.76 Ám	30

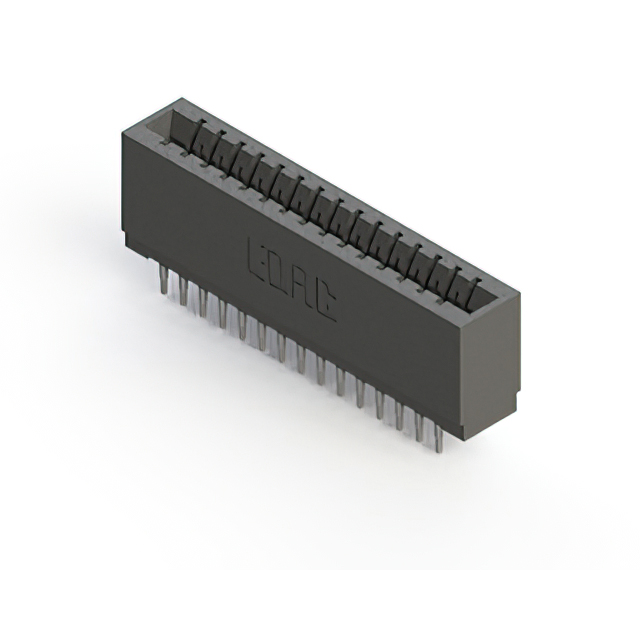

EDAC Inc. 746-030-540-601	Polyester Thermoplastic	2	Through Hole	Non Specified - Dual Edge	-40 C	105 ░C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Dual	Cantilever	Black	2	Gold	15	Copper Alloy	Female	30 Áin	0.76 Ám	30

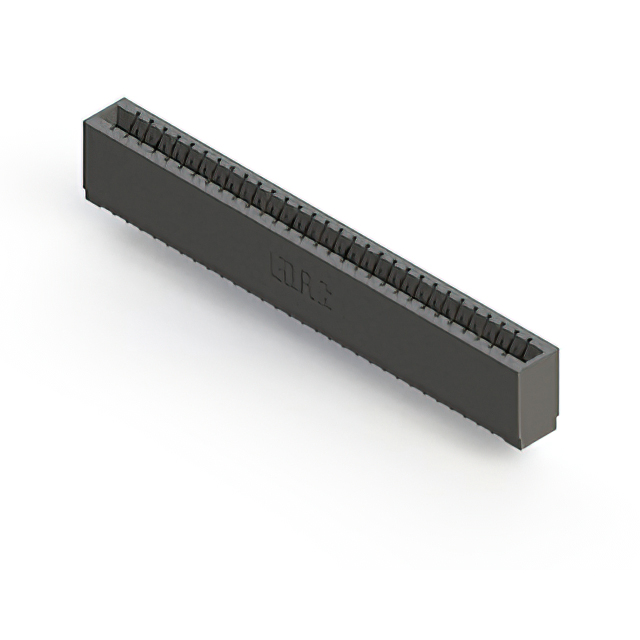

EDAC Inc. 746-030-541-501	Polyester Thermoplastic		Through Hole	Non Specified - Single Edge	-40 C	105 ░C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Single	Cantilever	Black		Gold	30	Copper Alloy	Female	30 Áin	0.76 Ám	30	1	1

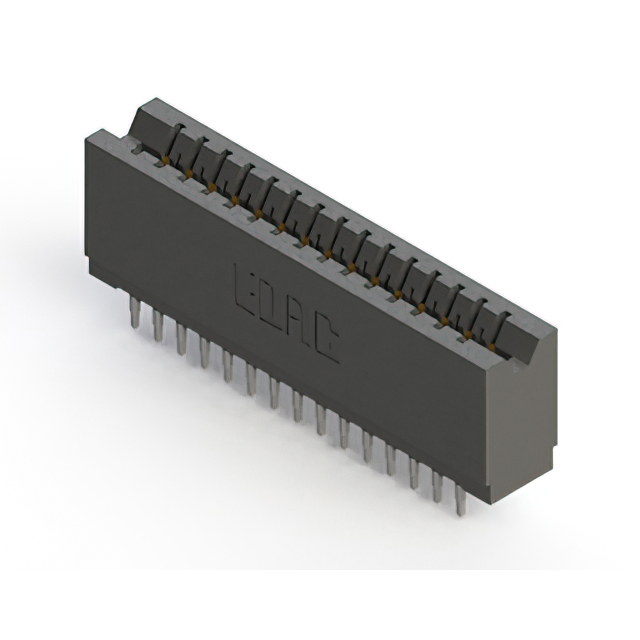

EDAC Inc. 746-030-525-206	Polyester Thermoplastic	2	Through Hole	Non Specified - Dual Edge	-40 C	105 ░C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Dual	Cantilever	Black	2	Gold	15	Copper Alloy	Female	30 Áin	0.76 Ám	30
EDAC Inc. 746-030-527-501	Polyester Thermoplastic		Through Hole	Non Specified - Single Edge	-40 C	105 ░C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Single	Cantilever	Black		Gold	30	Copper Alloy	Female	30 Áin	0.76 Ám	30	1	1
EDAC Inc. 746-030-553-201	Polyester Thermoplastic	2	Through Hole	Non Specified - Dual Edge	-40 C	105 ░C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Dual	Cantilever	Black	2	Gold	15	Copper Alloy	Female	30 Áin	0.76 Ám	30
EDAC Inc. 746-030-540-501	Polyester Thermoplastic		Through Hole	Non Specified - Single Edge	-40 C	105 ░C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Single	Cantilever	Black		Gold	30	Copper Alloy	Female	30 Áin	0.76 Ám	30	1	1

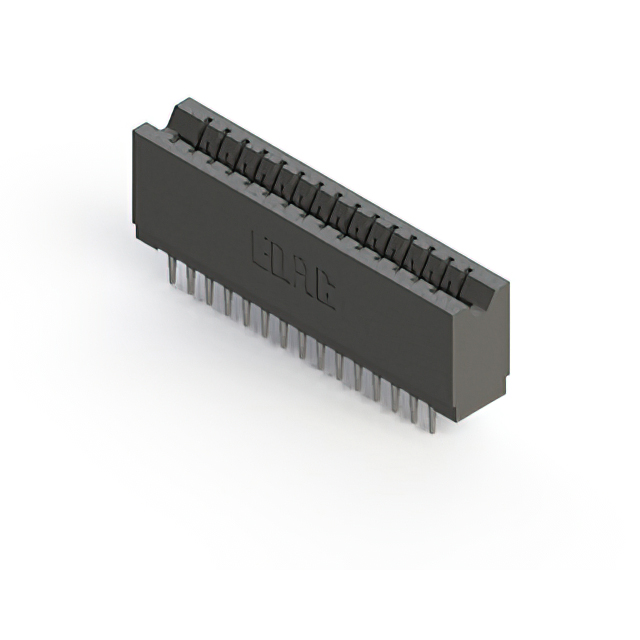

EDAC Inc. 746-030-553-606	Polyester Thermoplastic	2	Through Hole	Non Specified - Dual Edge	-40 C	105 ░C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Dual	Cantilever	Black	2	Gold	15	Copper Alloy	Female	30 Áin	0.76 Ám	30
EDAC Inc. 746-030-520-206	Polyester Thermoplastic	2	Through Hole	Non Specified - Dual Edge	-40 C	105 ░C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Dual	Cantilever	Black	2	Gold	15	Copper Alloy	Female	30 Áin	0.76 Ám	30
