OSTTC08 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

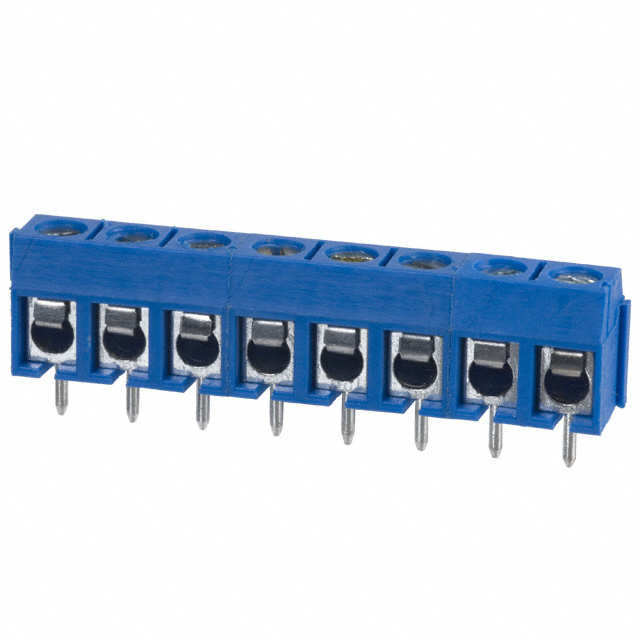

TERM BLK 8P SIDE ENT 5.08MM PCB
| Part | Contact Material - Plating | Screw Thread | Clamp Material - Plating [custom] | Screw Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Torque - Screw | Torque - Screw | Housing Material | Mounting Type | Mating Orientation | Wire Gauge [Min] | Wire Gauge [Max] | Positions Per Level | Number of Levels | Voltage | Pitch | Pitch | Features | Color | Current | Wire Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | Tin Plated | M2.6 | Stainless Steel | Steel - Zinc Plated | -30 ░C | 105 ░C | 2.6 Lb-In | 0.3 Nm | Thermoplastic | Through Hole | Horizontal with Board | 14 AWG | 22 AWG | 8 | 1 | 300 VDC | 5.08 mm | 0.2 in | Interlocking (Side) | Blue | 15 A | Screw - Leaf Spring Wire Guard |
