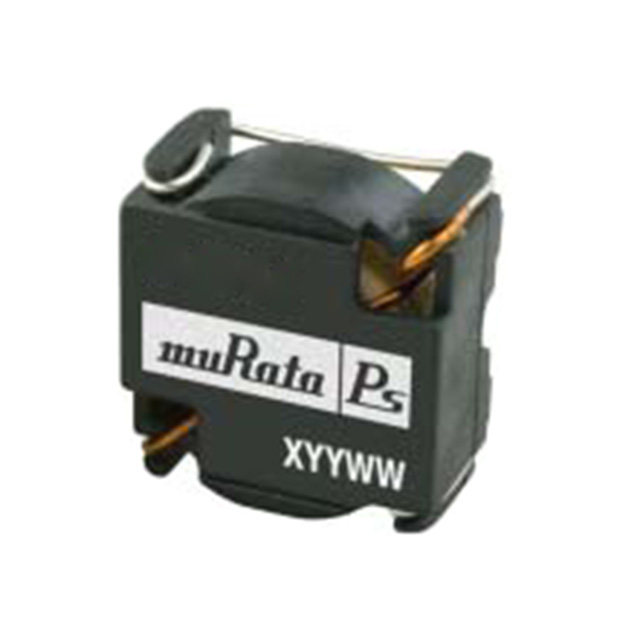

41 Series
Manufacturer: Murata Electronics
Beta
⌘K
FIXED IND 47UH 2.2A 62 MOHM SMD
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Inductance Frequency - Test | Type | Inductance | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Current Rating (Amps) | Mounting Type | Package / Case | DC Resistance (DCR) | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | 0.66 " | 0.69 in | 16.76 mm | 17.53 mm | 10 kHz | Toroidal | 47 µH | 85 °C | -40 C | Unshielded | 2.2 A | Surface Mount | Nonstandard | 62 mOhm | |
Murata Electronics | 0.66 " | 0.69 in | 16.76 mm | 17.53 mm | 10 kHz | Toroidal | 22 µH | 85 °C | -40 C | Unshielded | 3.3 A | Surface Mount | Nonstandard | 33 mOhm | |
Murata Electronics | 0.66 " | 0.69 in | 16.76 mm | 17.53 mm | 10 kHz | Toroidal | 330 µH | 85 °C | -40 C | Unshielded | 830 mA | Surface Mount | Nonstandard | 462 mOhm | |
Murata Electronics | 0.66 " | 0.69 in | 16.76 mm | 17.53 mm | 10 kHz | Toroidal | 33 µH | 85 °C | -40 C | Unshielded | 2.7 A | Surface Mount | Nonstandard | 38 mOhm | |
Murata Electronics | 0.66 " | 0.69 in | 16.76 mm | 17.53 mm | 10 kHz | Toroidal | 10 µH | 85 °C | -40 C | Unshielded | 4.7 A | Surface Mount | Nonstandard | 24 mOhm | |
Murata Electronics | 0.66 " | 0.69 in | 16.76 mm | 17.53 mm | 10 kHz | Toroidal | 220 µH | 85 °C | -40 C | Unshielded | 1.03 A | Surface Mount | Nonstandard | 377 mOhm | |
Murata Electronics | 0.66 " | 0.69 in | 16.76 mm | 17.53 mm | 10 kHz | Toroidal | 100 µH | 85 °C | -40 C | Unshielded | 1.47 A | Surface Mount | Nonstandard | 158 mOhm | |
Murata Electronics | 0.66 " | 0.69 in | 16.76 mm | 17.53 mm | 10 kHz | Toroidal | 150 µH | 85 °C | -40 C | Unshielded | 1.16 A | Surface Mount | Nonstandard | 247 mOhm |
