6452 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

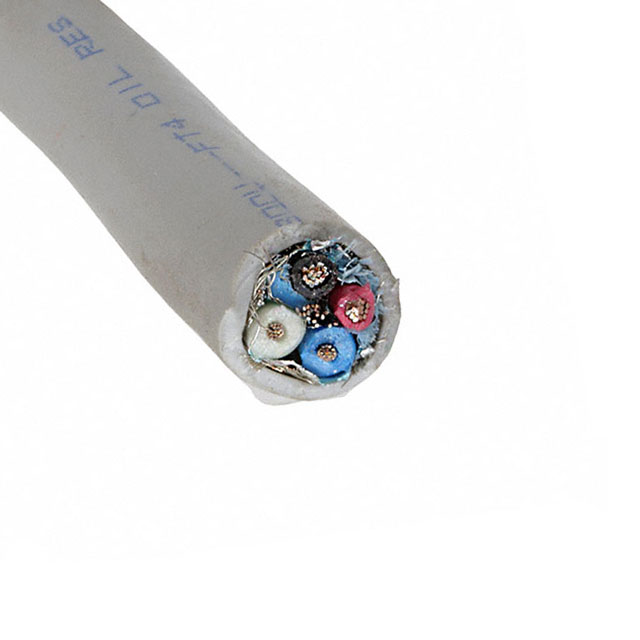

MULTI-PAIR 4COND 22/24AWG 1000'
| Part | Shield Material | Shield Coverage | Conductor Material | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage | Jacket Color | Features | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Conductor Insulation | Cable Type | Jacket (Insulation) Material | Voltage | Number of Conductors | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | Copper Tinned | Braid Foil | 0.28 in | 7.11 mm | Communication Control | Slate | Oil Resistant | 36 | 19 | 22 AWG 24 AWG | Poly-Vinyl Chloride (PVC) | Multi-Pair | Poly-Vinyl Chloride (PVC) | 300 VDC | 4 | 304.8 m | 1000 ft |
ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | Copper Tinned | Braid Foil | 0.28 in | 7.11 mm | Communication Control | Slate | Oil Resistant | 36 | 19 | 22 AWG 24 AWG | Poly-Vinyl Chloride (PVC) | Multi-Pair | Poly-Vinyl Chloride (PVC) | 300 VDC | 4 | 152.4 m | 500 ft |
