2337994 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN JACK 2PORT 100 BASE-T PCB
| Part | Applications | Height Above Board | Height Above Board | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Tab Direction | Shielding | Mounting Type | Contact Material | Contact Finish | Termination | Features | Number of Ports | Contact Finish Thickness | Contact Finish Thickness | Shield Material | LED Color | Housing Material | Number of Rows | Height Above Board [z] | Height Above Board [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

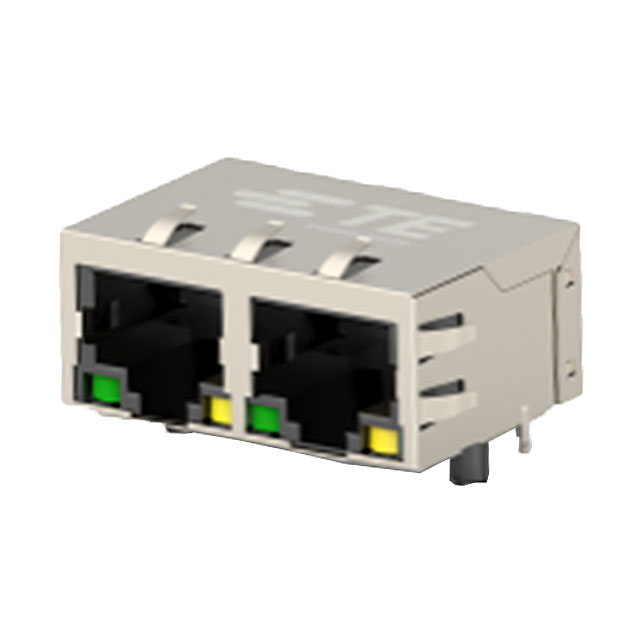

 TE Connectivity Raychem Cable Protection | 10/100 Base-T AutoMDIX Power over Ethernet (PoE) | 0.531 in | 13.49 mm | 90 ° | 85 °C | -40 °C | RJ45 | Up | Shielded EMI Finger | Through Hole | Copper Alloy | Gold | Solder | Board Guide | 2 | 0.76 Ám | 30 Áin | Brass | Green Yellow | Liquid Crystal Polymer (LCP) | 1 | ||

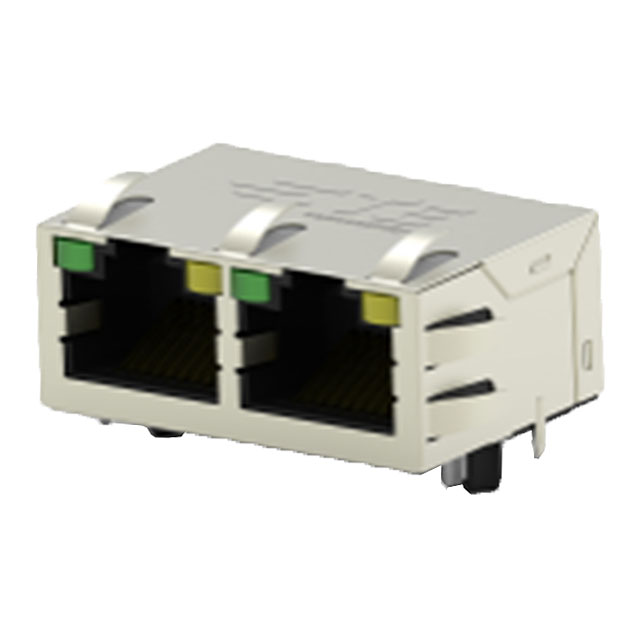

 TE Connectivity Raychem Cable Protection | 10/100 Base-T AutoMDIX Power over Ethernet (PoE) | 90 ° | 85 °C | -40 °C | RJ45 | Down | Shielded EMI Finger | Through Hole | Copper Alloy | Gold | Solder | Board Guide | 2 | 0.76 Ám | 30 Áin | Brass | Green Yellow | Liquid Crystal Polymer (LCP) | 1 | 0.539 in | 13.69 mm |
