G2RG-2A Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPST 10A 24V
| Part | Coil Type | Approval Agency | Load - Max Switching [Max] | Contact Material | Coil Current | Relay Type | Must Release Voltage | Coil Voltage | Coil Resistance | Seal Rating | Contact Rating (Current) | Termination Style | Operate Time | Switching Voltage | Must Operate Voltage | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

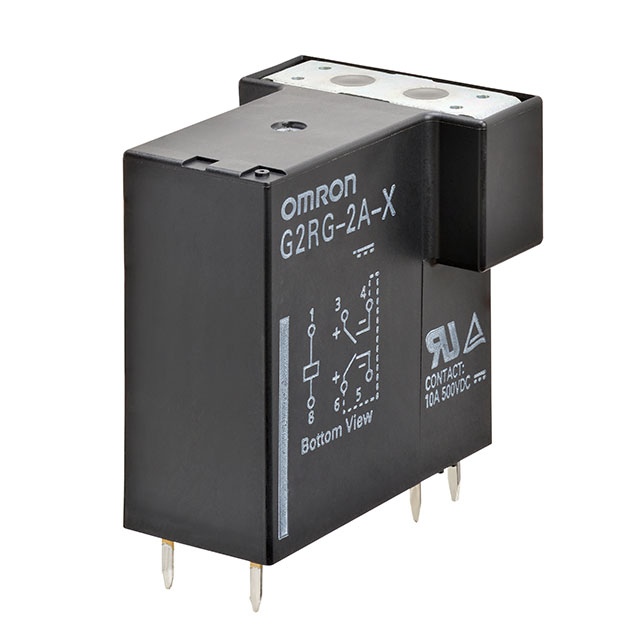

 Omron Electronics Inc-EMC Div | Non Latching | TUV UR | 5000 W | Cadmium Free Silver Alloy | 33.3 mA | General Purpose | 2.4 VDC | 24 VDC | 720 Ohms | Sealed - Flux Protection | 10 A | PC Pin | 15 ms | 500 VDC | 19.2 VDC | 5 ms | 85 °C | -40 °C | DPST-NO (2 Form A) | Through Hole |

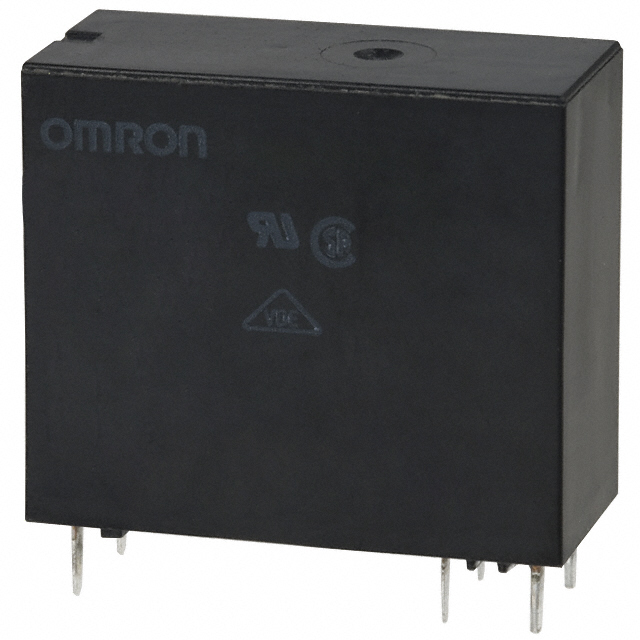

 Omron Electronics Inc-EMC Div | Non Latching | CSA UR VDE | Silver Tin Oxide (AgSnO) | 66.7 mA | General Purpose | 1.2 VDC | 12 VDC | 180 Ohms | Sealed - Fully | 8 A | PC Pin | 15 ms | 125 VDC 380 VAC | 9.6 VDC | 5 ms | 70 °C | -40 °C | DPST-NO (2 Form A) | Through Hole |
