770621 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

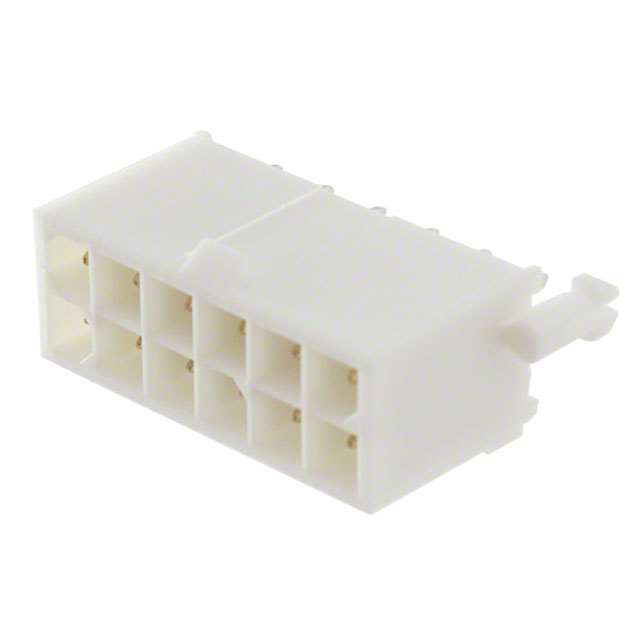

CONN HEADER VERT 12POS 4.14MM
| Part | Contact Finish Thickness - Post | Applications | Voltage Rating | Material Flammability Rating | Connector Type | Style | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Insulation Color | Number of Positions | Mounting Type | Number of Positions Loaded | Contact Finish - Mating | Fastening Type | Contact Finish - Post | Contact Shape | Contact Type | Insulation Material | Current Rating (Amps) | Features | Contact Material | Number of Rows [custom] | Pitch - Mating | Pitch - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.81 Ám | General Purpose | 600 VAC | UL94 V-0 | Header | Board to Cable/Wire | -20 ░C | 105 ░C | Solder | 13.5 mm | 0.531 in | 4.45 mm | 0.175 in | White | 12 | Through Hole | All | Gold | Locking Ramp | Tin-Lead | Circular | Male Pin | Nylon Polyamide (PA) | Varies by Wire Gauge | Board Lock | Brass | 2 | 0.163 in | 4.14 mm | 4.14 mm | 0.163 in | 0.76 Ám | 30 Áin | Shrouded - 4 Wall |
