A-DF 15 Series
Manufacturer: Assmann WSW Components
Beta
⌘K
CONN D-SUB RCPT 15POS R/A SLDR
| Part | Voltage Rating | Dielectric Material | Color | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Flange Feature | Material Flammability Rating | Number of Rows [custom] | Features | Backset Spacing | Backset Spacing | Connector Type | Number of Positions | Contact Type | Current Rating (Amps) | Contact Finish Thickness | Shell Size, Connector Layout | Contact Finish | Mounting Type | Connector Style | Ingress Protection | Wire Gauge [Max] | Wire Gauge [Min] | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

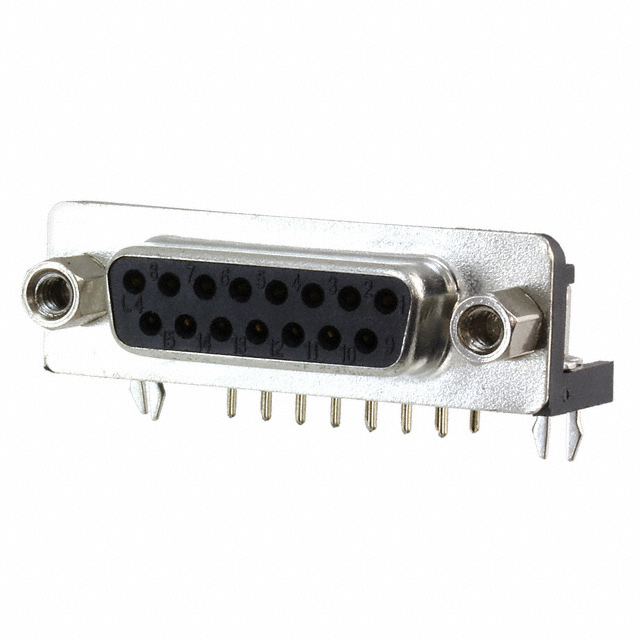

 Assmann WSW Components | 250 V | Polybutylene Terephthalate (PBT) Glass Filled | Black | Copper Alloy | -55 C | 105 ░C | Solder | 4-40 Mating Side Female Screwlock | UL94 V-0 | 2 | Board Lock | 0.319 in | 8.1 mm | Receptacle Female Sockets | 15 | Signal | 3 A | Flash | 2 | Gold | Right Angle Through Hole | D-Sub | ||||

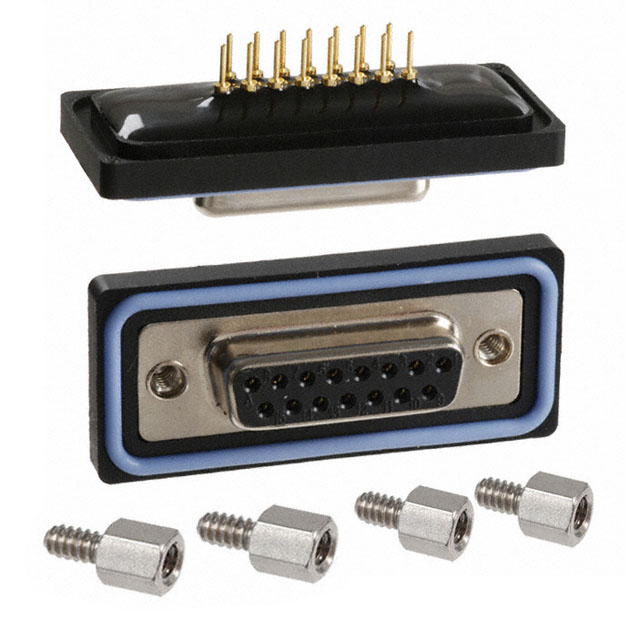

 Assmann WSW Components | Glass Filled Nylon Polyamide (PA) | Black | Copper Alloy | Solder | Female Screwlock Mating Side | 2 | Receptacle Female Sockets | 15 | Signal | 2 | Gold | Panel Mount Through Hole | D-Sub | IP67 - Dust Tight Waterproof | ||||||||||||

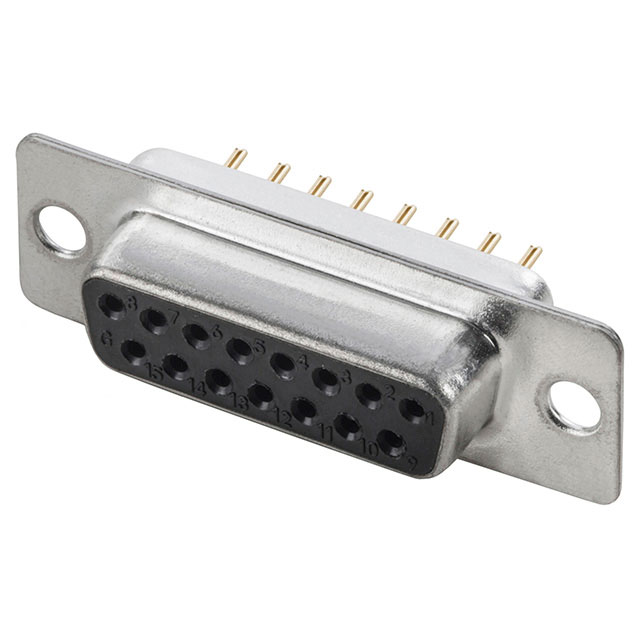

 Assmann WSW Components | 250 VAC | Polybutylene Terephthalate (PBT) Glass Filled | Black | Copper Alloy | -55 C | 105 ░C | Solder | Housing/Shell (Unthreaded) | UL94 V-0 | 2 | Receptacle Female Sockets | 15 | Signal | 3 A | Flash | 2 | Gold | Through Hole | D-Sub | |||||||

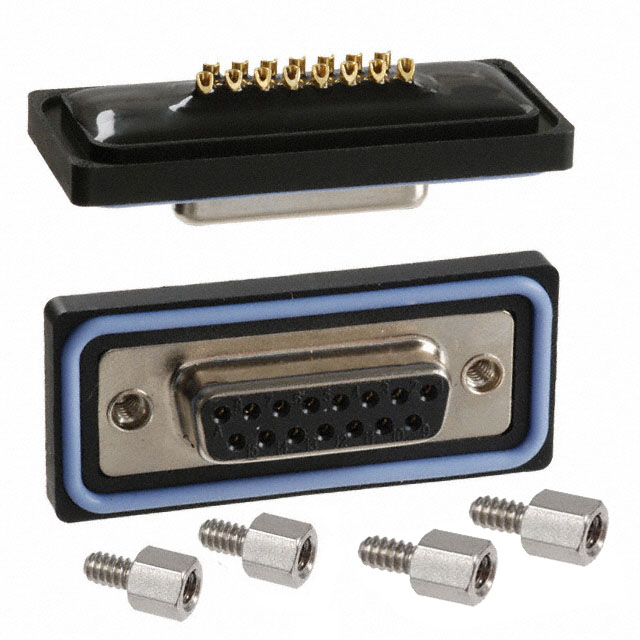

 Assmann WSW Components | Glass Filled Nylon Polyamide (PA) | Black | Copper Alloy | Female Screwlock Mating Side | 2 | Receptacle Female Sockets | 15 | Signal | 2 | Gold | Panel Mount | D-Sub | IP67 - Dust Tight Waterproof | 26 AWG | 22 AWG | |||||||||||
 Assmann WSW Components | 250 V | Polybutylene Terephthalate (PBT) Glass Filled | Black | Copper Alloy | -20 ░C | 85 °C | Solder | Housing/Shell (Unthreaded) | UL94 V-0 | 2 | Filter | Receptacle Female Sockets | 15 | Signal | 3 A | Flash | 2 | Gold | Through Hole | D-Sub | Steel | |||||

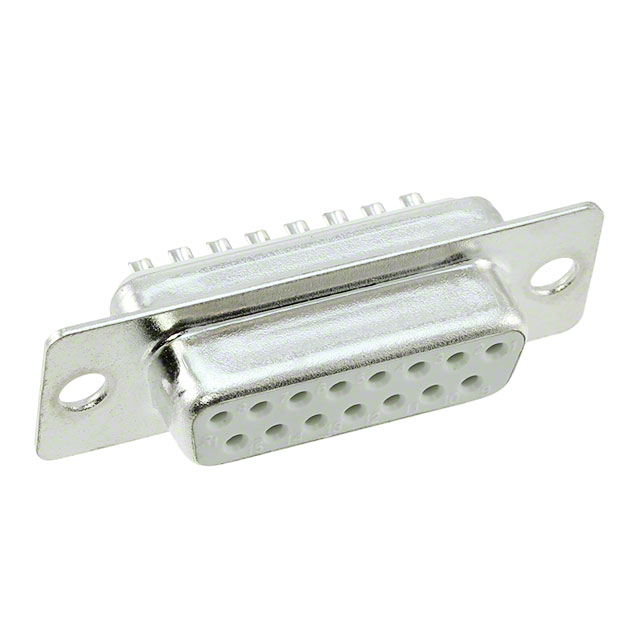

 Assmann WSW Components | 250 V | Polybutylene Terephthalate (PBT) Glass Filled | White | Brass | -55 C | 105 ░C | Housing/Shell (Unthreaded) | UL94 V-0 | 2 | Receptacle Female Sockets | 15 | Signal | 3 A | Flash | 2 | Gold | Free Hanging (In-Line) | D-Sub | Steel |
