TMS1T Series

Catalog

SWITCH TOGGLE SPDT 0.4VA 20V

Part	Circuit	Actuator Type	Panel Cutout Dimensions [diameter]	Illumination	Switch Function	Mounting Type	Actuator Length [x]	Current Rating (Amps)	Bushing Thread	Features	Voltage Rating - DC	Termination Style	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity AMP Connectors TMS1T4B5M2RE	SPDT	Standard Round	0.25 in	Non-Illuminated	On-On	Panel Mount	10.41 mm	0.4 VA	1/4-40	Process Sealed	20 V	PC Pin	20 V	85 °C	-30 ░C

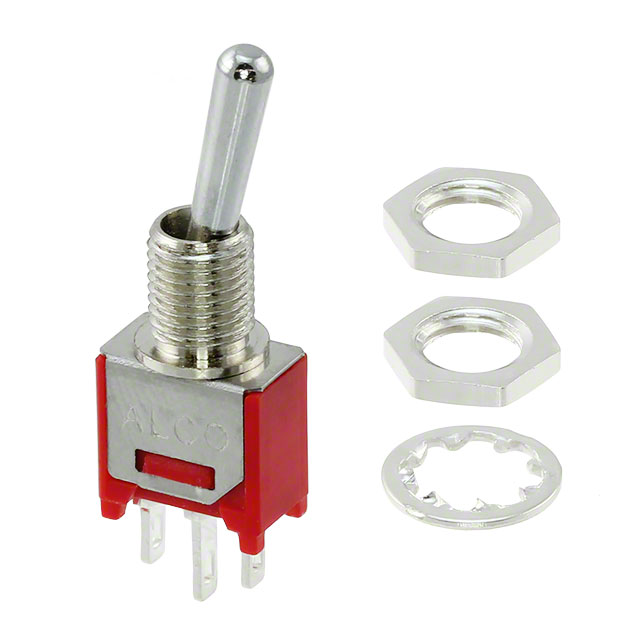

TE Connectivity AMP Connectors TMS1T1B1M1QE	SPDT	Standard Round	4.95 mm	Non-Illuminated	On-On	Panel Mount	9.4 mm	3 A	10-48	Process Sealed	28 V	Solder Lug	120 V	85 °C	-30 ░C
TE Connectivity AMP Connectors TMS1T5B2M7RE	SPDT	Standard Round		Non-Illuminated	On-On	Right Angle Through Hole Vertical	7.48 mm	0.4 VA	Unthreaded	Process Sealed	20 V	PC Pin	20 V	85 °C	-30 ░C
TE Connectivity AMP Connectors TMS1T5B2M6RE	SPDT	Standard Round		Non-Illuminated	On-On	Right Angle Through Hole	7.48 mm	0.4 VA	Unthreaded	Process Sealed	20 V	PC Pin	20 V	85 °C	-30 ░C

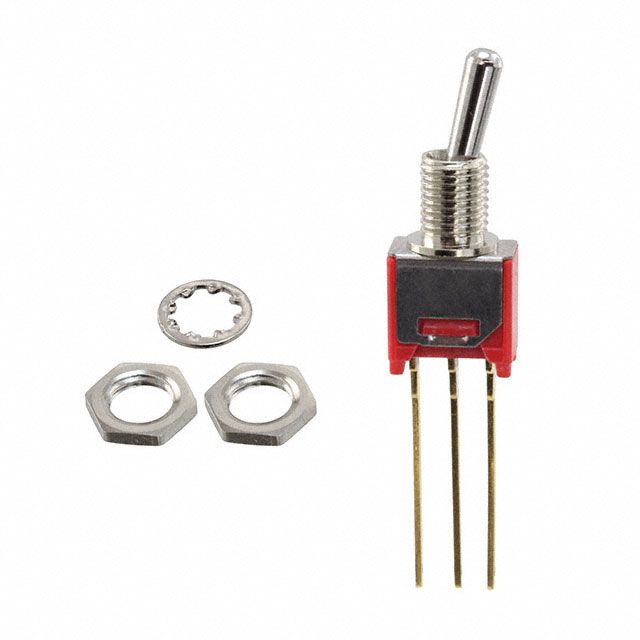

TE Connectivity AMP Connectors TMS1T3B1M5RE	SPDT	Standard Round	4.95 mm	Non-Illuminated	On-On	Panel Mount		0.4 VA	10-48	Process Sealed	20 V	Wire Wrap	20 V	85 °C	-30 ░C
TE Connectivity AMP Connectors TMS1T3B1M1QE	SPDT	Standard Round	4.95 mm	Non-Illuminated	On-On	Panel Mount		3 A	10-48	Process Sealed	28 V	Solder Lug	120 V	85 °C	-30 ░C
