QBLP601 Series

Catalog

LED WHITE DIFFUSED 0603 SMD

Part	Viewing Angle	Configuration	Size / Dimension [x]	Size / Dimension [y]	Lens Transparency	Lens Size [y]	Lens Size [x]	Mounting Type	Lens Style	Package / Case	Package / Case	Current - Test	Millicandela Rating	Color	Voltage - Forward (Vf) (Typ)	Lens Color	Height (Max) [z]	Wavelength - Dominant	Wavelength - Peak	Type	Radiant Intensity (Ie) Min @ If [Min]	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Current - DC Forward (If) (Max)	Wavelength	Lens Size [diameter]	Height (Max) [z]

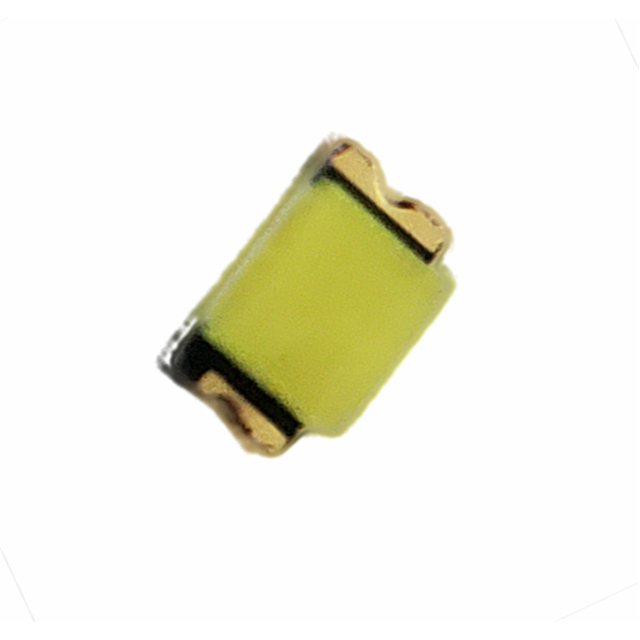

QT Brightek (QTB) QBLP601-IW-2897	140 °	Standard	1.6 mm	0.8 mm	Diffused	0.8 mm	1.1 mm	Surface Mount	Rectangle with Flat Top	1608 Metric	0603	20 mA	900 mcd	White	3 V	Yellow	0.7 mm

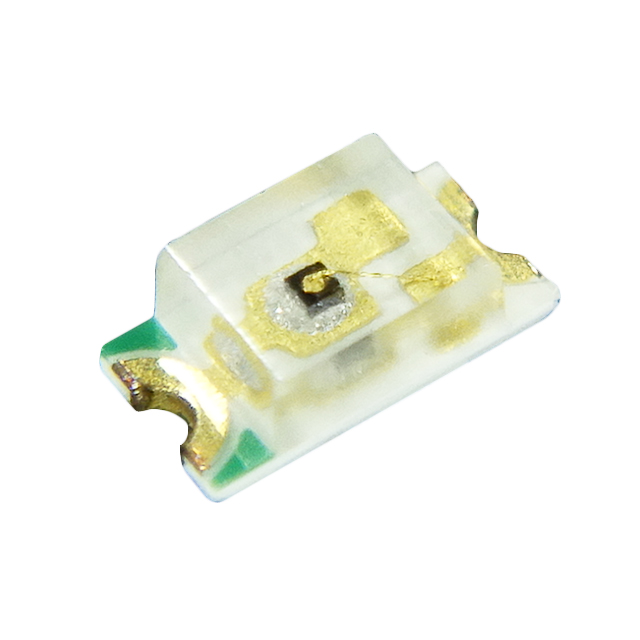

QT Brightek (QTB) QBLP601-R35	140 °	Standard	1.6 mm	0.8 mm	Clear	0.8 mm	1.1 mm	Surface Mount	Rectangle with Flat Top	1608 Metric	0603	5 mA	26 mcd	Red	1.9 V	Colorless	0.7 mm	631 nm	639 nm

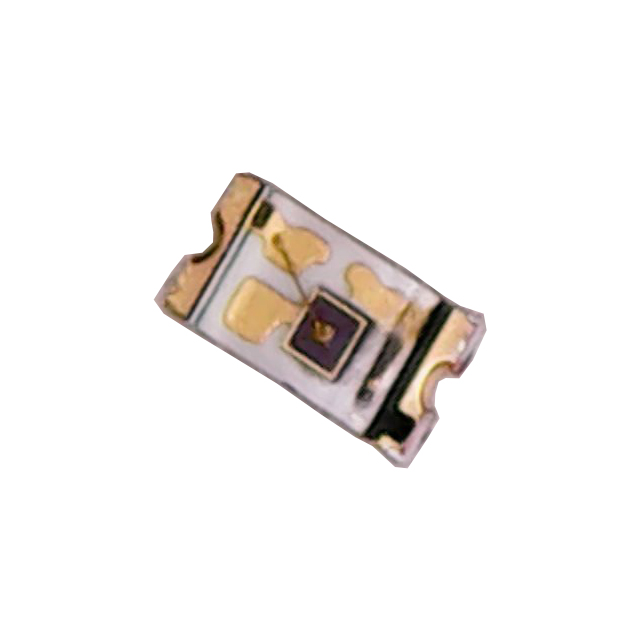

QT Brightek (QTB) QBLP601-IR4	140 °							Surface Mount		1608 Metric	0603				1.8 V					Infrared (IR)	0.6 mW/sr	Top View	80 °C	-40 C	50 mA
QT Brightek (QTB) QBLP601-2IR4	140 °							Surface Mount		1608 Metric	0603				1.6 V					Infrared (IR)	0.2 mW/sr	Top View	80 °C	-40 C	50 mA	765 nm
QT Brightek (QTB) QBLP601-IR3-2897	140 °							Surface Mount		1608 Metric	0603				1.4 V					Infrared (IR)	0.3 mW/sr	Top View	80 °C	-40 C	50 mA	850 nm
QT Brightek (QTB) QBLP601-YG1-2943	140 °	Standard	1.6 mm	0.8 mm	Diffused	0.8 mm	1.1 mm	Surface Mount	Rectangle with Flat Top	1608 Metric	0603	20 mA	15 mcd	Green	2 V	White	0.7 mm	572 nm

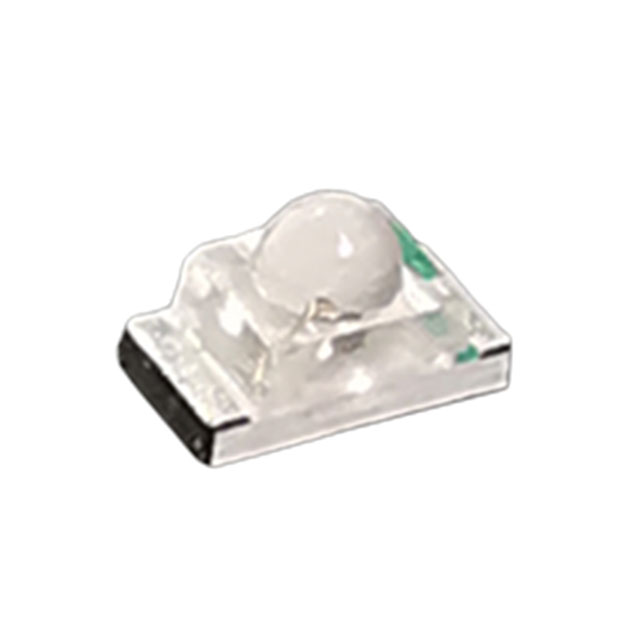

QT Brightek (QTB) QBLP601D-AG	35 °	Standard	1.6 mm	0.8 mm	Clear			Surface Mount	Round with Domed Top	1608 Metric	0603	20 mA	130 mcd	Yellow-Green	2 V	Colorless		573 nm									0.7 mm	1.05 mm

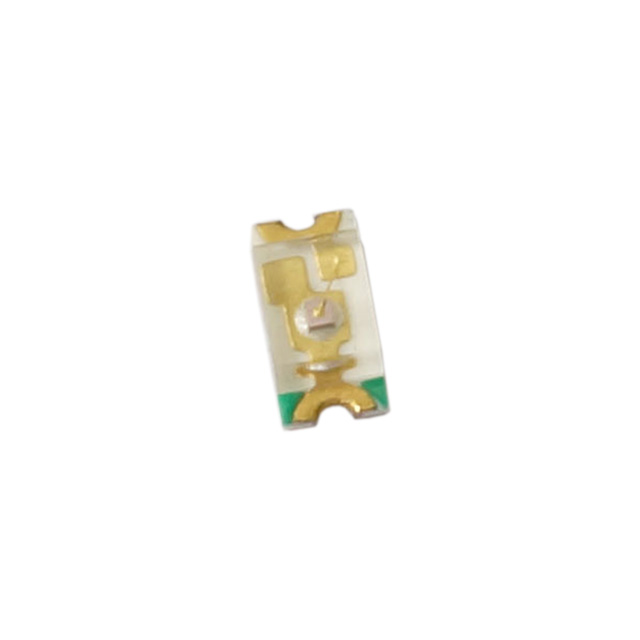

QT Brightek (QTB) QBLP601-R5	140 °	Standard	1.6 mm	0.8 mm	Clear	0.8 mm	1.1 mm	Surface Mount	Rectangle with Flat Top	1608 Metric	0603	5 mA	33 mcd	Red	1.8 V	Colorless	0.7 mm	625 nm	633 nm
QT Brightek (QTB) QBLP601-R3-2943	140 °	Standard	1.6 mm	0.8 mm	Diffused	0.8 mm	1.1 mm	Surface Mount	Rectangle with Flat Top	1608 Metric	0603	20 mA	90 mcd 105 mcd	Red	2 V	White	0.7 mm	633 nm	639 nm
QT Brightek (QTB) QBLP601D-IG	35 °	Standard	1.6 mm	0.8 mm	Clear			Surface Mount	Round with Domed Top	1608 Metric	0603	20 mA	2000 mcd	Green	3.2 V	Colorless		520 nm	515 nm								0.7 mm	1.05 mm
