MVSR-20-17-23 Series

MVSR-20 17-23

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

MVSR-20 17-23

Part	Current - Switching	Mounting Type	Capacitance	Length - Overall [x]	Length - Overall [x]	Release Time	Voltage - Switching AC	Power - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Type	Circuit	Operate Range [Max]	Operate Range [Min]	Termination Style	Operate Time	Current - Carry	Size - Body [diameter]	Size - Body [x]	Size - Body [diameter]	Size - Body [x]	Voltage - Switching DC
Littelfuse/Commercial Vehicle Products MVSR-20-17-23	350 mA 500 mA	Through Hole	0.2 pF	2.235 in	56.77 mm	0.3 ms	265 V	10 W	-103 °F	125 °C	Glass Body Reed	SPST-NO	23 AT	17	Axial	750 µs	1.3 A	2.66 mm	19.69 mm	0.105 in	0.775 in	1000 V

Catalog

MVSR-20 17-23

Key Features

• Miniature normally open switch

• Capable of switching 1000Vdc at 1mA or 0.5A up to 10W

• Minimum breakdown voltage 2000Vdc

• Available sensitivity range 17-38 AT

Description

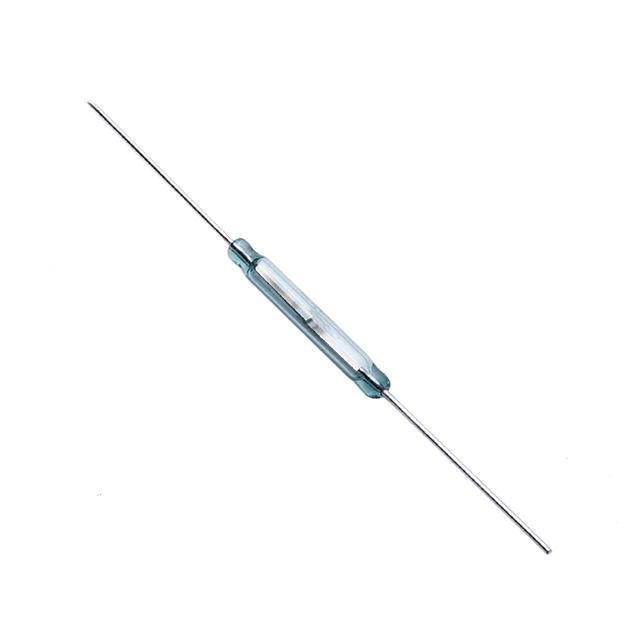

The MVSR-20 Reed Switch is a miniature, normally open switch with a 19.69mm long x 2.66mm diameter (0.775" x 0.105") glass envelope, capable of high voltage switching up to 1kVdcat 1ma. It has high insulation resistance of 10^10 ohms minimum and contact resistance less than 100 milli-ohms.
