DFK-MSTB Series

Pluggable Terminal Blocks 15 Pos 5mm pitch Feed Through Header

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks 15 Pos 5mm pitch Feed Through Header

Catalog

Pluggable Terminal Blocks 15 Pos 5mm pitch Feed Through Header

Part	Number of Levels	Pitch	Pitch	Front Panel Wire Connection	Color	Panel Mount Type	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Voltage - UL	Current - UL	Positions Per Level	Rear Panel Wire Connection	Rear Panel Wire Connection	Rear Panel Wire Connection	Width [x]	Width [x]	Width [y]	Width [y]	Features
Phoenix Contact 0710154	1	0.197 in	5 mm	Header Male Pins	Green	Screw Mount - Front Flange	4 mm	0.5 mm	0.02 in	0.157 in	300 V	10 A	15	Quick Connect Solder Eyelet	0.11 "	2.8 mm	95 mm	3.74 in

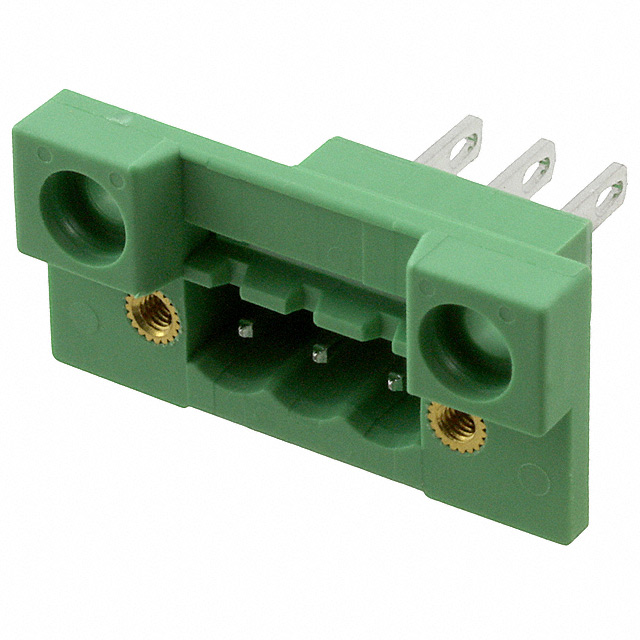

Phoenix Contact 0710031	1	0.197 in	5 mm	Header Male Pins	Green	Screw Mount - Front Flange	4 mm	0.5 mm	0.02 in	0.157 in	300 V	10 A	3	Quick Connect Solder Eyelet	0.11 "	2.8 mm			1.378 "	35 mm
Phoenix Contact 1892916	1	0.197 in	5 mm	Header Male Pins	Black	Screw Mount - Front Flange	4 mm	0.5 mm	0.02 in	0.157 in	300 V	10 A	2	Quick Connect Solder Eyelet	0.11 "	2.8 mm	30 mm	1.181 in			Lock Opening

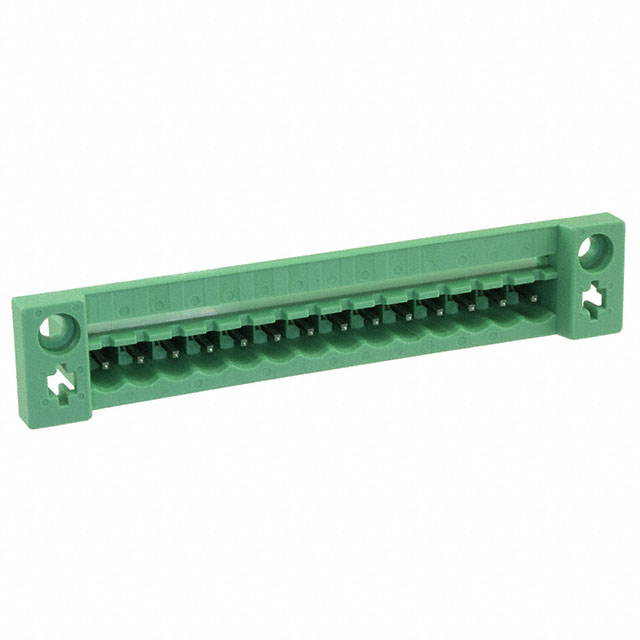

Phoenix Contact 0707358	1	0.2 in	5.08 mm	Header Male Pins	Green	Screw Mount - Front Flange	4 mm	0.5 mm	0.02 in	0.157 in	300 V		14	Quick Connect Solder Eyelet	0.11 "	2.8 mm	91.44 mm	3.6 in			Lock Opening

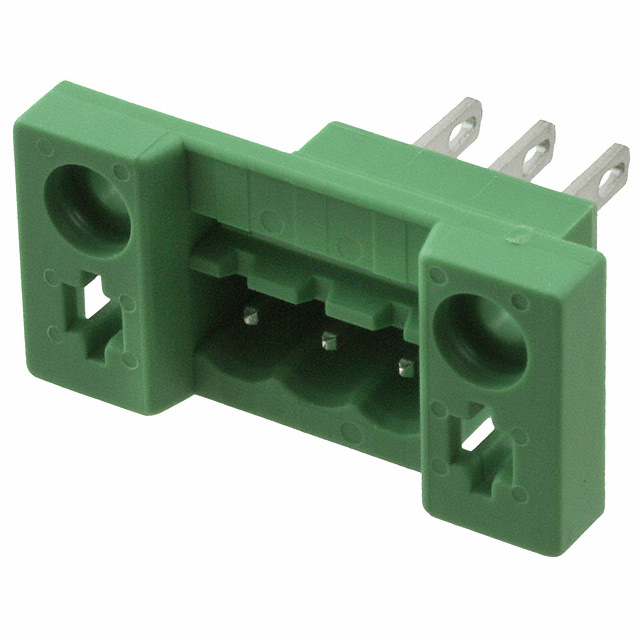

Phoenix Contact 0707112	1	0.197 in	5 mm	Header Male Pins	Green	Screw Mount - Front Flange	4 mm	0.5 mm	0.02 in	0.157 in	300 V		3	Quick Connect Solder Eyelet	0.11 "	2.8 mm			1.378 "	35 mm	Lock Opening

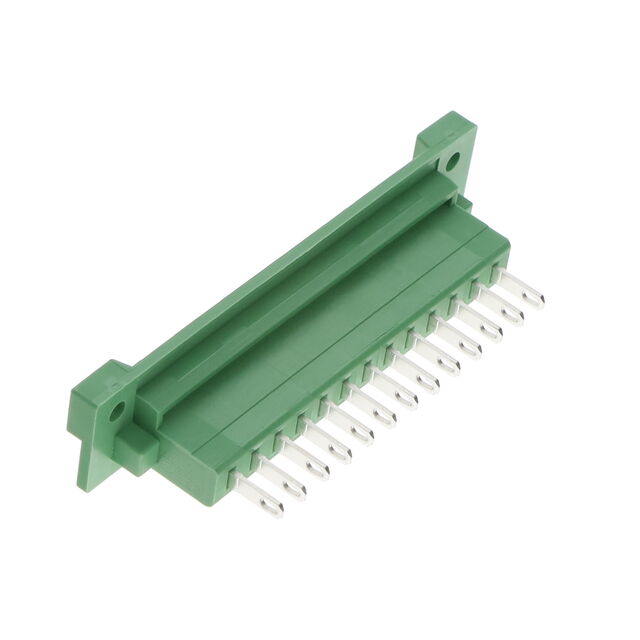

Phoenix Contact 0710138	1	0.197 in	5 mm	Header Male Pins	Green	Screw Mount - Front Flange	4 mm	0.5 mm	0.02 in	0.157 in	300 V	10 A	13	Quick Connect Solder Eyelet	0.11 "	2.8 mm	85 mm	3.346 in

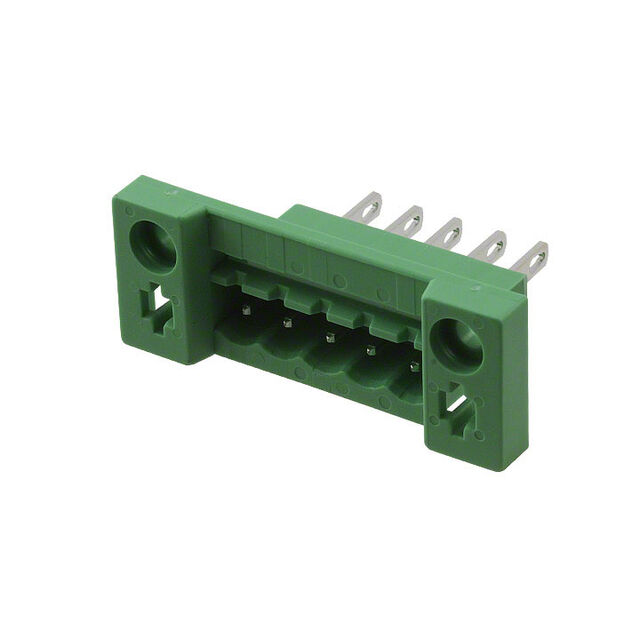

Phoenix Contact 0707277	1	0.2 in	5.08 mm	Header Male Pins	Green	Screw Mount - Front Flange	4 mm	0.5 mm	0.02 in	0.157 in	300 V		5	Quick Connect Solder Eyelet	0.11 "	2.8 mm	45.72 mm	1.8 in			Lock Opening
