BLM03HD Series

Catalog

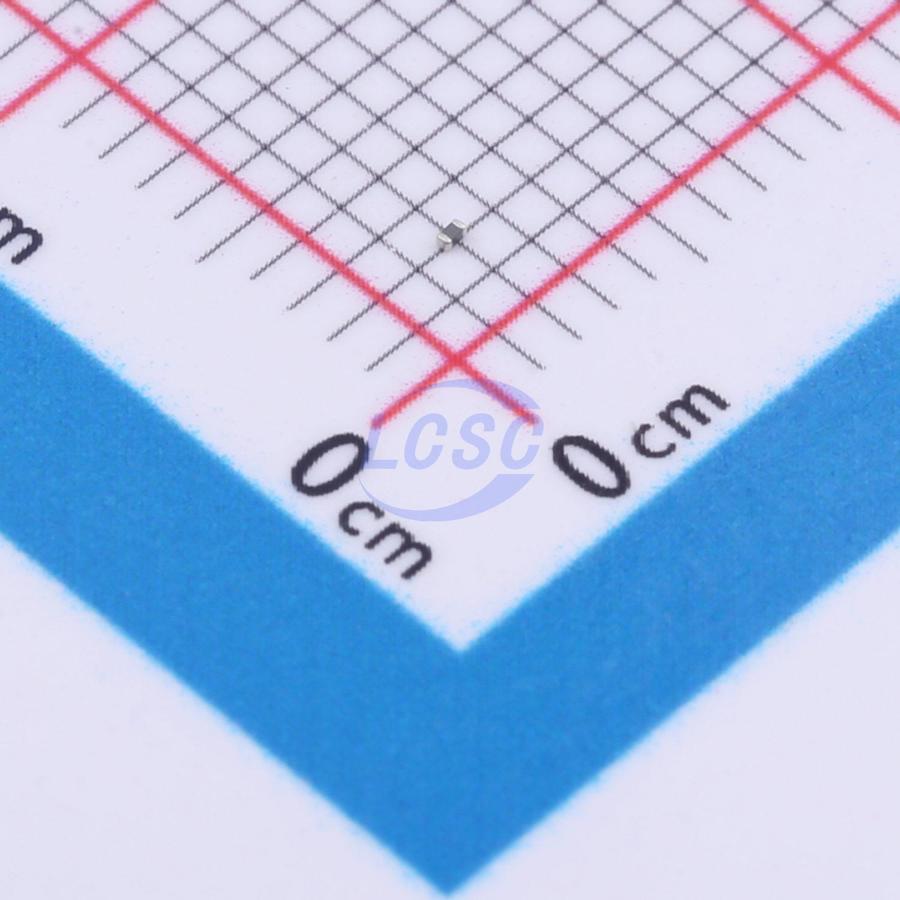

FERRITE BEAD 1.8K OHM 0201 1LN

Part	Filter Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [z]	Height (Max) [z]	Mounting Type	Number of Lines	DC Resistance (DCR) (Max)	Package / Case	Package / Case	Current Rating (Max) [Max]	Impedance @ Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	DC Resistance (DCR) (Max) [Max]	Features
Murata Electronics BLM03HD182FN1D	Signal Line	0.012 in	0.024 in	0.3 mm	0.6 mm	0.013 in	0.33 mm	Surface Mount	1	3.8 Ohm	0603 Metric	0201	100 mA	1.8 kOhms	-55 C	125 °C
Murata Electronics BLM03HD152FZ1D	Signal Line	0.012 in	0.024 in	0.3 mm	0.6 mm	0.013 in	0.33 mm	Surface Mount	1	3.1 Ohm	0603 Metric	0201	120 mA	1.5 kOhms	-55 C	125 °C	AEC-Q200
Murata Electronics BLM03HD331SN1D	Signal Line	0.012 in	0.024 in	0.3 mm	0.6 mm	0.013 in	0.33 mm	Surface Mount	1	1 Ohm	0603 Metric	0201	200 mA	330 Ohms	-55 C	125 °C
Murata Electronics BLM03HD601SZ1D
Murata Electronics BLM03HD102FZ1D	Signal Line	0.012 in	0.024 in	0.3 mm	0.6 mm	0.013 in	0.33 mm	Surface Mount	1		0603 Metric	0201	135 mA	1 kOhms	-55 C	125 °C	AEC-Q200	2.4 Ohm
Murata Electronics BLM03HD152FN1D	Signal Line	0.012 in	0.024 in	0.3 mm	0.6 mm	0.013 in	0.33 mm	Surface Mount	1	3.1 Ohm	0603 Metric	0201	120 mA	1.5 kOhms	-55 C	125 °C
Murata Electronics BLM03HD182FZ1D	Signal Line	0.012 in	0.024 in	0.3 mm	0.6 mm	0.013 in	0.33 mm	Surface Mount	1	3.8 Ohm	0603 Metric	0201	100 mA	1.8 kOhms	-55 C	125 °C	AEC-Q200
Murata Electronics BLM03HD471SZ1D
Murata Electronics BLM03HD601SN1D	Signal Line	0.012 in	0.024 in	0.3 mm	0.6 mm	0.013 in	0.33 mm	Surface Mount	1		0603 Metric	0201	150 mA	600 Ohms	-55 C	125 °C		1.7 Ohm
Murata Electronics BLM03HD102SZ1D	Signal Line	0.012 in	0.024 in	0.3 mm	0.6 mm	0.013 in	0.33 mm	Surface Mount	1		0603 Metric	0201	120 mA	1 kOhms	-55 C	125 °C	AEC-Q200	2.9 Ohm	Automotive
