XF2M Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

CONN FPC 38POS 0.5MM R/A

Part	Current Rating (Amps)	Actuator Color	Contact Finish Thickness	Contact Finish Thickness	Mating Cycles	Housing Color	Contact Finish	Flat Flex Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Height Above Board [z]	Height Above Board [z]	Locking Feature	Connector/Contact Type	Contact Material	FFC, FCB Thickness	Pitch	Pitch	Housing Material	Cable End Type	Material Flammability Rating	Number of Positions	Termination	Actuator Material	Mounting Type

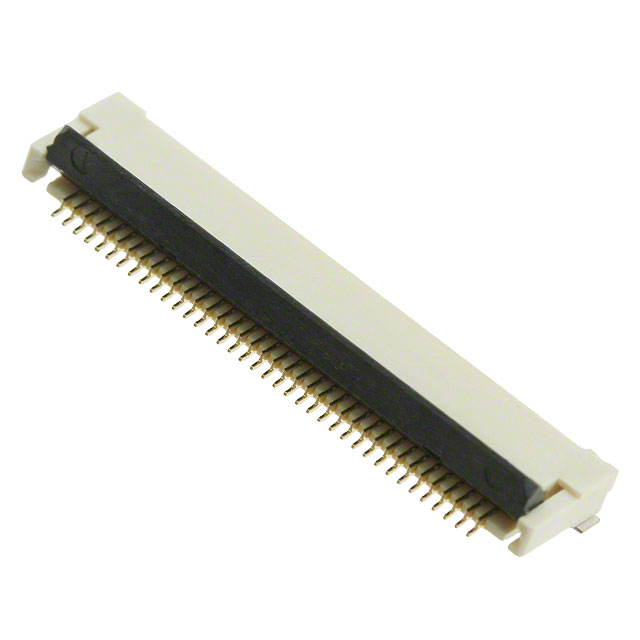

Omron Electronics Inc-EMC Div XF2M-3815-1A-R100	0.5 A	Black	5.9 µin	0.15 µm	20	Natural	Gold	FPC	85 °C	-30 ░C	50 V	0.083 in	2.1 mm	Backlock Rotary Lock	Contacts Top and Bottom	Copper Alloy	0.3 mm	0.02 "	0.5 mm	Liquid Crystal Polymer (LCP) Halogen Free	Tapered	UL94 V-0	38	Solder	Liquid Crystal Polymer (LCP) Halogen Free	Right Angle Surface Mount

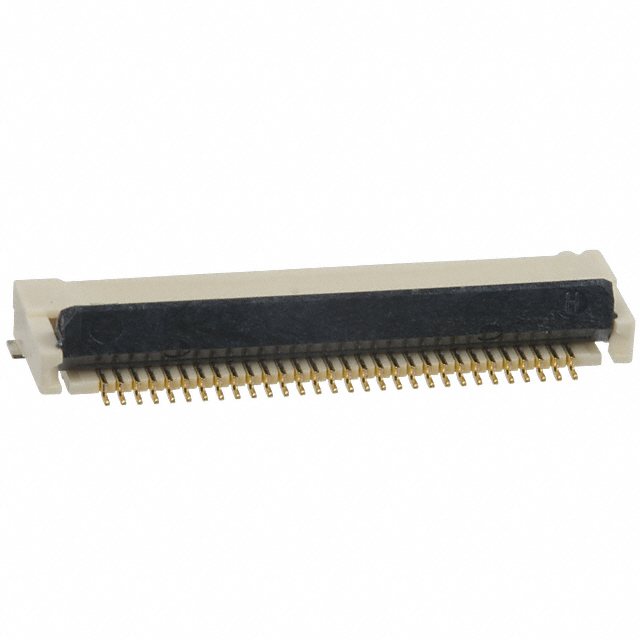

Omron Electronics Inc-EMC Div XF2M-3015-1A	0.5 A	Black	5.9 µin	0.15 µm	20	Natural	Gold	FPC	85 °C	-30 ░C	50 V	0.083 in	2.1 mm	Backlock Rotary Lock	Contacts Top and Bottom	Copper Alloy	0.3 mm	0.02 "	0.5 mm	Liquid Crystal Polymer (LCP) Halogen Free	Tapered	UL94 V-0	30	Solder	Liquid Crystal Polymer (LCP) Halogen Free	Right Angle Surface Mount
Omron Electronics Inc-EMC Div XF2M-2015-1A-R100	0.5 A	Black	5.9 µin	0.15 µm	20	Natural	Gold	FPC	85 °C	-30 ░C	50 V	0.083 in	2.1 mm	Backlock Rotary Lock	Contacts Top and Bottom	Copper Alloy	0.3 mm	0.02 "	0.5 mm	Liquid Crystal Polymer (LCP) Halogen Free	Tapered	UL94 V-0	20	Solder	Liquid Crystal Polymer (LCP) Halogen Free	Right Angle Surface Mount

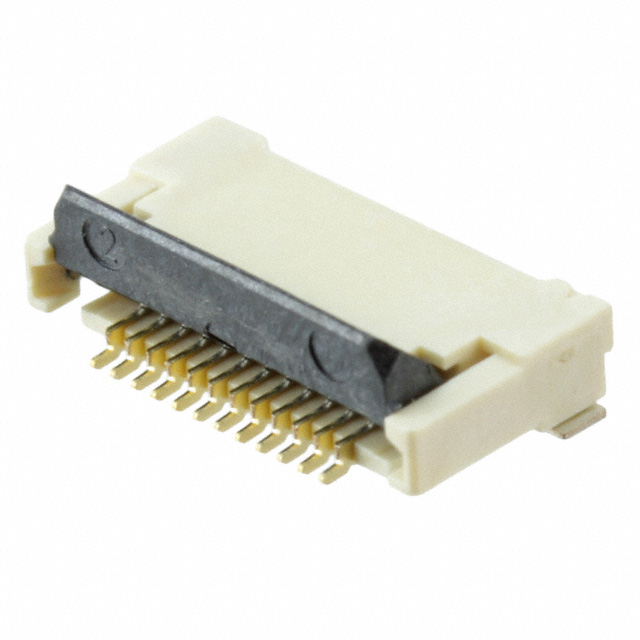

Omron Electronics Inc-EMC Div XF2M-1215-1A	0.5 A	Black	5.9 µin	0.15 µm	20	Natural	Gold	FPC	85 °C	-30 ░C	50 V	0.083 in	2.1 mm	Backlock Rotary Lock	Contacts Top and Bottom	Copper Alloy	0.3 mm	0.02 "	0.5 mm	Liquid Crystal Polymer (LCP) Halogen Free	Tapered	UL94 V-0	12	Solder	Liquid Crystal Polymer (LCP) Halogen Free	Right Angle Surface Mount

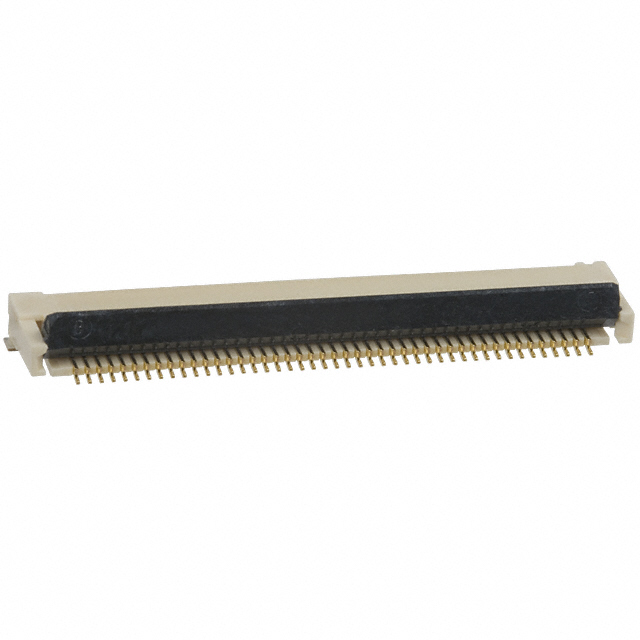

Omron Electronics Inc-EMC Div XF2M-4515-1A-R100	0.5 A	Black	5.9 µin	0.15 µm	20	Natural	Gold	FPC	85 °C	-30 ░C	50 V	0.083 in	2.1 mm	Backlock Rotary Lock	Contacts Top and Bottom	Copper Alloy	0.3 mm	0.02 "	0.5 mm	Liquid Crystal Polymer (LCP) Halogen Free	Tapered	UL94 V-0	45	Solder	Liquid Crystal Polymer (LCP) Halogen Free	Right Angle Surface Mount
Omron Electronics Inc-EMC Div XF2M-3515-1A	0.5 A	Black	5.9 µin	0.15 µm	20	Natural	Gold	FPC	85 °C	-30 ░C	50 V	0.083 in	2.1 mm	Backlock Rotary Lock	Contacts Top and Bottom	Copper Alloy	0.3 mm	0.02 "	0.5 mm	Liquid Crystal Polymer (LCP) Halogen Free	Tapered	UL94 V-0	35	Solder	Liquid Crystal Polymer (LCP) Halogen Free	Right Angle Surface Mount
Omron Electronics Inc-EMC Div XF2M-4015-1A	0.5 A	Black	5.9 µin	0.15 µm	20	Natural	Gold	FPC	85 °C	-30 ░C	50 V	0.083 in	2.1 mm	Backlock Rotary Lock	Contacts Top and Bottom	Copper Alloy	0.3 mm	0.02 "	0.5 mm	Liquid Crystal Polymer (LCP) Halogen Free	Tapered	UL94 V-0	40	Solder	Liquid Crystal Polymer (LCP) Halogen Free	Right Angle Surface Mount
Omron Electronics Inc-EMC Div XF2M-1215-1A-R100	0.5 A	Black	5.9 µin	0.15 µm	20	Natural	Gold	FPC	85 °C	-30 ░C	50 V	0.083 in	2.1 mm	Backlock Rotary Lock	Contacts Top and Bottom	Copper Alloy	0.3 mm	0.02 "	0.5 mm	Liquid Crystal Polymer (LCP) Halogen Free	Tapered	UL94 V-0	12	Solder	Liquid Crystal Polymer (LCP) Halogen Free	Right Angle Surface Mount

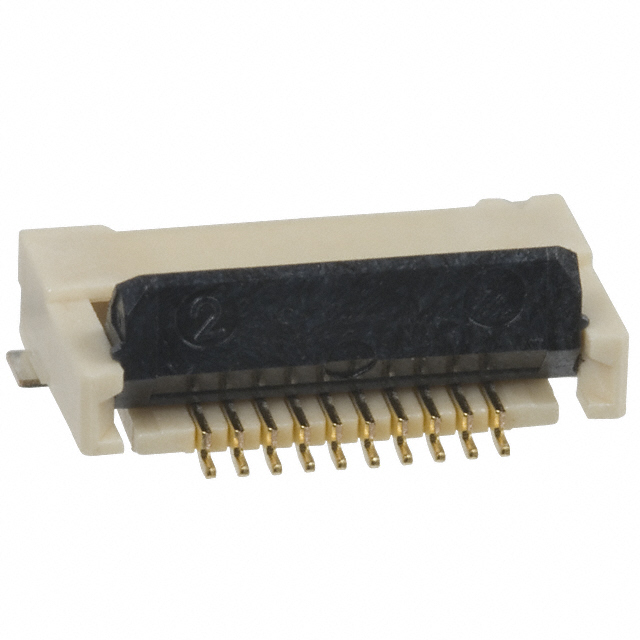

Omron Electronics Inc-EMC Div XF2M-1015-1A	0.5 A	Black	5.9 µin	0.15 µm	20	Natural	Gold	FPC	85 °C	-30 ░C	50 V	0.083 in	2.1 mm	Backlock Rotary Lock	Contacts Top and Bottom	Copper Alloy	0.3 mm	0.02 "	0.5 mm	Liquid Crystal Polymer (LCP) Halogen Free	Tapered	UL94 V-0	10	Solder	Liquid Crystal Polymer (LCP) Halogen Free	Right Angle Surface Mount

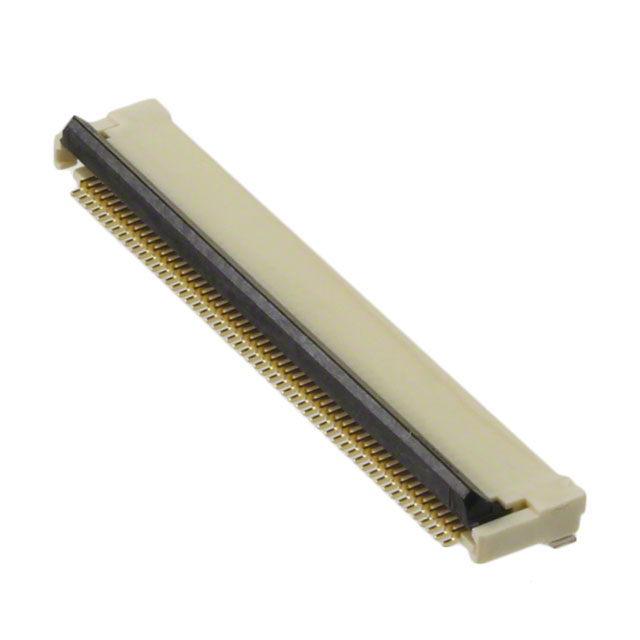

Omron Electronics Inc-EMC Div XF2M-5415-1AH	0.5 A	Black	5.9 µin	0.15 µm	20	Natural	Gold	FPC	85 °C	-30 ░C	50 V	0.083 in	2.1 mm	Backlock Rotary Lock	Contacts Top and Bottom	Copper Alloy	0.3 mm	0.02 "	0.5 mm	Liquid Crystal Polymer (LCP) Halogen Free	Tapered	UL94 V-0	54	Solder	Liquid Crystal Polymer (LCP) Halogen Free	Right Angle Surface Mount
