280581 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

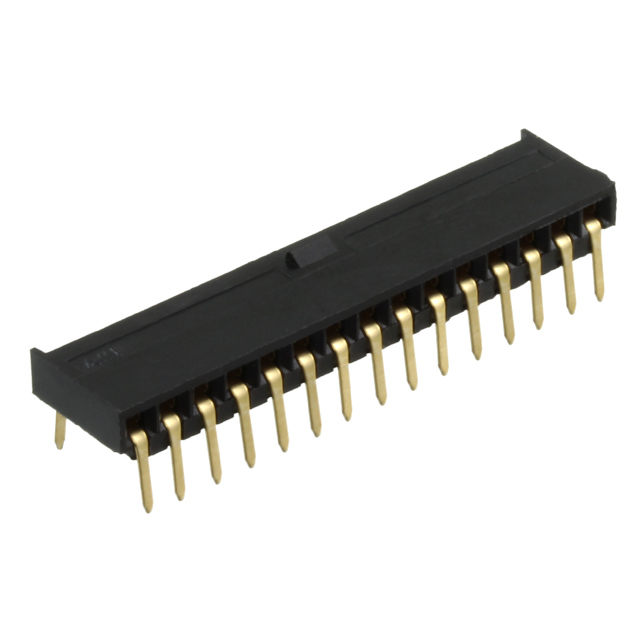

CONN RCPT 15POS 0.1 GOLD PCB R/A
| Part | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Fastening Type | Number of Positions | Contact Type | Number of Rows | Insulation Height [custom] | Insulation Height [custom] | Insulation Material | Contact Material | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Contact Finish - Post | Contact Shape | Connector Type | Contact Finish Thickness - Post | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Material Flammability Rating | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | All | 0.1 in | 2.54 mm | Friction Lock | 15 | Female Socket | 1 | 0.157 in | 4 mm | Polyester Glass Filled | Phosphor Bronze | Through Hole Right Angle | 16 Áin | 0.41 Ám | Solder | Gold | Square | Receptacle | Flash | Gold | -65 ░C | 105 ░C | Black | UL94 V-0 | 3.5 mm | 0.138 in |
