SMHV Series

Catalog

DC DC CONVERTER -5000V 1W

Part	Efficiency	Number of Outputs	Package / Case	Applications	Type	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Voltage - Input (Max) [Max]
HVM Technology, Inc. SMHV0550N	60 %	1	9-DIP Module	ITE (Commercial)	High Voltage - Non-Isolated Module	200 µA	4.5 V	Through Hole	21.6 mm	15.2 mm	0.6 "	21.6 mm	0.85 in	0.85 in	-55 C	70 °C	-5000 V	5.5 V
HVM Technology, Inc. SMHV0560	60 %	1	9-DIP Module	ITE (Commercial)	High Voltage - Non-Isolated Module	167 µA	4.5 V	Through Hole	21.6 mm	15.2 mm	0.6 "	21.6 mm	0.85 in	0.85 in	-55 C	70 °C	6000 V	5.5 V
HVM Technology, Inc. SMHV0530	60 %	1	9-DIP Module	ITE (Commercial)	High Voltage - Non-Isolated Module	333 µA	4.5 V	Through Hole	21.6 mm	15.2 mm	0.6 "	21.6 mm	0.85 in	0.85 in	-55 C	70 °C	3000 V	5.5 V
HVM Technology, Inc. SMHV0510N	60 %	1	9-DIP Module	ITE (Commercial)	High Voltage - Non-Isolated Module	1 mA	4.5 V	Through Hole	21.6 mm	15.2 mm	0.6 "	21.6 mm	0.85 in	0.85 in	-55 C	70 °C	-1000 V	5.5 V
HVM Technology, Inc. SMHV0540	60 %	1	9-DIP Module	ITE (Commercial)	High Voltage - Non-Isolated Module	250 µA	4.5 V	Through Hole	21.6 mm	15.2 mm	0.6 "	21.6 mm	0.85 in	0.85 in	-55 C	70 °C	4000 V	5.5 V
HVM Technology, Inc. SMHV05100N	60 %	1	9-DIP Module	ITE (Commercial)	High Voltage - Non-Isolated Module	100 µA	4.5 V	Through Hole	21.6 mm	15.2 mm	0.6 "	21.6 mm	0.85 in	0.85 in	-55 C	70 °C	-10000 V	5.5 V
HVM Technology, Inc. SMHV05100	60 %	1	9-DIP Module	ITE (Commercial)	High Voltage - Non-Isolated Module	100 µA	4.5 V	Through Hole	21.6 mm	15.2 mm	0.6 "	21.6 mm	0.85 in	0.85 in	-55 C	70 °C	10000 V	5.5 V
HVM Technology, Inc. SMHV0530N	60 %	1	9-DIP Module	ITE (Commercial)	High Voltage - Non-Isolated Module	333 µA	4.5 V	Through Hole	21.6 mm	15.2 mm	0.6 "	21.6 mm	0.85 in	0.85 in	-55 C	70 °C	-3000 V	5.5 V
HVM Technology, Inc. SMHV0560N	60 %	1	9-DIP Module	ITE (Commercial)	High Voltage - Non-Isolated Module	167 µA	4.5 V	Through Hole	21.6 mm	15.2 mm	0.6 "	21.6 mm	0.85 in	0.85 in	-55 C	70 °C	-6000 V	5.5 V

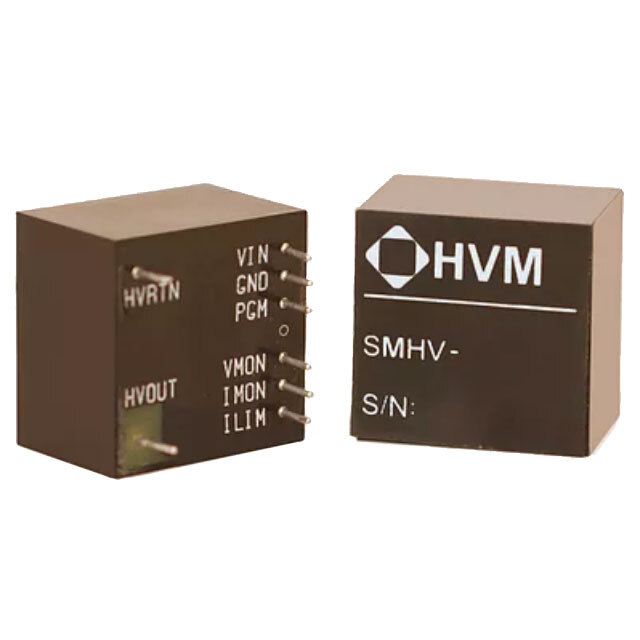

HVM Technology, Inc. SMHV0505	60 %	1	9-DIP Module	ITE (Commercial)	High Voltage - Non-Isolated Module	2 mA	4.5 V	Through Hole	21.6 mm	15.2 mm	0.6 "	21.6 mm	0.85 in	0.85 in	-55 C	70 °C	500 V	5.5 V
